Death From Below
Owner's Manual
SKAA
®
Pro Subwoofer
we developed SKAA's thousand pound gorilla sub in Canada
then we squeezed it into 34 lbs in a plasma furnace

Advertisement

loading
Need help?

Need help?

Do you have a question about the SKAA Death From Below and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dillinger Labs SKAA Death From Below

Summary of Contents for Dillinger Labs SKAA Death From Below

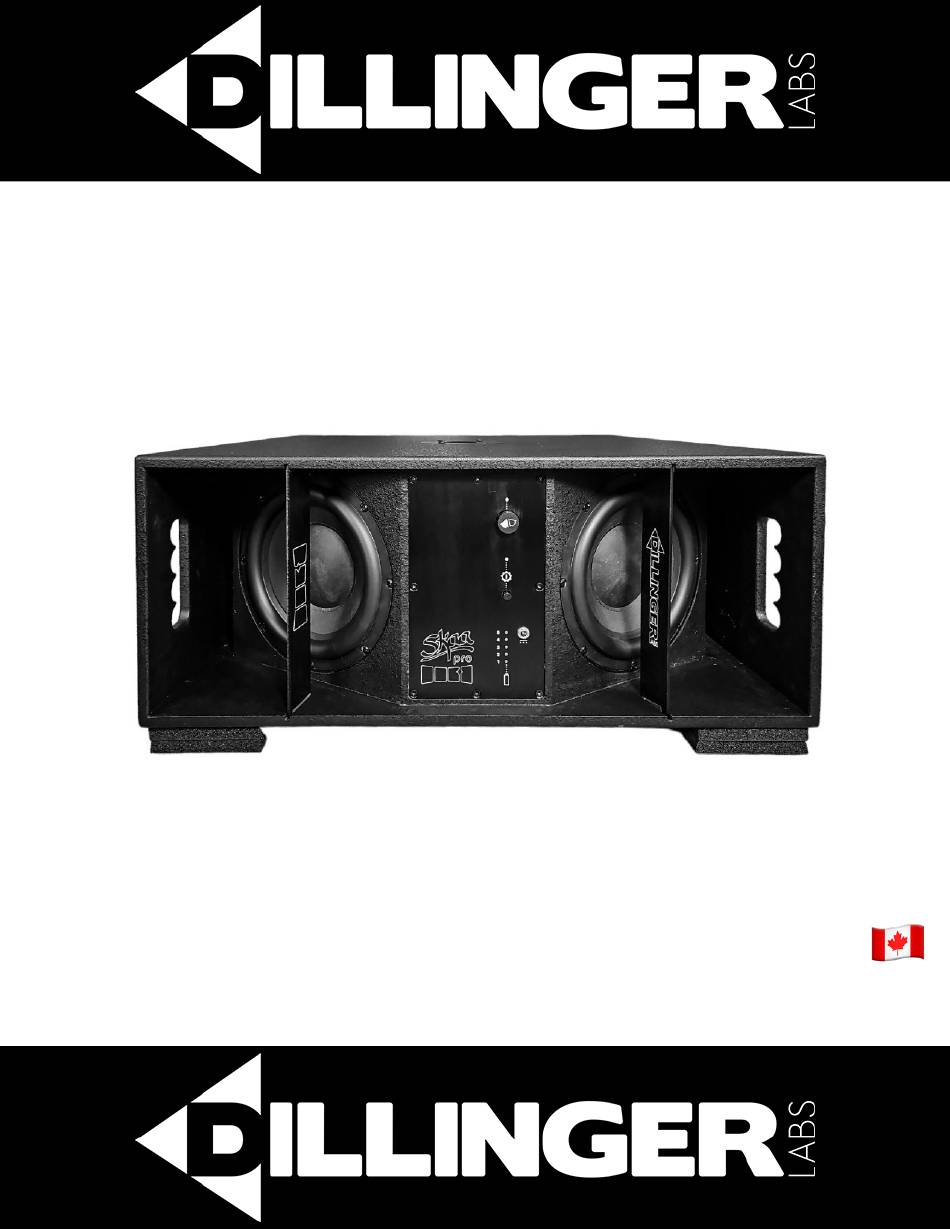

  • Page 1 Death From Below Owner’s Manual SKAA ® Pro Subwoofer we developed SKAA’s thousand pound gorilla sub in Canada then we squeezed it into 34 lbs in a plasma furnace...
  • Page 2 … Thank you for choosing Death From Below (“DFB”) by Dillinger Labs, the world’s first SKAA / SKAA Pro subwoofer for mobile PA. • Works with all SKAA Transmitters, all SKAA Pro Transmitters, and all SKAA Nadja Hubs including Soundboks 3, 4 and Go...
  • Page 3 Details … sweated Ridiculously easy 1-knob interface Each 8” driver has its own dedicated 72W amplifier Negative-weight handles — freakin’ AWESOME Massive neoprene feet eliminate wobbling...
  • Page 4 Other SKAA-based receivers like Soundboks 3, 4, and Go as well as non-SKAA powered speakers can benefit from the addition of DFB • Just add a Dillinger Labs Streetheart Receiver to any powered speaker to make it SKAA and SKAA Pro compatible •...
  • Page 5 UI Panel: Battery & Charging • Death From Below runs for up to 40 hours from a full charge using its internal battery • Many battery subs from well-known brands waste up to 20% of their battery capacity in a voltage boost You can continue to use conversion process —...
  • Page 6 UI Panel: Going Deep After you enter either EQ select mode or • Power / Gear button: Click twice to enter the EQ Audio Routing mode, turn the knob select mode clockwise/counterclockwise to navigate • Then use the Volume Knob to navigate through through the available options DFB’s five EQ presets using the orange LED Stack...
  • Page 7 The Cabinet Large rubber feet on 1 3/8” (35mm) 4 Vertical vanes protect DFB’s back wall for DFB’s drivers and speaker pole bushing safe storage and increase airflow transport 2 x 8” Low Frequency Drivers Large cutout handles for easy 1”...
  • Page 8 16. SKAA cmd App SKAA cmd (“command”) is the app that you don’t really need. Your transmitter has 4 bays and you can park a Though, once you hear about what it can do, you’ll certainly receiver or Cluster (see no.17) in each bay WANT it…...
  • Page 9 Specifications Parameter Conditions Value 12mm baltic birch with interlaced-finger box Cabinet Construction corners with heavy duty speckle spray coating 115 Wh, 12-cell Li-ION built-in battery pack Battery Capacity Normal Listening 40 Hours Run Time Full Volume 5 Hours Run Time From Empty 2 Hours Charge Time...
  • Page 10 Death From Below subwoofer. Please check our website periodically for the most recent version of this manual. Should you have any comments or questions about SKAA or Dillinger Labs products, we invite you to write to us here. Check out our YouTube channel...
  • Page 11 SKAA RECEIVER USER’S GUIDE ® Each SKAA receiver uses a Green List to remember your favourite audio sources (SKAA transmitters). A Green glowing Indicator on your receiver means you are listening to a favourite, or hunting for one. You can also explore to find new transmitters—an Amber Indicator means you are exploring for transmitters which are not on your Green List.
  • Page 12 QUESTIONS AND ANSWERS Question Answer How does the You can store up to 10 SKAA transmitters on your Green List. These are your “favourite” audio Green List work? sources. Every time you add a transmitter, it is assigned the first open spot on the Green List. When you single click the Bond Button, the receiver hunts through the Green List much like a car radio hunts for radio stations when you press seek.
  • Page 13 CONGRATULATIONS on your shiny new Death From Below Need audio cables, Subscribe to Check out the SKAA cmd receivers or adapters? SKAAsound channel app for more features: SKAAstore.com on YouTube for SKAA.com/TLC HOW-TO vids ! what you need ! support: dillingerlabs.com/contact...
  • Page 14 Setting up Soundboks Speakers to work with your DFB Hub speaker Click the button to set Soundboks’ mode to: Host In this mode the Soundboks will act as a SKAA transmitter (what we call a Hub speaker) relaying its own audio to up to 4 additional Satellite Speakers (for a total of up to 5 speakers) Satellite speaker Click the...
  • Page 15 Hub speakers have SKAA transmitters built in For example: • Soundboks 3 (in Host mode) • Soundboks 4 (in Host mode) • Soundboks Go (in Host mode)* • And many others • They all support both bluetooth and wired sources * Soundboks Go can serve as a Hub in all use cases which don’t require TRS/XLR wired input and you can always cook your own Hub …...
  • Page 16 Satellite speakers have SKAA receivers built in Satellite For example: • Soundboks 3 (in Join mode) • Soundboks 4 (in Join mode) • Soundboks Go (in Join mode) • DFB itself is a satellite speaker! • And many others and you can always grow your own Satellite … Streetheart The do-it-yourself Satellite: •...
  • Page 17 Contents Hookups Use Case 1 - 12 Music & Party 13 - 16 Deckless DJ 17 - 20 Movies, TV, Social Media & Games 21 - 30 Instruments / Live Performance 31 - 34 Studio Recording 35 - 46 47 - 54 Talk and Sing —...
