1. INSTALLATION MANUAL FOR TELESCOPIC SUPPORT PLUS

Edition 1 / SEPTEMBER 2015 / EN
INSTALLATION AND OPERATING MANUAL
AND INSTRUCTIONS FOR SAFE USE
FOR TELESCOPIC SUPPORT PLUS

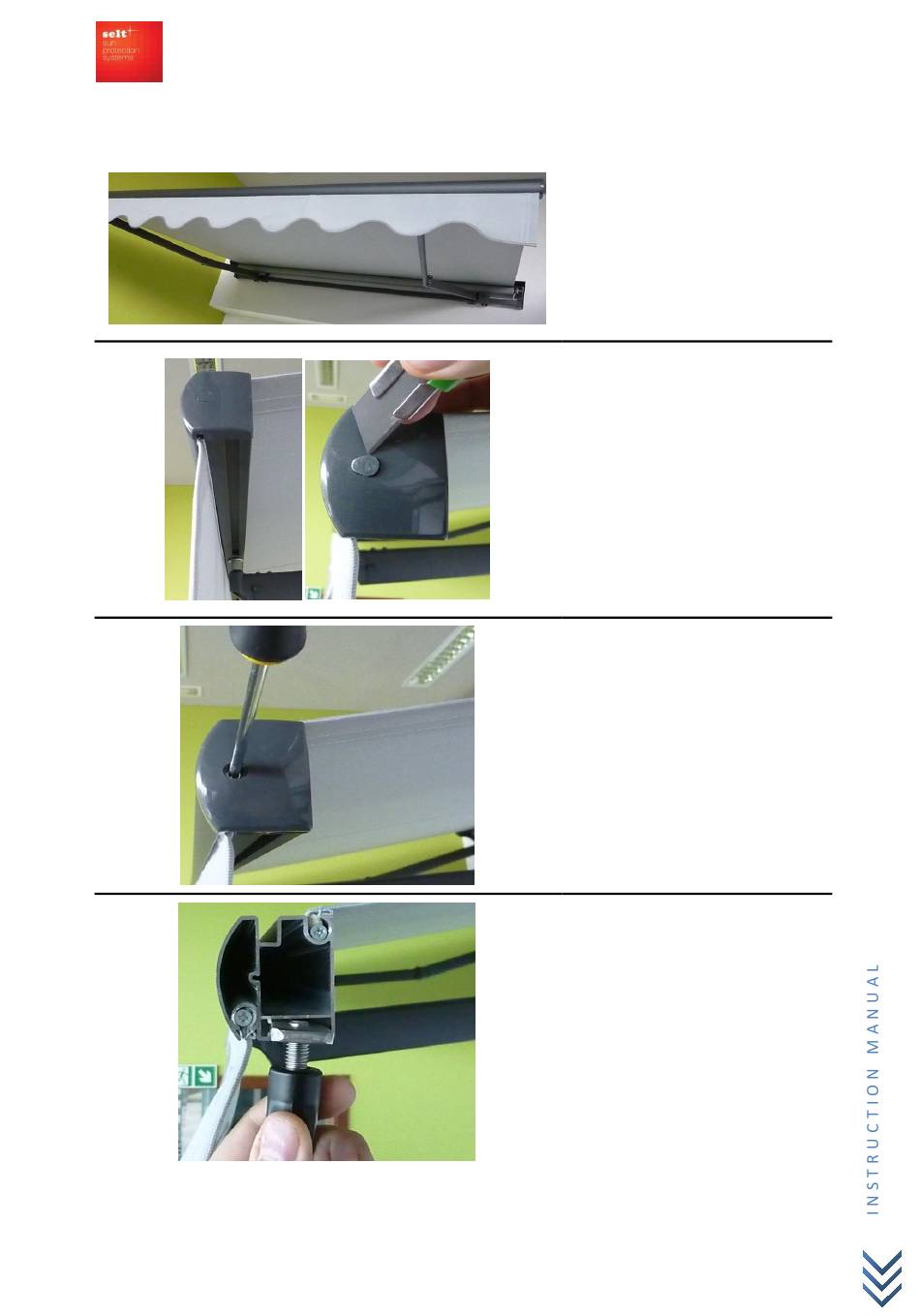

Open the awning
1.
completely.
Remove the screw covers at
2.
the ends of the front bar.
ATTENTION!
Not every type of awning has
covers for screws in the end
caps.
Unscrew the fastening
3.
screws at both ends of the
front bar and remove the
end caps by pushing them
outside.
Unscrew the eyelet bracket
4.
from the plate in order to
install the eyelet in the front
bar's guide rail.
Repeat the operation for the
second eyelet bracket.
page 1 / 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TELESCOPIC SUPPORT PLUS and is the answer not in the manual?

Questions and answers

Summary of Contents for SELT TELESCOPIC SUPPORT PLUS

  • Page 1 INSTALLATION AND OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE FOR TELESCOPIC SUPPORT PLUS 1. INSTALLATION MANUAL FOR TELESCOPIC SUPPORT PLUS Open the awning completely. Remove the screw covers at the ends of the front bar. ATTENTION! Not every type of awning has covers for screws in the end caps.
  • Page 2 INSTALLATION AND OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE FOR TELESCOPIC SUPPORT PLUS Adjust the position of the eyelet bracket in relation to the arm bracket and tighten the eyelet until resistance is felt. The recommended distance from eyelet bracket to the...
  • Page 3 INSTALLATION AND OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE FOR TELESCOPIC SUPPORT PLUS Position the footplates and lower down the telescopic supports onto them. Place the supports using a spirit level. ATTENTION! The telescopic supports must be placed vertically in the longitudinal and transverse planes.
  • Page 4 INSTALLATION AND OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE FOR TELESCOPIC SUPPORT PLUS 2. OPERATING MANUAL FOR TELESCOPIC SUPPORT PLUS 1. Open the awning completely. ATTENTION! Awning with electric drive should be secured against accidental folding. 2. Loosen the knob that locks the...
  • Page 5 Telescopic connection allows to adjust the height of the support in the range of 145 ÷ 235 cm. TELESCOPIC SUPPORT PLUS - produced by the company SELT Sp. z o. o. is intended to be used with SELT awnings.
