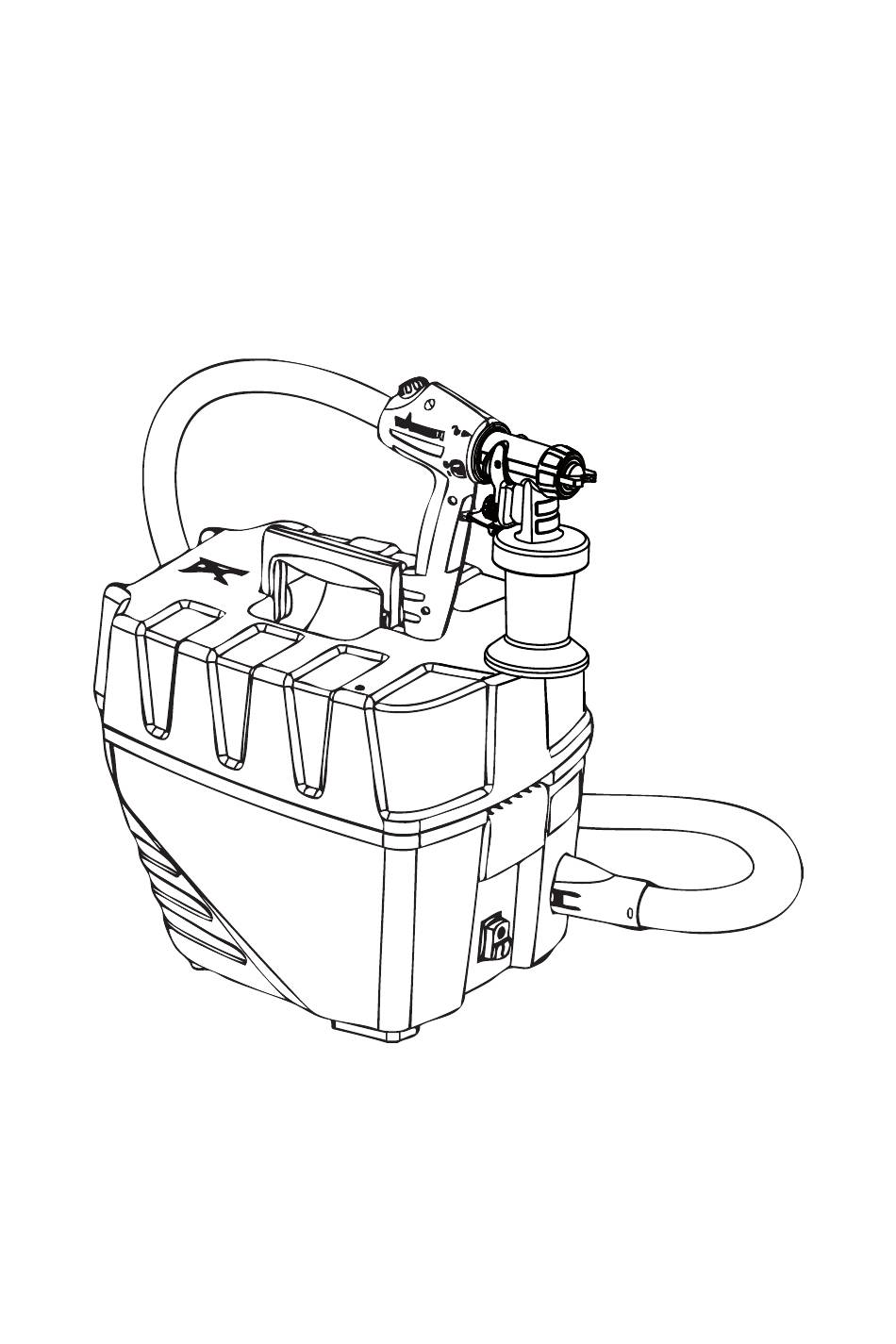

- Page 1 MaxiMist™ Pro TNT ST867 Spray Tanning System With Control Tech Electronic “Twist N Tan” Spray Gun Instruction Manual and Users Guide...
-
Page 2: Table Of Contents
Pro ST867 TNT Contents 1. Explanation of symbols used ........... . .1 2. -
Page 3: Explanation Of Symbols Used
Congratulations on purchasing a MaxiMist™ Spray Tanning System. This product has been specially designed to provide an e cient application of tanning solution products. Take a minute to read and understand how to operate your new MaxiMist™ system and you will be able to provide the perfect tan with every application. - Page 4 Pro ST867 TNT • DO NOT clean spray guns with ammable solvents. • There must be no sources of ignition such as open res, smoke of lit cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the vicinity during spraying.
- Page 5 Pro ST867 TNT • Keep cord away from heated surfaces. • NEVER operate spray tanning system if cord or plug is damaged. • As additional protection, the installation of a circuit protective device such as ALCI or GFCI is recommended. Ask your installer for advice.
-
Page 6: Processable Materials
Pro ST867 TNT Important Electrical Information Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. -
Page 7: Non-Processable Materials
Pro ST867 TNT 5. Non-processable materials All materials not approved for skin treatment Description (Fig. 1) 1) Air cap /Nozzle 2) Union nut 3) Spray attachment (3 pcs.) 4) Trigger 5) Gun handle 6) Air volume control 7) Air hose... -
Page 8: Preparation Of The Spray Area
Pro ST867 TNT 6. Preparation of the spray area • Remove all objects from the spray area if possible, to avoid contamination from overspray. • Work in a room with a smooth, easy-to-clean surface. The use of a spray booth/spray tent and tanning extraction fan is recommended. -
Page 9: Start-Up
Pro ST867 TNT 9. Start-up Before connecting to the power supply, be sure that the supply voltage is identical with the value given on the rating plate. Always lower the carry handle in the cover before opening the cover. Press the locking device on both sides to this purpose. -
Page 10: Operation
Pro ST867 TNT 14. Switch on the switch by pressing "I" at the turbine (Fig. 6). 10. Operation How the Spray Tanning system is handled, including preparation of the work place and spray tanning solution as well as the nal result, is the sole responsibility of the operator. -
Page 11: Tips On Using The Spray Tanning System
Pro ST867 TNT 11. Tips on using the spray tanning system Before commencing application, check that all necessary protective measures (nasal plugs, hair covering) have been taken. Practice on a large piece of newspaper or cotton towel rst in order to nd the optimal settings for the spray tanning solution used. -
Page 12: Cleaning The Spray Tanning System
Pro ST867 TNT 13. Cleaning the spray tanning system Clean the Spray Tanning System as required at the end of the working day. Dried spray tanning solution makes cleaning more di cult and can even damage the system. 1) Turn the system o . -
Page 13: Maintenance
Pro ST867 TNT 15) Clean the outside of the spray gun and container with a cloth soaked in water. 16) Assemble the parts again (see “Assembly”). Assembly 1) Slide the nozzle seal (Fig. 14, 1) with the groove (slot) facing forwards into the nozzle (2). -
Page 14: Storage
Pro ST867 TNT 15. Storage Store unit in a safe place after air hose ( g. 18, 1) and all accessories have been placed inside unit. 16. Spare parts This unit contains no user servicable electrical parts. DO NOT attempt to service unit yourself. -
Page 15: Correction Of Malfunctions
Pro ST867 TNT 17. Correction of Malfunctions Malfunction Cause Remedy • No spray tanning Nozzle clogged ➞ Clean • solution comes out Material volume setting ➞ Turn clockwise of the nozzle turned too far anticlockwise • No pressure build-up in ➞... - Page 16 Pro ST867 TNT Malfunction Cause Remedy • Atomization too Material volume setting ➞ Turn material volume coarse turned too far clockwise setting anticlockwise • Nozzle contaminated ➞ Clean • Too little pressure build-up in ➞ Tighten container container • Air lter heavily soiled ➞...
- Page 17 Pro ST867 TNT Technical Data Power source: 120 V ~, 60 Hz Current: 5.0 A Protection class: Sound pressure level: 80 dB (A); Uncertainty K = 4 dB Sound pressure output: 93 dB (A); Uncertainty K = 4 dB Oscillation level: <...
- Page 18 Pro ST867 TNT applicable law, the only rights and remedies shall be to obtain a replacement for any defective product. This warranty gives you speci c legal rights and you may also have other rights. What’s covered? 1. The turbine motor for 24 months.
- Page 19 Pro ST867 TNT...
- Page 20 Pro ST867 TNT Not responsible for errors and changes. Part. No. 2347197 04/2014_RS...
