AHB BREWDEVIL B40 Instruction Manual

All-in-one automaticrobrewery
Hide thumbs
Table of Contents

Advertisement

Quick Links

BREWDEVIL

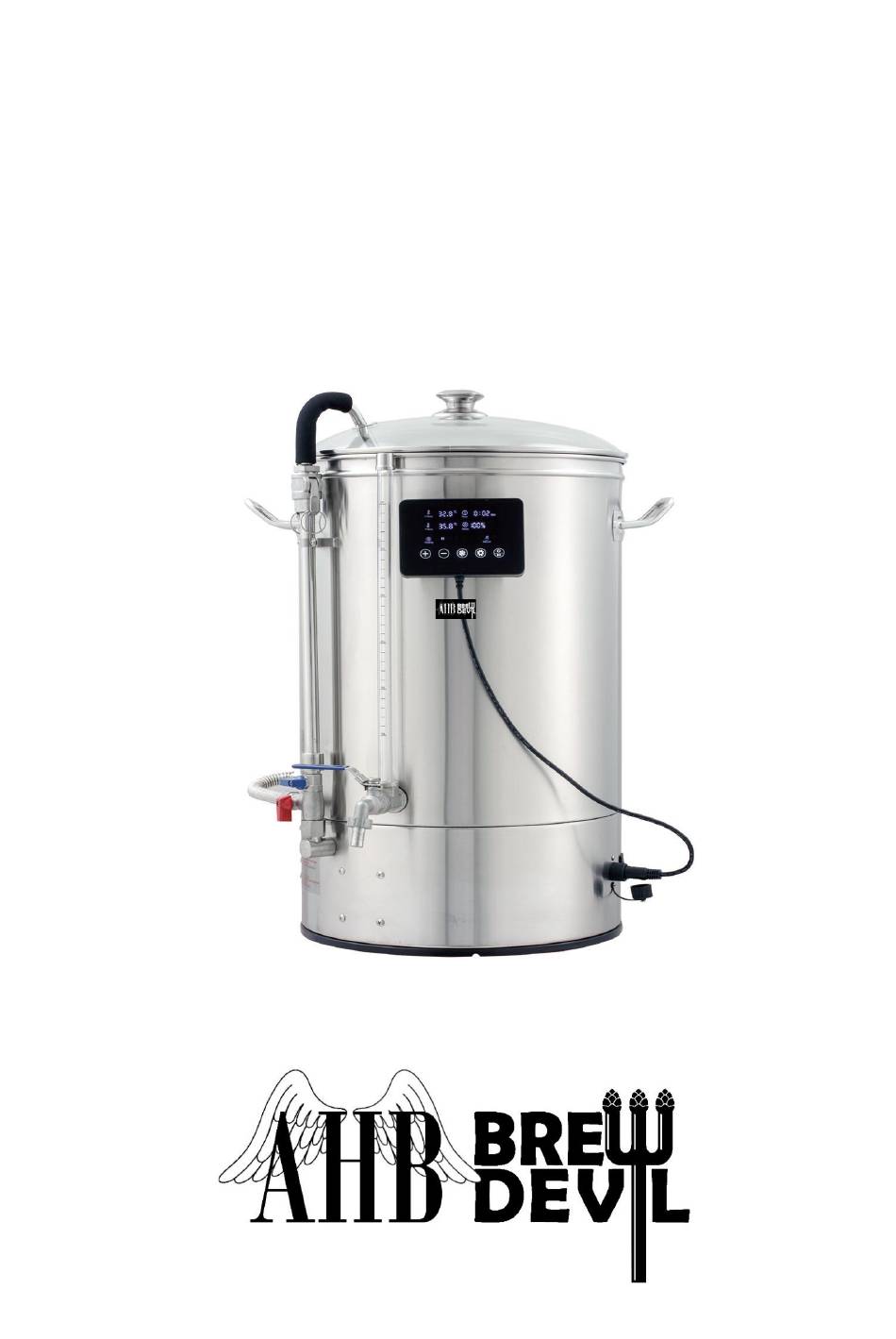

ALL-IN-ONE AUTOMICROBREWERY
INSTRUCTION MANUAL
MODEL NO.: B40 / B50 / B70
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BREWDEVIL B40 and is the answer not in the manual?

Questions and answers

Summary of Contents for AHB BREWDEVIL B40

  • Page 1 BREWDEVIL ALL-IN-ONE AUTOMICROBREWERY INSTRUCTION MANUAL MODEL NO.: B40 / B50 / B70...

  • Page 2: Table Of Contents

    Contents 1 Introduction 2 Safety Instructions 3 BrewDevil Parts 3.1. System Components 3.2. Vessel Components 3.3. Control Display Panel Signs & Buttons 4 Brewing Preparation 5 Overflow Pipe Assembly 6 Pump Setting 7 Manual Mode Setting 8 Auto Mode Setting 9 More Functions &...

  • Page 3: Introduction

    1. Introduction Thank you for selecting our state-of-the-art All-in-One Single Vessel Microbrewery System. This advanced auto-brew unit represents the pinnacle of brewing technology, featuring a host of new and improved attributes to elevate your brewing experience. Our cutting-edge system boasts powerful elements that rapidly reach boiling temperatures, while incorporating low wattage density elements to minimize scorching.

  • Page 4: Brewdevil Parts

    3. BrewDevil Parts 3.1. System Components BrewDevil Wi-Fi Microbrewery Malt pipe Coil Wort Chiller Hop Spider (*Optional) Mash Paddle (*Optional) Instruction Manual BrewDevil Insulation Jacket (*Optional) Element Cover False Bottom Malt Pipe Bottom Filter Plate 10. Malt Pipe Top Filter Plate 11.

  • Page 5: Vessel Components

    3.2. Vessel Components 1. Curved Recirculation Pipe 2. BrewDevil Microbrewery Lid 3. Recirculation Pipe Camlock Fitting 4. BrewDevil Wi-Fi Controller 5. Sight Glass 6. Anti-Burn Recirculation Valve (Red) 7. Recirculation Valve (Blue) 8. Drain Valve 9. PCB and Pump Main Switch 3.3.

  • Page 6: Brewing Preparation

    4. Brewing Preparation ⚫ Position the device on a sturdy, secure, and horizontal support structure at the appropriate height before use. ⚫ Note that a full vessel can contain boiling hot liquids and weigh up to 40kg. For transfer pumping during the brewing process, maintain a horizontal positioning of up to 50L and 50kgs.

  • Page 7: Manual Mode Setting

    7. Manual Mode Setting Initiate the System: ⚫ Turn on the switch to activate the display. The current temperature and Wi-Fi indicator will be visible on the screen. Operational Steps: Follow the steps outlined below: ⚫ Press the on/off button; the default mode is Manual mode. ⚫...

  • Page 8: More Functions & Setting Tips

    9. More Functions & Setting Tips Delay Start Function 1. Turn on the switch, display light up. 2. Press on/off button, then press setting button then enter delay start timer setting, the timer range is 0-48hours. There’s beep sound reminder when timer finishes the count down.

  • Page 9: Connecting Wi-Fi And Application Instructions

    10. Connecting Wi-Fi and Application Instructions 10.1. Download the ‘Tuya Smart App’ to mobile device 10.2. Add BrewDevil microbrewery device to the ‘Tuya Smart App’ 10.3. Open ‘Tuya Smart App’’ and 10.4. App will search for devices 10.5. When ‘BEER BREWER’ select ‘Add Device’...

  • Page 10: Using App In Manual Mode Operation

    10.9. Press the On/Off 10.10. App shows reminder prompt 10.11. Press Edit button in button in the App to setup data. Press ‘OK’ to top right to access screen to continue update machine name and other settings. Press Manual button to start 11.
  • Page 11 11.4. Select desired Power 11.5. Finally, on ‘Confirm to run’ 11.6. Machine begins running manual setting. prompt ‘OK’ to begin operation operation. ‘Current with manual settings entered Temperature’ and ‘Remaining Time’ are displayed at top of App. 11.7. Press Running 11.8.

  • Page 12: Using App In Auto Mode Operation

    12. Using App in Auto Mode Operation 12.1. Press Auto button to 12.2. Click on a step to define or 12.3. Define a target temperature, start Auto Mode operation. change each step. Up to 9 time duration and power Mashing Steps can be setting for each Mashing step.
  • Page 13 12.7. When the 1st step 12.8. Timer countdown is started 12.9. Reminder window will appear temperature is reached, for 1 Step when the timer finished final there is a window to remind step before boiling. Press adding malt and confirm to ‘Continue’...

  • Page 14: Other Specification Settings

    13. Other Specification Settings 1. Press Spec Tab in App to access Specifications settings screen. 2. Temperature Calibrate allows the machine temperature reading to be adjusted from -10 to +10 degrees C 3. Boiling Point Compensation allows boiling point definition to be adjusted down by 0 to 10 degrees C 4.

  • Page 15: Circulation Pump

    15. Circulation Pump 1. Pump Operation Guidelines: ⚫ Caution: Do not running the pump without water or it will be damaged! ⚫ Ensure there is water in the boiler before activating the pump. ⚫ Close the (blue) valve on the circulation pipe. ⚫...

  • Page 16: Bazooka Filter Assembly

    Valve Operation: Recirculation Valve (Blue) and Anti-Burn Valve (Red) Valves Closed Valves Open 16. Bazooka Filter Assembly ⚫ Screw the bazooka filter to the faucet as below image. 17. Maintenance ⚫ Post-Use Cleaning Guidelines: After each use, thorough cleaning of the machine is crucial to prevent dry ingredients from adhering to the metal and clogging the pump.

  • Page 17: Troubleshooting Tips

    18. Troubleshooting Tips Ingredients stuck in the A: Flush the pump by connecting a hose to the curve pipe pump B: Dismantle the pump to remove the ingredients. A: Put cover on for 1 to 2 mins Failing to reach 100℃ B: Do temperature correction.

This manual is also suitable for:

Brewdevil b50Brewdevil b70
