Summary of Contents for DEBIX POLYHEX BPC-iMX6ULL-03

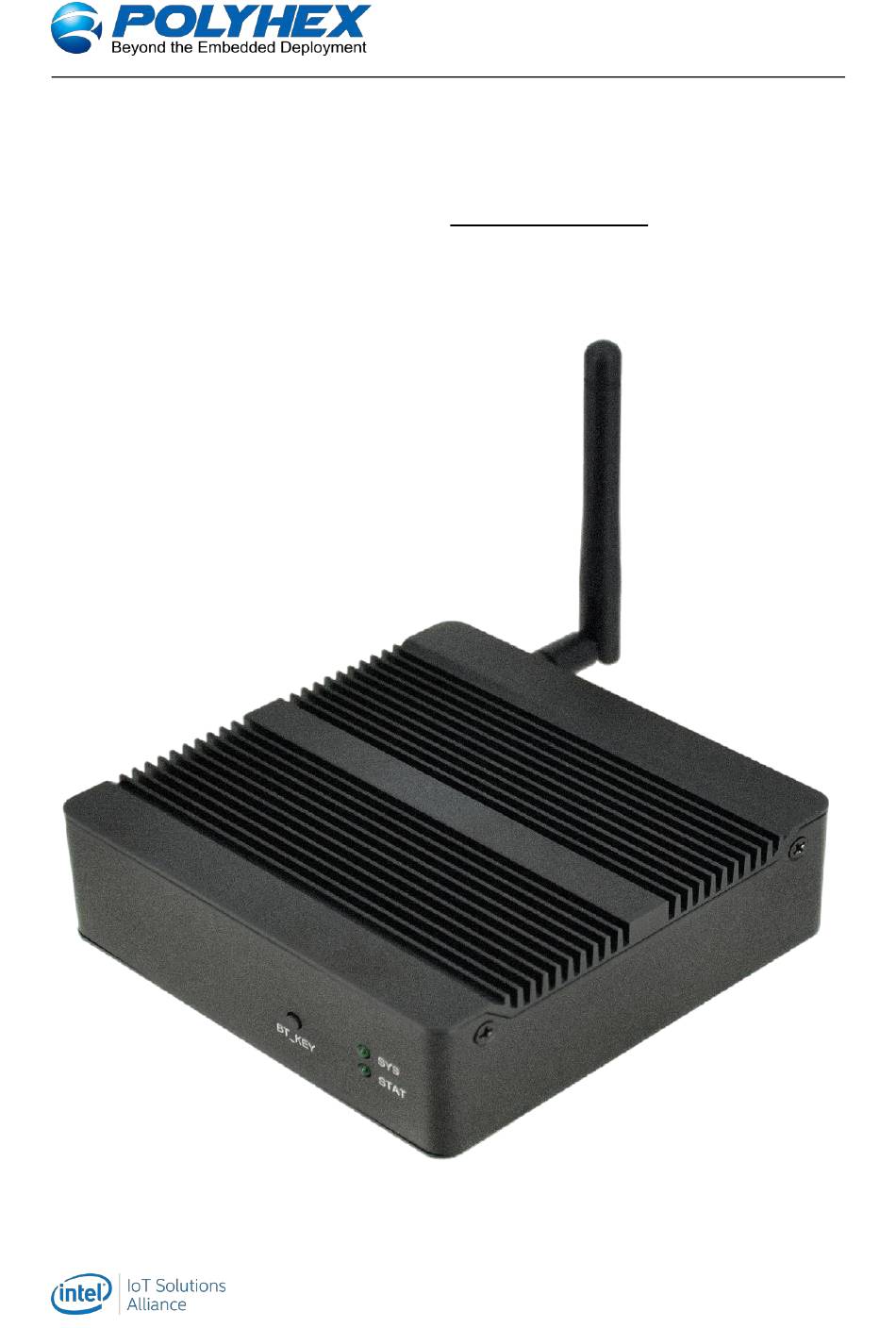

- Page 1 Polyhex Technology Co., Ltd. BPC-iMX6ULL-03 User Manual Version: V1.0 (2022-06) Editor: Polyhex Technology Company Limited (http://www.polyhex.net/)
- Page 2 Polyhex Technology Co., Ltd. Declaration of conformity This product has passed the CE test for environment specifications. This equipment has been tested and found to comply with the FCC rules. Technical support and assistance 1. Visit polyhex website http://www.polyhex.net/ where you can find the latest information about the product.
- Page 3 Polyhex Technology Co., Ltd. Safety instructions 1. Read these safety instructions carefully. 2. Keep this User Manual for later reference. 3. Disconnect this equipment from any DC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4.
-
Page 4: Table Of Contents
Polyhex Technology Co., Ltd. Contents Chapter 1 Introduction ............................5 1.1 Product introduction .........................5 1.2 Hardware specifications ........................5 1.3 Safety Precaution ..........................6 Chapter 2 Hardware Function ........................... 7 2.1 Overview ..............................7 2.2 LED Status Indicator ..........................7 2.3 Bluetooth button ..........................8 Chapter 3 wiring and installation ........................ -
Page 5: Chapter 1 Introduction
Polyhex Technology Co., Ltd. Chapter 1 Introduction 1.1 Product introduction BPC-iMX6ULL-03 is a RISC architecture platform with high performance, wide temperature and flexible design. It serves as a gateway connecting inverters and remote monitoring center in power and energy application, which plays an important role. -
Page 6: Safety Precaution
Polyhex Technology Co., Ltd. Operating Humidity: 20~95%(non-condensing) 1.3 Safety Precaution The following messages informs how to make each connection. In most cases, you will simply need to connect a standard cable. Warning! Always disconnect the power cord from your chassis whenever you are not working on it. -
Page 7: Chapter 2 Hardware Function
Polyhex Technology Co., Ltd. Chapter 2 Hardware Function 2.1 Overview The following figures show the indicators and connectors on BPC-iMX6ULL-03. Figure1 BPC-iMX6ULL-03 overview 2.2 LED Status Indicator 2.2.1 System Status Indicator Figure2 system status indicator... -
Page 8: Bluetooth Button
Polyhex Technology Co., Ltd. Status Description SYS (in control) Lighting Power is on Power is off STAT(in control) blinking System works normally System works abnormally 2.2.2 Ethernet Status Indicator Active Link Figure3 Ethernet Status Indicator Color Description Link Orange Blinking, Ethernet data being transmitted... -
Page 9: Chapter 3 Wiring And Installation
Polyhex Technology Co., Ltd. Chapter 3 wiring and installation 3.1 Wiring 3.1.1 Power Supply Wiring Figure5 Power supply wiring BPC-iMX6ULL-03 supports power input DC 5V. - Page 10 Polyhex Technology Co., Ltd. Type C connector pin assignments signal signal VBUS VBUS VBUS VBUS 3.1.2 Communication Ports 3.1.2.1 USB Connector USB Connector Pin Assignment Signal DATA- DATA+ Default: UART-MODE...
-
Page 11: Installation
Polyhex Technology Co., Ltd. 3.1.2.2 LAN Connector LAN Connector Pin Assignments Assignment Description Transmit+ Transmit- Receive+ Not used 3.2 Installation Check the BPC-iMX6ULL-03 box pc, Wi-Fi antenna and power adapter after you receive the product. Figure6 antenna... - Page 12 Polyhex Technology Co., Ltd. WIFI Antenna Figure7 BPC-iMX6ULL-03 Connect the antenna to the corresponding antenna interface Figure8 power adapter...
- Page 13 Polyhex Technology Co., Ltd. Figure 9 BPC-iMX6ULL-03 with antenna Connect the power adapter to the power interface of BPC-iMX6ULL-03 Figure 10 BPC-iMX6ULL-03 with antenna When you find that the SYS LED is lighting, and the STAT LED is blinking, it means the gateway has been powered on.
