Step#1 Remove the top drawer from the file box to fix the
Metal Bracket "A". Remove the bottom drawer by pushing
both the channel levers as directed
Step #3: After metal fixture, insert the bottom drawer by pushing
both the channel levers in opposite direction and move it on the
channel track. Insert the top drawer and fix dowel into the side
holes.
B
A

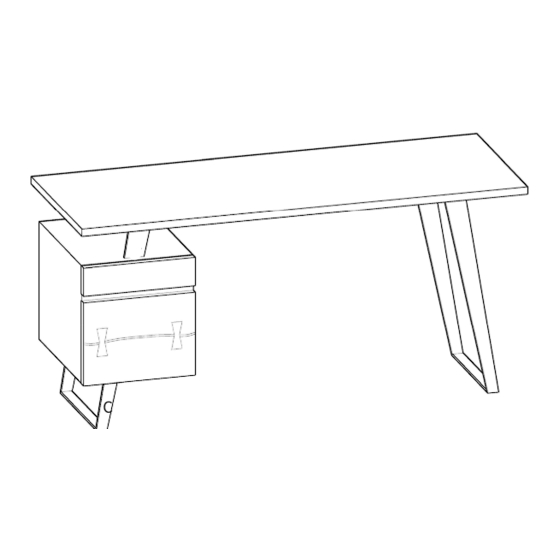

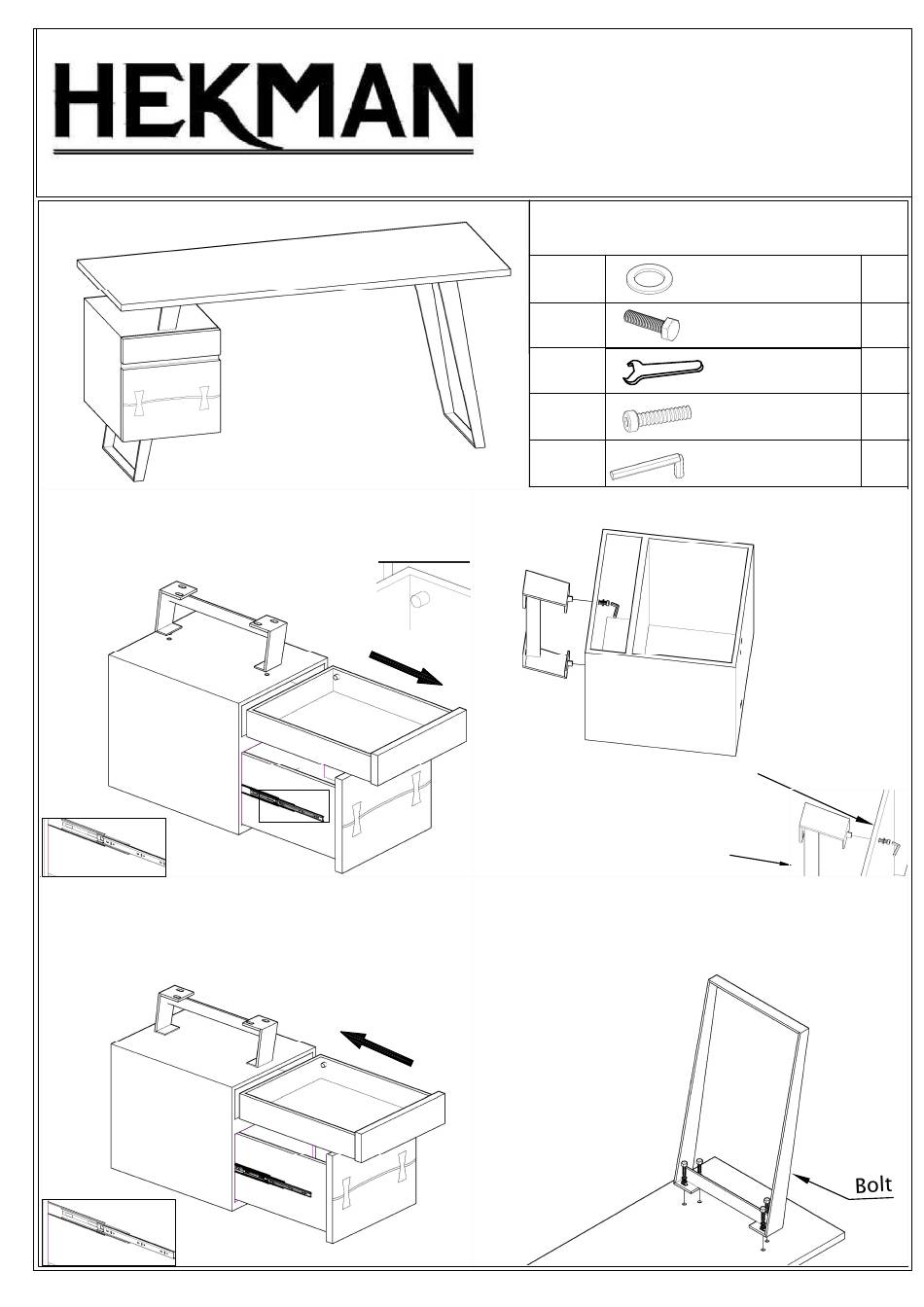

ASSEMBLY INSTRUCTION
28550 LIVE EDGE DESK
1
2
3
4
5
Step #2 Attach the metal bracket "A" to file box with Allen Bolt (4)
Tighten with Allen Key (5).
Step #4 Place Table Top face down on soft surface. Attach "B"
metal part to the table top with Bolt (2) & Flat Washer (1).
Tighten with Spanner (5)
HARDWARE LIST
Flat Washer
Bolt
Spanner
Allen Bolt
Allen key
Allen Bolt
Use Only Flat
Washer
B
14
12
01
02
01
Advertisement
Summary of Contents for HEKMAN PRODUCTS 28550
- Page 1 ASSEMBLY INSTRUCTION 28550 LIVE EDGE DESK HARDWARE LIST Flat Washer Bolt Spanner Allen Bolt Allen key Step#1 Remove the top drawer from the file box to fix the Step #2 Attach the metal bracket "A" to file box with Allen Bolt (4) Metal Bracket "A".
- Page 2 ASSEMBLY INSTRUCTION 28550 LIVE EDGE DESK Step #5 Attach "A" Storage box to the table top with Bolt (2) & Flat Washer (1). Tighten with Spanner (5) Step#6 Fix"B"metal part with the File Box through Bolt(2) & Flat Washer(1). Tighten with Spanner(5)
