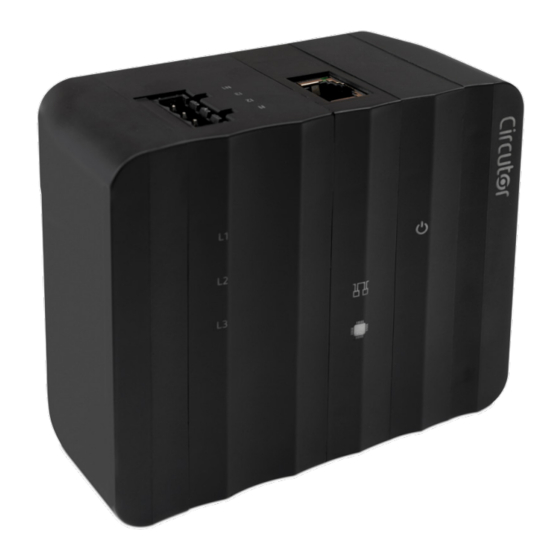

Home manager for EV charging with self-supply

Genion One

INSTRUCTION MANUAL

(M386B01-03-23B)

Table of Contents

Need help?

Do you have a question about the Genion One and is the answer not in the manual?

Questions and answers

Summary of Contents for Circutor Genion One

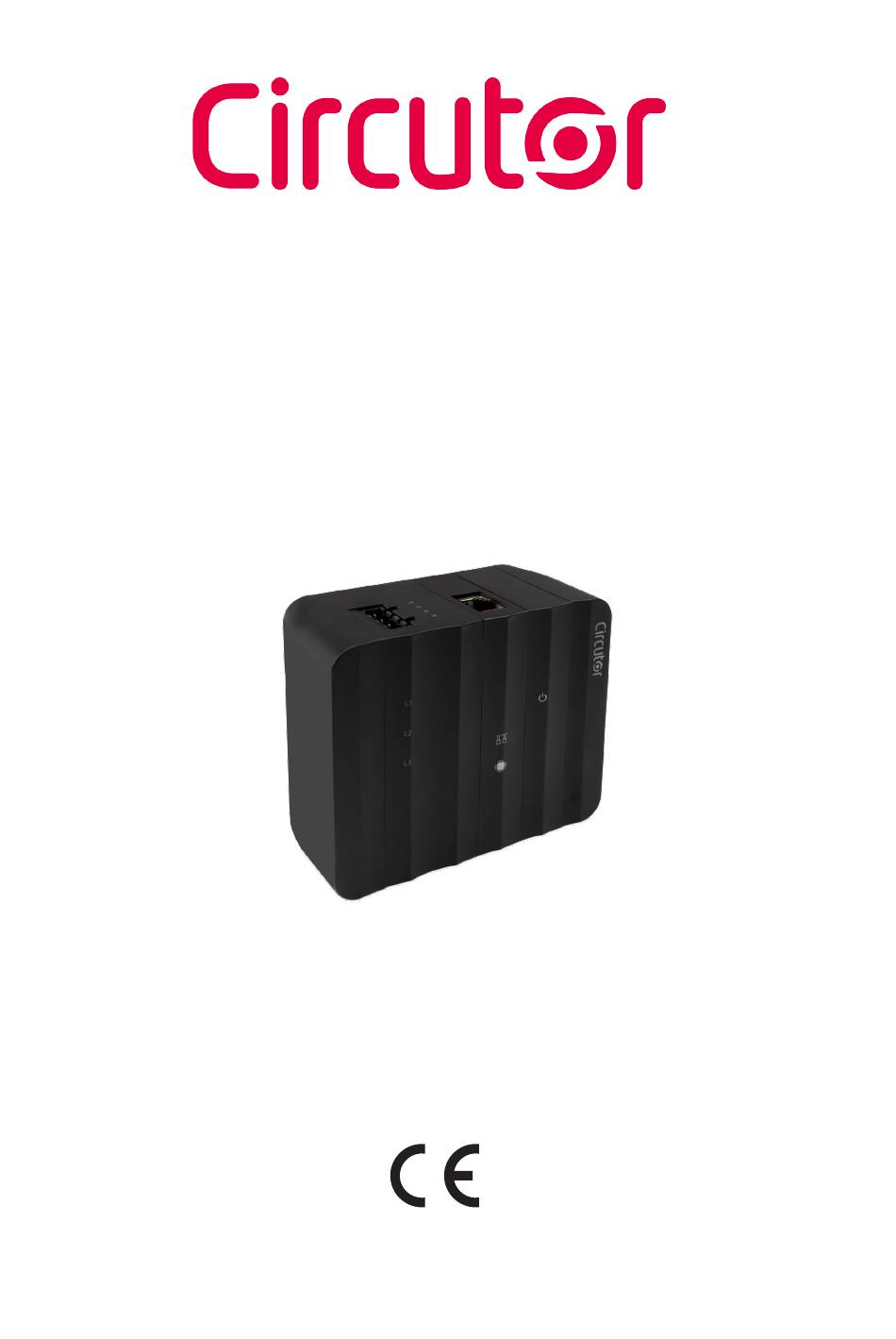

Page 1 Home manager for EV charging with self-supply Genion One INSTRUCTION MANUAL (M386B01-03-23B)
Page 2 Genion One Instruction Manual...
Page 3: Safety Precautions
CIRCUTOR S�A�U� reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S�A�U� on its web site, supplies its customers with the latest versions of the device specifi- cations and the most updated manuals.
Page 4: Table Of Contents
Genion One CONTENTS SAFETY PRECAUTIONS ��3 DISCLAIMER ��3 CONTENTS ��4 REVISION LOG ��5 SYMBOLS ��5 1�- VERIFICATION UPON RECEPTION ��6 2�- DEVICE DESCRIPTION��6 3�- DEVICE INSTALLATION �� 7 3�1�- PRIOR RECOMMENDATIONS �� 7 3�2�- INSTALLATION �� 7 3�3�- DEVICE TERMINALS ��8 3�3�1�- VERSI0N 1 ��8...
Page 5: Revision Log
Genion One REVISION LOG Table 1: Revision log� Date Revision Description 05/23 M386B01-03-23B Initial Version SYMBOLS Table 2: Symbols� Symbol Description In accordance with the relevant European directive. Device covered by European Directive 2012/19/EC. At the end of its useful life, do not discard of the device in a household refuse bin.
Page 6: 1�- Verification Upon Reception
The device features Wi-Fi, Ethernet and RS-485. Genion One incorporates a web app that can be used to configure and display all the parameters of the home installation via Wi-Fi or Ethernet in real time.
Page 7: 3�- Device Installation
The Genion One gateway must be installed by authorised and qualified staff. The power supply must be disconnected before handling, altering the connections or replacing the device.
Page 8: 3�3�- Device Terminals
Genion One 3�3�- DEVICE TERMINALS 3�3�1�- VERSI0N 1 Genion One Figure 1:Genion One terminals Version 1� Table 3:List of Genion One Version 1 terminals� Genion One terminals 1: V1, Power supply 8: V3, Voltage input 2: N, Power supply 9: N, Neutral voltage input...
Page 9: 3�3�2�- Versi0N 2
Genion One 3�3�2�- VERSI0N 2 Genion One Figure 2: Genion One terminals Version 2� Table 4:List of Genion One Version 2 terminals� Genion One terminals 1: A1, Power supply 9: V3, Voltage input 2: A2, Power supply 10: N, Neutral voltage input...
Page 10: 3�4�- Connection Diagram
Genion One 3�4�- CONNECTION DIAGRAM 3�4�1�- VERSI0N 1 Generación Fotovoltaica Red Eléctrica Photovoltaic Generation Mains Cargador VE EV charger eHome Link A+ B- S A+ B- S Genion One Figure 3: Genion One Version 1 connection diagram� Instruction Manual...
Page 11: 3�4�2�- Versi0N 2
Genion One 3�4�2�- VERSI0N 2 Generación Fotovoltaica Red Eléctrica Photovoltaic Generation Mains Cargador VE EV charger eHome Link A+ B- S A+ B- S Genion One Figure 4: Genion One Version 2 connection diagram� Instruction Manual...
Page 12: 3�4�3�- Connecting The Current Input To Mc1 Transformers
Genion One 3�4�3�- CONNECTING THE CURRENT INPUT TO MC1 TRANSFORMERS If MC1 transformers are used for the current inputs, see the connection diagram in Figure 5 Generación Fotovoltaica Cargador VE Photovoltaic Generation Red Eléctrica EV charger Mains Genion One Figure 5: Connecting the current input to MC1 transformers�...
Page 13: 4�- Operation
4.- OPERATION 4�1�- PRINCIPLE OF OPERATION Genion One is a device for managing the energy in an electrical installation that has solar panels for self-supply and an electric vehicle charging point. Genion One is designed to optimize the energy of an installation; specifically, the contracted power and the surplus produced by the self-supply installation, to regulate the charge provided to the electric vehicle.
Page 14 Genion One  CPU, CPU status: Table 7: CPU LED� Description On (Blue color) CPU status  L1, L2, L3, State of the lines, see Table 8 Figure 7 L1, State of the line of the Mains. L2, State of the photovoltaic generation line.
Page 15: 4�3�- Reset
Genion One 4�3�- RESET The device has a Reset button ( ) to load the factory settings: Figure 8  Soft-Reset: If the Reset button is pressed for 3 seconds, the device loads the factory settings for the communication parameters.
Page 16: 5�- Communications
Genion One 5.- COMMUNICATIONS 5�1�- RS-485 COMMUNICATIONS Genion One devices have an RS-485 communications port to communicate with the EV charger. 5�1�1�- CONNECTION The RS-485 cable must be wired using twisted pair cable with mesh shield (minimum 3 wires), with a maximum distance of 1200 meters between the Genion One and the slave devices.
Page 17: 5�2- Wi-Fi Communications
Wi-Fi is one of the most widespread wireless technologies today. It is used to connect electronic devic- es and exchange information between them without having to connect them physically. The Genion One devices feature Wi-Fi communications in the 2.4GHz band, and are compliant with the IEEE 802.11 b / g / n.
Page 18: 6�- Configuration Website
Note: On Android mobile devices with versions below 12.0, the DNS cannot be resolved correctly, mean- ing the Genion One website cannot be accessed via the URL http:/ /genion-xxxxxx.local/. In this case, it has to be accessed via Wi-Fi (Access Point) at the IP 192.168.137.1, provided that the device’s default Wi-Fi configuration has not been changed.
Page 19 Genion One Figure 10: Accessing the configuration website� The web application has 3 access profiles: Installer, Administrator and Guest� The Installer profile is used to manage and set up all the installation parameters through the in- stallation wizard (see “6.7-INSTALLATION”...
Page 20: 6�2- Dashboard
Genion One Figure 11: Home screen� From this screen you can access the menu of the configuration website, Figure 12 General state of the installation. EV charging time programming. Configuration of EV charging currents and control of the hourly net balance.
Page 21: 6�2�2�- Solar Production
Genion One Figure 13:Global consumption� 6�2�2�- SOLAR PRODUCTION The Solar Production interface, , shows the data on photovoltaic production. Specifically, Figure 14 the total production and relative and absolute data on how this production is distributed between self-supply and that exported to the grid.
Page 22: 6�2�5�- Ev Charger
Genion One Figure 16:Current power� 6�2�5�- EV CHARGER The EV Charger interface, , shows: Figure 18 Figure 17: EV charger� The status of the electric vehicle (EV) charger, which may be in 4 states: Charger Free, no vehicle connected. ERROR...
Page 23: 6�3- Schedule
Genion One Charging mode. Auto, the device will be charged as per the scheduled periods (See “6.3- SCHED- ULE”). Boost, in this mode, the vehicle will always charge, regardless of the scheduled periods. 6�3- SCHEDULE The hourly schedule for charging the EV is configured in the Schedule section, Figure 18 Figure 18:Schedule�...
Page 24 Genion One Figure 19:Edit periods� For each of the periods - Peak, Mid and Off-peak - select the power contracted in kW. The time limits of the billing period of the contracted electricity tariff are also set, as well as the type Peak, of tariff.
Page 25: 6�4- Configuration
Genion One 6�4- CONFIGURATION In the Configuration section, , the charge currents of the EV charger are configured and the Figure 20 net hourly balance control is activated. Figure 20:Configuration� Minimum charger currents: Select the minimum charge current of each charger, in order to make the most of the surplus produced by the self-supply installation.
Page 26: 6�6- Communications
Genion One Hostname shows the name of the device, which is used to establish the connection and go into the web app. In Date and time configuration, the system date and time can be modified. Click Save to save the changes made.
Page 27 Network mask: Network mask. Note: Genion One is designed to work on a local home network.In any case, if you wish to access it from outside a home setting, a VPN or similar network has to be set up.Under no circumstances does Circutor accept responsibility for configuring networks outside a local network.
Page 28: 6�7- Installation
6�7- INSTALLATION If you log into the website with the Installer profile, the Installation section is displayed, which can be used to set up all the Genion One installation parameters using an installation wizard. Step 1: of the Installation wizard ( Figure 25) Figure 25:Installation wizard: Step 1�...
Page 29 Genion One Step 2: of the Installation wizard ( Figure 26) Figure 26: Installation wizard: Step 2� The configuration settings are: In the Current Transformers section: Electricity grid (A) - L1: Primary of the current transformer of L1, line of the electrical grid in Amperes.
Page 30 These power parameters have to be reviewed to make sure that the values returned by the Genion One are correct. If any of the 3 lines fails, when the Test button is pressed, all the necessary checks are carried out again until the installation is OK.
Page 31: 6�8- Charger Recovery
Genion One 6�8- CHARGER RECOVERY The Charger Recovery section, , is only shown if you log into the Genion One website with Figure 28 the Installer profile. It is used to recover a charger if the Modbus identifier configuration is incorrect.
Page 32: 7�- Technical Features
Genion One 7.- TECHNICAL FEATURES AC Power supply Version 1 Version 2 Rated voltage 85 ... 264 V ~ 90 ... 264 V ~ Frequency 47 ... 63 Hz 47 ... 63 Hz Consumption 8.8 ... 10.5 VA 4.5 ... 6.5 VA...
Page 33 UNE-EN 60068-2-1 Environmental testing -- Part 2-2: Tests - Tests B: Dry heat� (IEC 60068-2-2:2007) UNE-EN 60068-2-2 Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state UNE-EN 60068-2-78 49.5 Figure 29: Genion One dimensions� Instruction Manual...
Page 34: 8�- Maintenance And Technical Service
Genion One 8.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR S�A�U� Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
Page 35: 10�- Eu Declaration Of Conformity
Genion One 10.- EU DECLARATION OF CONFORMITY Instruction Manual...
Page 36 Genion One Instruction Manual...
Page 37 Genion One Instruction Manual...
Page 38 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
