Catalog 1 Communication interface introduction ...............5 1.1 Pin definition ....................5 1.2 Use and configuration ..................6 1.2.1 The role of configuration parameters ........... 6 1.2.2 Visual configuration tool description ............ 7 2 Communication protocols ..................8 2.1 Protocol format ....................8 2.1.1 Protocol data format ................
Page 3
2.2.16 Distance resolution setting ..............17 2.2.17 Query distance resolution setting ............18 2.3 Radar data output protocol .................18 2.3.1 Reported data frame format ..............19 2.3.2 Target data composition ............... 19 2.4 Radar command configuration method .............20 2.4.1 Radar command configuration steps ..........20 3 Revision records ....................
Page 4
Chart Index Table 1 Pin definition table ..................5 Table 2 Send command protocol frame format ............9 Table 3 Data format in the sending frame ............... 9 Table 4 ACK command protocol frame format ............9 Table 5 ACK intra-frame data format ..............9 Table 6 Serial port baud rate selection ..............

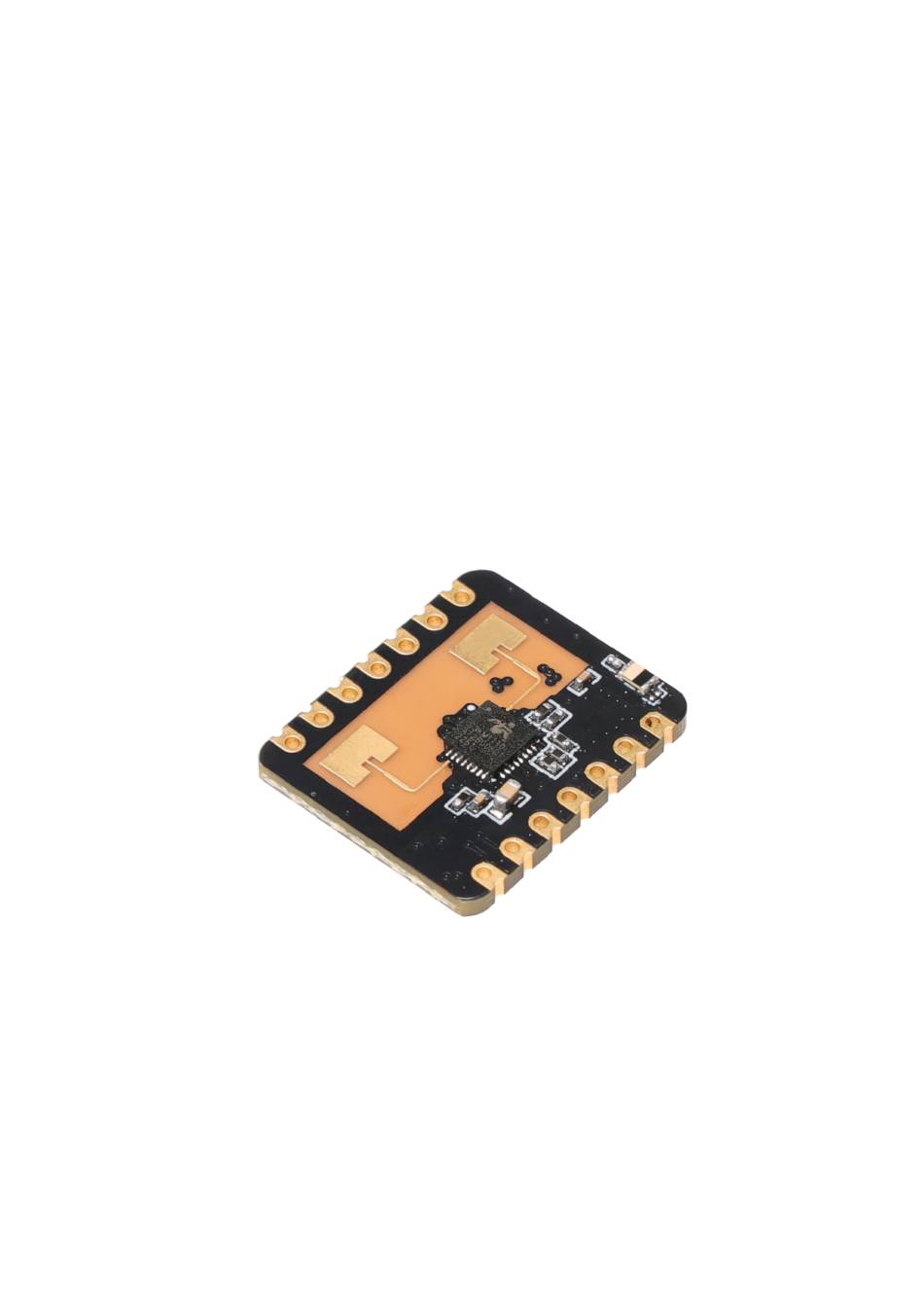

1.2 Use and configuration 1.2.1 The role of configuration parameters Users can modify the configuration parameters to the module through the serial port of this mmWave senser to adapt to different application requirements. The configurable radar detection parameters include the following : The farthest detection distance ...
1.2.2 Visual configuration tool description In order to facilitate users to quickly and efficiently test and configure the module, the PC terminal configuration tool is provided. Users can use this tool software to connect to the serial port of the module, read and configure the parameters of the module, and also receive the detection result data reported by the module, and make real-time visualization display, which is greatly convenient for users.
Blue line: moving target energy Red line: static target energy value Green line: the set sensitivity value on each distance gate on each range gate 2 Communication protocols The 24GHz mmWave Sensor for XIAO communicates with the outside world through a serial port (TTLlevel). Data output and parameter configuration commands of the radar are carried outunder this protocol.
Table 2 Send command protocol frame format Frame header Intra-frame data length Intra-frame data End of frame FD FC FB FA 2 bytes See Table 3 04 03 02 01 Table 3 Data format in the sending frame Command word (2 bytes) Command value (N bytes) Table 4 ACK command protocol frame format Frame header...
End the configuration command and the radar resumes working mode after execution. If you need to issue other commands again, you need to send the enable configuration command first. Command word: 0x00FE Command value: None Return value: 2-byte ACK status (0 success, 1 failure) Send data: FD FC FB FA 02 00...
The factory default configuration values are as follows: Table 7 Factory default configuration values Configuration items Default value Maximum movement distance door Maximum resting distance door No one duration Serial port baud rate 256000 Configuration items Default value Configuration items Default value Motion sensitivity of distance gate 0 Static sensitivity of distance gate 0...
2.2.12 Bluetooth settings This command is used to control the Bluetooth on or off, the Bluetooth function of the module is on by default. After receiving this command, a reboot is required for the function to take effect. Command word: 0x00A4 Command value: 0x0100 Turn on bluetooth 0x0000 Turn off bluetooth Return value: 2-byte ACK status (0 success, 1 failure) Send data: (Turn on bluetooth)
Return value: 2-byte ACK status (0 success, 1 failure) The default password is "HiLink", then the corresponding value is 0x4869 (Hi) 0x4c69 (Li) 0x6e6b (nk). Send data: FD FC FB FA 08 00 A8 00 48 69 4c 69 6e 6b 48 69 04 03 02 01 Radar ACK (success):...
Table 8 Distance resolution selection Distance resolution (distance represented by each Distance resolution selection index value distance gate) 0x0000 0.75m 0x0001 0.2m Factory default value is 0x0001, which is 0.75m. Send data: FD FC FB FA 04 00 AA 00 01 00 04 03 02 01 Radar ACK (success):...
2.3.1 Reported data frame format The format of the radar uplink message frames defined by the protocol is shown in Table 9 and Table 10. The definition of the report data type values in normal operation mode and engineering mode are shown in Table 11. Table 9 Reported data frame format Frame header Length of data in the frame...
Table 13 Target state value description Target state value Description 0x00 No target 0x01 Campaign target 0x02 Stationary target 0x03 Campaign & Stationary target Table 14 Engineering model target data composition Add the following data after the target basic information data in Table 11 Maximum Maximum Movement...
Page 21
As mentioned earlier, before sending any other commands to the radar, the developer needs to send the "enable configuration" command and then send the configuration command within the specified time. After the commands are configured, the "end configuration" command is sent to inform the radar that the configuration is finished.
