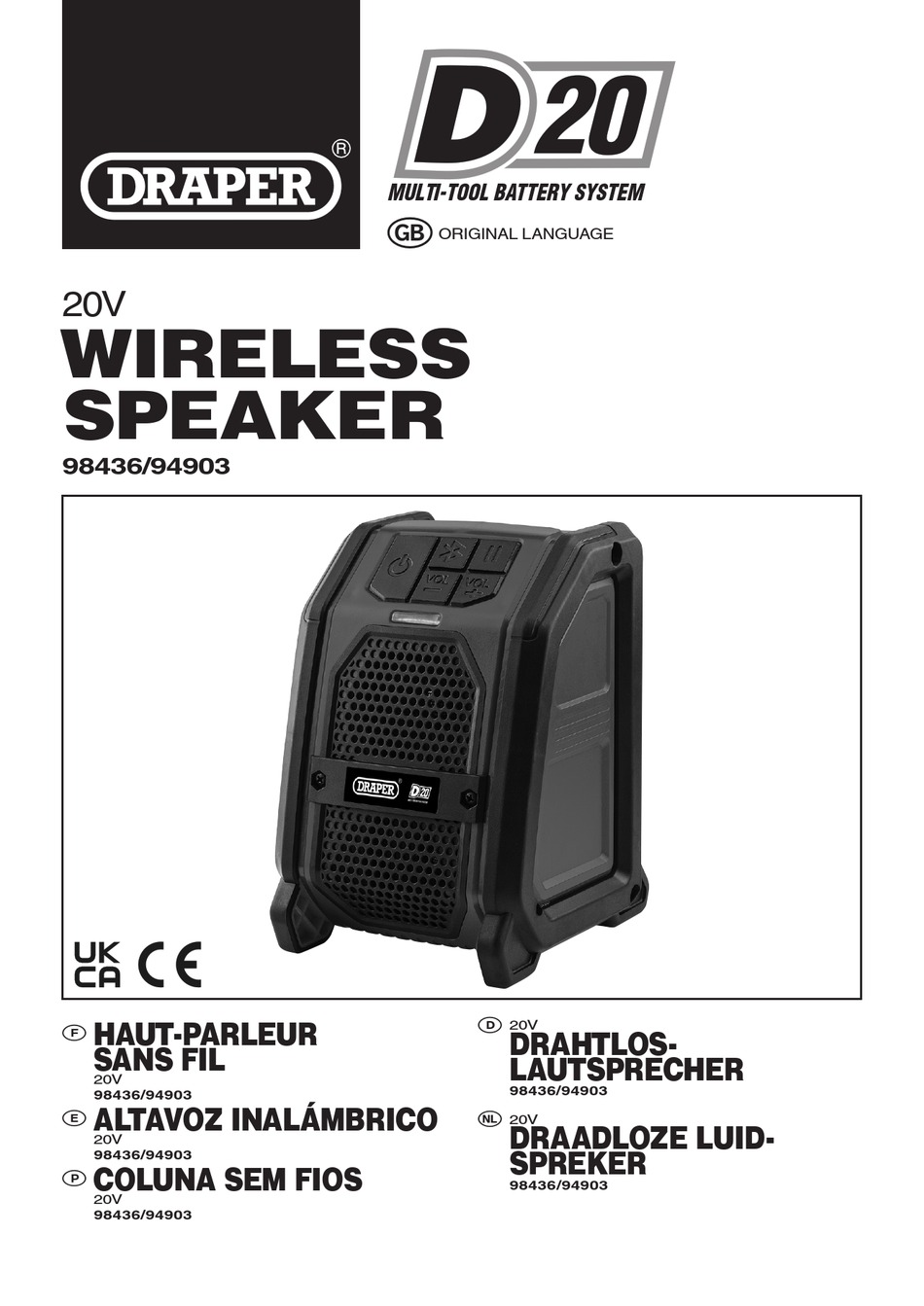

- Page 1 MULTI-TOOL BATTERY SYSTEM ORIGINAL LANGUAGE WIRELESS SPEAKER 98436/94903 HAUT-PARLEUR DRAHTLOS- SANS FIL LAUTSPRECHER 98436/94903 98436/94903 ALTAVOZ INALÁMBRICO DRAADLOZE LUID- SPREKER 98436/94903 COLUNA SEM FIOS 98436 /94903 98436/94903...
-
Page 2: Specification
1.2 UNDERSTANDING THIS MANUALS SAFETY CONTENT UK Conformity Assessed. Warning! – Information that draws attention to the risk of injury or death. Caution! – Information that draws attention to the risk of European conformity. damage to the product or surroundings. 1.3 EXPLANATION OF SYMBOLS 2. SPECIFICATION Read the instruction manual. 2.1 SPECIFICATION Stock No. .......... 98436/94903 Do not abandon into the environment. Part No. ....... D20WS/ DTKD20PTK/SPK Aux input socket ............3.5mm Output power ............2 x 3W Keep out of the reach of children. Operating range ........Up to 10M (30ft) Weight (machine) .............11kg Warning! 3. HEALTH AND SAFETY INFORMATION Machine weight. 3.1 GENERAL SAFETY... - Page 3 1) Work area safety turning the power tool on. A wrench or a key left attached to a rotating part of the power tool a) Keep work area clean and well lit. Cluttered or may result in personal injury. dark areas invite accidents. e) Do not overreach. Keep proper footing and b) Do not operate power tools in explosive balance at all times. This enables better control atmospheres, such as in the presence of of the power tool in unexpected situations. flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away c) Keep children and bystanders away while from moving parts. Loose clothes, jewellery or operating a power tool. Distractions can cause long hair can be caught in moving parts. you to lose control. g) If devices are provided for the connection of 2) Electrical safety dust extraction and collection facilities, a) Power tool plugs must match the outlet. Never ensure these are connected and properly modify the plug in any way. Do not use any used. Use of dust collection can reduce adapter plugs with earthed (grounded) power dust-related hazards. tools. Unmodified plugs and matching outlets will h) Do not let familiarity gained from frequent use reduce risk of electric shock.
-
Page 4: Residual Risk
Warning! – Leaking battery packs condition. If any are damaged, have the defective part(s) replaced immediately by a suitably qualified – The electrolyte in battery packs is corrosive. Avoid person. contact with the skin. – Only use a correctly rated mains outlet to provide – If contact is made, flush the area with clean water, power, do not plug into site generators, attach to pat dry and seek medical attention at the engine generators or D.C. sources. Do not use a earliest opportunity. mains socket outlet that is not switched. – Inform medical personnel that the contaminant is a – Use the correct Draper charger in conjunction with “high alkaline, corrosive liquid”. it’s corresponding battery pack (consult the Draper – If electrolyte comes into contact with the eyes, flush website for more information or to find your local with copious amounts of water only. stockist). Seek immediate medical attention, relaying the – Do not charge any other batteries with Draper information above. chargers. Any other application is considered misuse. 3.3 RESIDUAL RISK – Do not attempt to charge battery packs that are too hot (over 30ºC) or too cold (under 5ºC), if these Important: Although the safety instructions and conditions apply set the battery pack aside to operating manuals for our tools contain extensive “normalise” before proceeding with the charging... -
Page 5: Unpacking And Checking
Keep extension leads away from moving hazardous parts to avoid damages to the cable which can lead to contact with live parts. Position cable safely to avoid tripping over. Double insulated : This product requires no earth † connection as supplementary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation. Important! If using an extension lead, follow the instructions that came with your lead regarding maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound. Using a coiled extension lead will generate heat which could melt the lead and cause a fire. 4. UNPACKING AND CHECKING 4.1 PACKAGING Carefully remove the product from the packaging and examine it for any sign of damage. Check contents against the parts shown in Fig A. If any part is damaged or missing, please contact the Draper Help Line (see back page). Do not attempt to use the product! The packaging material should be retained during the warranty period, in case the product needs to be returned for repair. Warning! • Some of the packaging materials may be harmful to children. Do not leave any of these materials in reach of children. • If any of the packaging is to be thrown away, make sure it is disposed of correctly, according to local regulations. – 5 –... -
Page 6: Operation And Use
5. IDENTIFICATION – FIG.A (4) (5) (6) (10) Speaker Play/Pause button (6) (1) Indicator light. Volume up button ( press). (2) (7) Short track button (Long press) Next Volume down button (Short press). (3) track button (Long press). Battery cartridge Previous (8) Power button Aux in port (9) (4) Pairing button USB charging socket (5) (10) FIG.A Note: For details of our full range of accessories and consumables, please visit drapertools.com required. 6. OPERATION AND USE – Press the Power button (4) to turn on the speaker. The indicator light (2) will flash blue. - Page 7 – Simply select and play any music from your source device. Volume control, play/pause and track navigation can be adjusted from your source device, or directly from the speaker. Note: If 2 devices are pairing for the first time, and both search for the speaker, it will show its availability on both devices. However, if one device links with this unit first, then the other device won’t find it in the list. If your device is temporarily disconnected to the speaker, you will need to manually reconnect your device again. If the speaker shows on your device list but your device FIG. cannot connect with it, please delete the item from your Note: Not all player applications or devices may respond list and re-pair the device with the speaker following the to all of these controls. steps described previously. Some mobile phones may temporarily disconnect from The effective operation range between the system and the speaker when you make or receive calls. Some the paired device is approximately 10 metres (30 feet). devices may temporarily mute their audio streaming Any obstacle between the system and the device can when they receive text messages, emails or for other reduce the operational range. reasons unrelated to audio streaming. Such behaviour is Bluetooth connectivity performance may vary ® a function of the connected device and does not indicate depending on the connected devices. a fault with the speaker. Please refer to the Bluetooth capabilities of your device ® 6.3 DISCONNECTING YOUR DEVICE – before connecting to the speaker. All features may not FIG.3 be supported on some devices.
- Page 8 FIG. To release the battery pack: − Press the battery release button (11.1) and gently slide the battery pack off. FIG. − Plug the battery charger (12) unit into a power 6.5 BATTERY PACK CHARGING – FIGS. socket. 5 – 6 − The red LED (12.1) will illuminate to show the This power product is supplied “bare”, without battery charger has power. pack or charger. Compatible batteries, chargers and − Slide the battery into the charger (the battery is accessories are available through Draper Tools stockists. shaped to fit into the charger one way only. Important: Only Draper D20 designated battery packs − After a few seconds delay, the red LED (12.1) will and chargers can be used in conjunction with this flash to show that charging has begun, then product. Use of any other third party battery packs/ illuminate solid red. chargers with this product is considered misuse and will − Whilst the battery is charging, the green LED (12.2) invalidate the product’s warranty. will flash, (the red LED will go from flashing to Once connected to the mains supply, recharging of the constant red. battery can be left generally unsupervised, requiring − When the battery is fully charged the green LED minimal attention. Complex circuit construction monitors...
- Page 9 (11.2) (11) (12.1) (12.2) (12) 25 – 50% 0 – 10% 0 – 25% FIG. Caution: Only use the plug to disconnect from the power supply, never use the cable. Caution: If the battery charger has been in continuous use it will be hot. Once charging is completed, leave the 50 – 75% 75 – 100% charger to cool. FIG. Only charge cooled batteries. 7.12 BATTERY PACK PROTECTION 7.14 B ATTERY LIFE EFFICIENCY AND FEATURES CHARGING ADVICE Overcharging protection: When the battery pack is – Avoid recharging at high temperatures. fully charged, the transformer/charger will automatically A rechargeable battery will be hot immediately after shuts off, protecting the internal components. use. If such a battery is recharged immediately after Over-discharging protection: Stops the battery pack use the battery life will be shortened. Leave the from discharging beyond the recommended lowest battery and recharge it after it has cooled. safety voltage. – The battery should only be used and/or charged Overheating protection: An internal thermistor cut-off when battery temperature is between 5°C and 30°C.
-
Page 10: Maintenance And Troubleshooting
Return to an authorised service agent for diagnosis Cannot pair with your device Too far away Move closer to speaker Obstacle between device and Move closer to speaker speaker reducing operational range Another device already connected/ Disconnect other devices paired Device not compatible Use alternative device Can’t hear any sound Volume too low Turn volume up Device was disconnected Reconnect device 8.2 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly. Do not use solvents or fuels to clean the product. When not in use, store the product in a safe, dry place. 9. WARRANTY 9.1 WARRANTY Draper power tools have been carefully tested & inspected and are guaranteed to be free from defective materials or workmanship. For details of warranty and terms and conditions please visit the Draper Tools website at www.drapertools.com/warranty – 10 –... - Page 11 NOTES 10. DISPOSAL 10.1 DISPOSAL ....................– At the end of the machine’s working life, or when it ....................can no longer be repaired, ensure that it is disposed ....................of according to national regulations....................– Contact your local authority for details of collection schemes in your area....................In all circumstances: ....................• Do not dispose of power tools with ....................domestic waste....................• Do not incinerate....................• Do not dispose of WEEE* as unsorted ....................municipal waste.................................................................................................. ....................* Waste Electrical & Electronic Equipment....................
