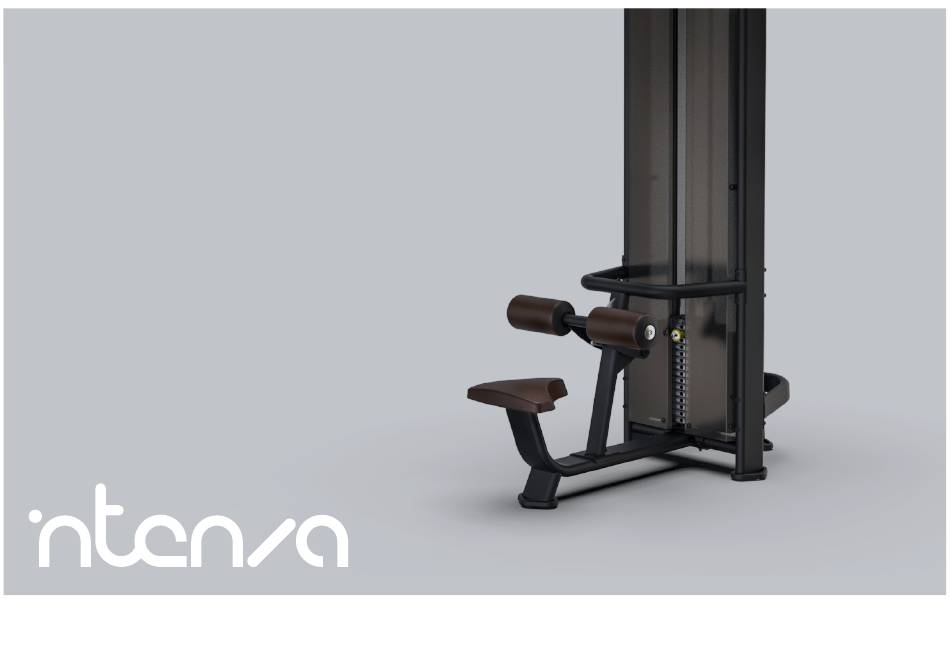

- Page 1 CABLE STATIONS AND MACHINE OWNER’S MANUAL INTENZA LAT PULL DOWN SINGLE STATION CMS—LPSS...
-
Page 2: Table Of Contents
Label Locations INSTALLATION AND ASSEMBLY Product Information Place Of Installation Assembly Guide CARE AND MAINTENANCE Commerical Maintenance Schedule Daily Inspection&Maintenance Weekly Inspection&Maintenance Other Scheduled Preventive Maintenance Cleaning The Equipment Cable inspection&maintenance Intenza Lat Pull Down Single Station Manual_____Table of Contents... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS It is the sole responsibility of the purchaser of Intenza products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Intenza exercise equipment be informed of the following information prior to its use. -
Page 4: Important Safety Information For Users
Never pin the weights in an elevated position. Do not use the equipment if the top plate or weight stack is pinned in a raised position. Notify the facility’s personnel to repair the equipment and ensure that it is working properly. Intenza Lat Pull Down Single Station Manual_____Important Safety Instructions For Users... -
Page 5: Label Locations
Attention must be paid to the labels attached to the equipment, as they provide information about possible risks and hazards. We recommend immediately replacing the labels when they become damaged or difficult to read. CMS—LPSS LAT PULL DOWN SINGLE STATION Intenza Lat Pull Down Single Station Manual_____Warning Label Locations... -
Page 6: Installation And Assembly
LIVE AREA 205 x 205 cm 81 x 81 inches CPDZZxxxxxxx LIVE AREA 144 cm (56.7”) 205 cm (81”) 46 cm (18”) 46 cm (18”) 113 cm (44.5”) 61 cm (24”) 205 cm (81”) Intenza Lat Pull Down Single Station Manual_____Installation... -
Page 7: Place Of Installation
UNPACKING Thank you for purchasing a Intneza product. Your Intenza product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. - Page 8 QTY 1 QTY 1 QTY 1 QTY 1 8. Upright 9. Bottom Bracket 10. Top Bracket 11. Side Bracket 12. High Pulley Assembly QTY 1 QTY 1 QTY 1 QTY 6 QTY 1 Intenza Lat Pull Down Single Station Manual_____Assembly Guide...
- Page 9 QTY 1 24. Snap Hook 25. U Bracket 26. Shoulder Bolt with blue patch 27. 4 1/2" Pulley 23. Cable Plastic Housing QTY 1 QTY 2 QTY 1 QTY 1 QTY 1 Intenza Lat Pull Down Single Station Manual_____Assembly Guide...
- Page 10 39. 1" x 3/8" Flat Washer 42. Flat Washer 3/8" x 1t 41. Curved Washer 42. Lock Nut 3/8" x 11t with blue patch QTY 2 QTY 42 QTY 22 QTY 20 QTY 2 Intenza Lat Pull Down Single Station Manual_____Assembly Guide...
- Page 11 51. Cap Head Screw 3/8" x 2" L 52. Front Shroud, Righ QTY 2 with blue patch QTY 24 QTY 3 QTY 1 QTY 24 53. Front Shroud, Left 54. Rear Shroud QTY 1 QTY 1 Intenza Lat Pull Down Single Station Manual_____Assembly Guide...
- Page 12 Cap Head Screw 3/8" x 2 1/2" L (36), Flat Washer 3/8" x 1t (40), Curved Washer (41), Lock Nut 3/8" x 11t (42), Cap Head Screw 3/8" x 3/4" L (47) Intenza Lat Pull Down Single Station Manual_____Assembly Guide...
- Page 13 Cap Head Screw 3/8" x 1" L with blue patch (38), Weight Selector Pin (31), Set Screw 5/16''x1/4''L (48) 1" x 3/8" Flat Washer (39), Flat Washer 3/8" x 1t (40), C Clip (43), Shaft (44), Roller Pad (45) Intenza Lat Pull Down Single Station Manual_____Assembly Guide...
- Page 14 Front Shroud, Left (53), Rear Shroud (54) Lock Nut 3/8" x 11t (42), Button Head Screw 1/4''x1/2''Lwith blue patch (49), Flat Washer 1/4" (50), Cap Head Screw 3/8" x 2" L (51) Intenza Lat Pull Down Single Station Manual_____Assembly Guide...
-
Page 15: Care And Maintenance
Always purchase replacement parts and hardware from Intenza. Many parts are tested and manufactured specifically for Intenza commercial strength equipment. If you use parts not approved by Intenza, you could void the Intenza Limited Warranty. Use of parts not approved by Intenza may cause injury. Intenza recommends that maintenance technicians thoroughly read and understand the safety guidelines and maintenance procedures covered in this manual. -
Page 16: Daily Inspection&Maintenance
The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. Intenza is not responsible for performing or scheduling regular maintenance or inspections. -
Page 17: Other Scheduled Preventive Maintenance
If you determine that the equipment needs service, make sure that the equipment cannot be used Wipe away dust and dirt before applying a Teflon spray lubricant. Intenza recommends using TriFlow or a similar brand. CHROMED ADJUSTMENT TUBES inadvertently and ensure other users know that the Clean the linear shaft and lubricate (as required) with Teflon based grease. -
Page 18: Cable Inspection&Maintenance
Shown below are examples of cables that exhibit signs of potential failure. If any of these conditions are apparent, the machine should immediately be taken out of service and repaired. Be sure to use only cables supplied by Intenza. - Page 19 Inspect the cable fittings where any handles are attached to the end of the cable. The fittings supplied with this machine are load rated snap—links. Ensure that the snap-link opens and closes easily and is fully engaged when closed. Replace the snap—link as needed. Intenza Lat Pull Down Single Station Manual_____Care&Maintenance...
- Page 20 2023 HealthStream Taiwan Inc. © No. 28, Jiaotuizai Boulevard, Liuying District, Tainan City 736, Taiwan 2023.11.24 Version 1.0 INTENZAFITNESS.COM...
