Shenzhen Southern Machinery Sales and Service Co.,Ltd
SM-306 Automatic bulk components cutting machine
Operation and Maintenance Manual
Design, manufacture and sales
Electronic components molding machine, electronic components casing machine, electronic
components taping machine.
PCB splitter, screw locking machine, dispensing machine, soldering machine.
Assembly automation equipment.
Non standard design and manufacturing automation equipment.
Address: Rm 1806, Block 3, Jinyun COFCO, Qianjin 2 Road, Xixiang, Baoan District,
Shenzhen City.
Web：Http://www.smthelp.com
Add : Room 10B-1, Chuangjian Building, Qianjing 2 Road ,Baoan District, Shenzhen City, China
TEL: 0755-83203237;
FAX:0755-23240492 website:www.smthelp.com
Shenzhen Southern Machinery Sales and Service Co.,Ltd
E-mail： E-mai：info@smthelp.com
:
Advertisement
Table of Contents
Summary of Contents for SOUTHERN MACHINERY SM-306

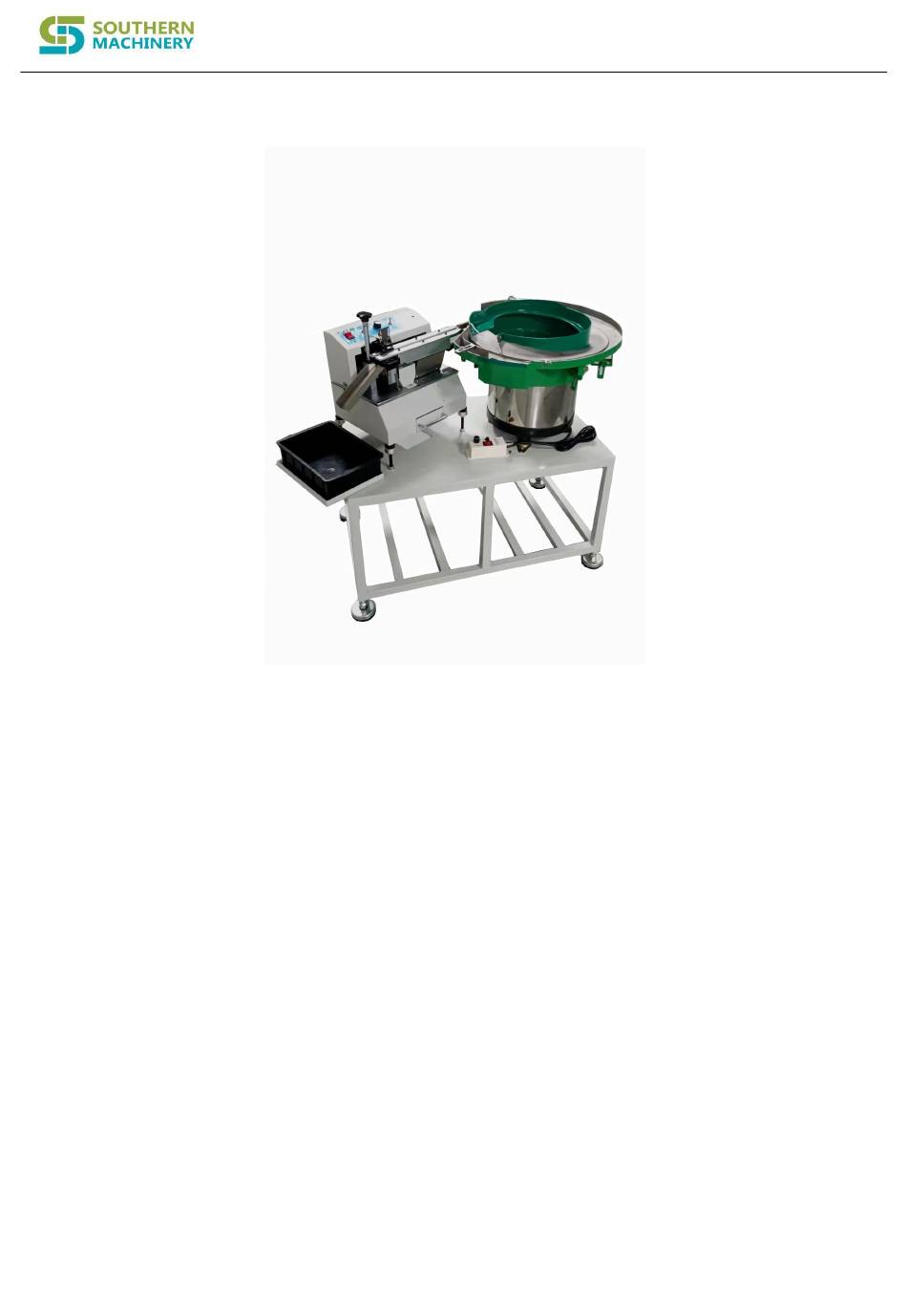

- Page 1 Shenzhen Southern Machinery Sales and Service Co.,Ltd Shenzhen Southern Machinery Sales and Service Co.,Ltd SM-306 Automatic bulk components cutting machine Operation and Maintenance Manual Design, manufacture and sales Electronic components molding machine, electronic components casing machine, electronic components taping machine.
-
Page 2: Table Of Contents
Shenzhen Southern Machinery Sales and Service Co.,Ltd Catalog ..................1 1. Preface ..................1 2. Outline ............2 3. Features of the machine ............. 3 4. Structure description ..............4 5. Vibrating Feeder ..................5 6. Host 7. Cutter adjustment instructions ............ -
Page 3: Preface
Shenzhen Southern Machinery Sales and Service Co.,Ltd 1.Preface SM is a powerful electronic equipment company in China, Professional design and manufacture of automation equipment, The automation equipment developed and produced by our company integrates advanced technology at home and abroad and adopts high-quality imported spare parts, so that the products are at the leading level in the same industry. -
Page 4: Features Of The Machine
Shenzhen Southern Machinery Sales and Service Co.,Ltd 3.Features of the machine 3.1 This machine is suitable for mass production and is the best auxiliary equipment for short leg operation. 3.2 The equipment is composed of three parts: the lead shearing machine, the vibrating feeding plate and the supporting trolley;... -
Page 5: Structure Description
Shenzhen Southern Machinery Sales and Service Co.,Ltd 4.Structure description Vibrating Feeder Host Material Box Vibrating Feeder Speed Control box Support Trolley Figure 1 Add : Room 10B-1, Chuangjian Building, Qianjing 2 Road ,Baoan District, Shenzhen City, China TEL: 0755-83203237; FAX:0755-23240492 website:www.smthelp.com... -
Page 6: Vibrating Feeder
Shenzhen Southern Machinery Sales and Service Co.,Ltd 5.Vibrating Feeder Gap should be adjusted according to different materials and sizes Material flow Intercross cross stainless regulation steel. Adjust according to the material size. Block is not arranged and easy to use. Adjust the high and lower according to the material size. -
Page 7: Host
Shenzhen Southern Machinery Sales and Service Co.,Ltd 6.Host Horizontal transmission track vibration Main power switch frequency adjustment knob 1-100. Cutter motor switch Cutter height adjustment Power switch for horizontal transmission track Pressing device Lower hopper Paraseismic orbit Built in flat vibration coil... -
Page 8: Cutter Adjustment Instructions
Shenzhen Southern Machinery Sales and Service Co.,Ltd 7.Cutter adjustment instructions Dovetail seat for cutter height adjustment (2-m8 hexagon socket head screw) Figure 4 Add : Room 10B-1, Chuangjian Building, Qianjing 2 Road ,Baoan District, Shenzhen City, China TEL: 0755-83203237; FAX:0755-23240492 website:www.smthelp.com... -
Page 9: Operation Process
Shenzhen Southern Machinery Sales and Service Co.,Ltd 8.Operation process Use and adjustment of main engine 1. Main power switch: when the power is on, when the switch is turned on, the red device is powered on, and when it is off, the device is powered off. - Page 10 Shenzhen Southern Machinery Sales and Service Co.,Ltd material. 8. Adjustment of cutting lead length: according to the length of the material to be processed, first loosen several jackscrews of 4-M8, then rotate the cutter height knob left and right, adjust to the required size, and then tighten several jackscrews of - M8 (to prevent running).
-
Page 11: Parameters Of The Machine
Shenzhen Southern Machinery Sales and Service Co.,Ltd 9.Parameter of the machine Project Parameter Power Supply AC220V±10% 50Hz Power of Host and feeder 210W Supply Current 0.95A Work Cycle 0.5S～2S Cutter Die SKD11 Working Temperature -5～+50 Altitude ≤1000 米 Relative Humidity ≤95%(25... -
Page 12: Matters Needing Attention
Shenzhen Southern Machinery Sales and Service Co.,Ltd 11.Matters needing attention When replacing the mold, the power supply and air source are turned off; Do not disassemble or disassemble the moving slider at will; Do not knock the flat vibration and mold parts.
