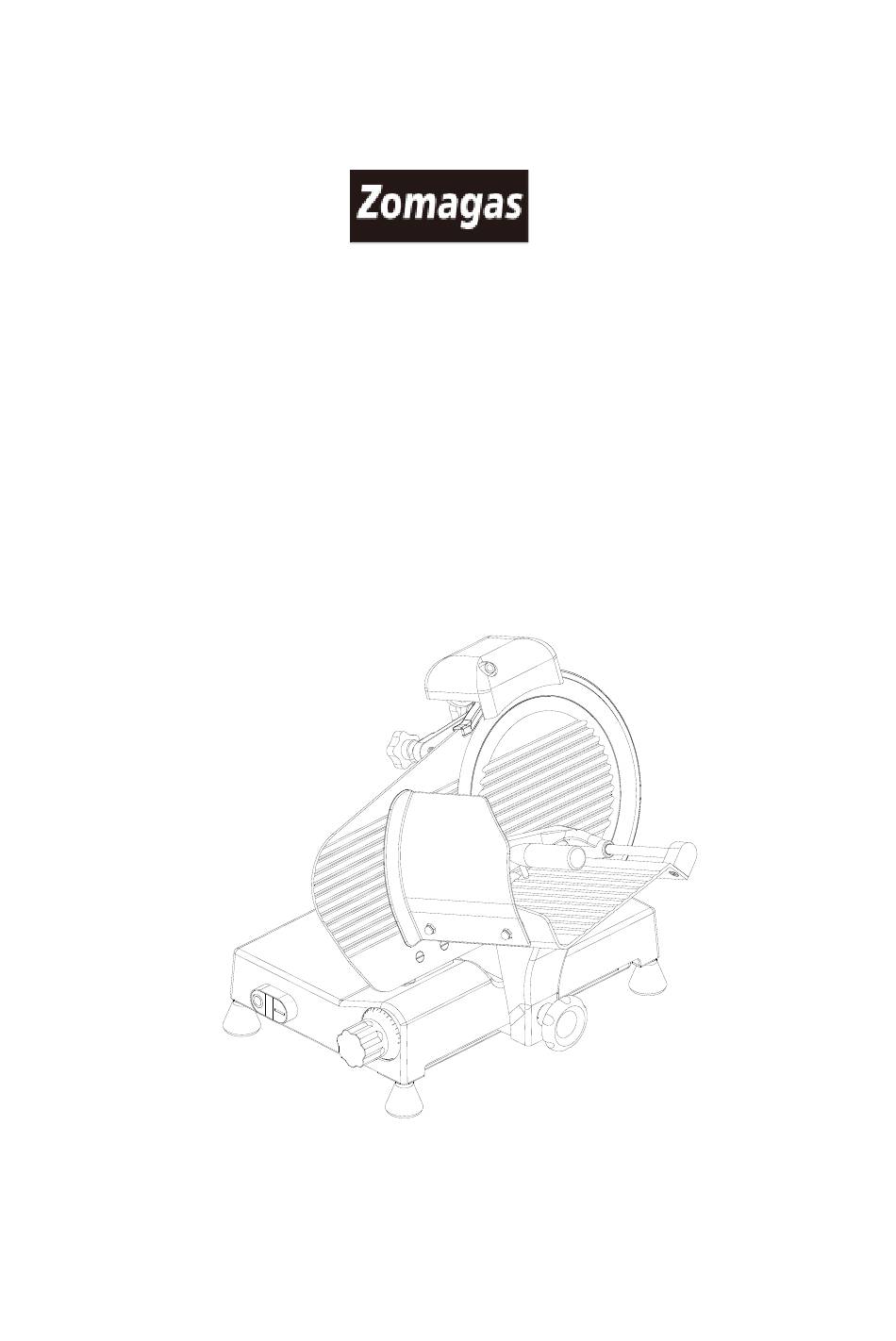

To safeguard your interests:
Please read this instruction manual carefully before using the
product and keep this manual.

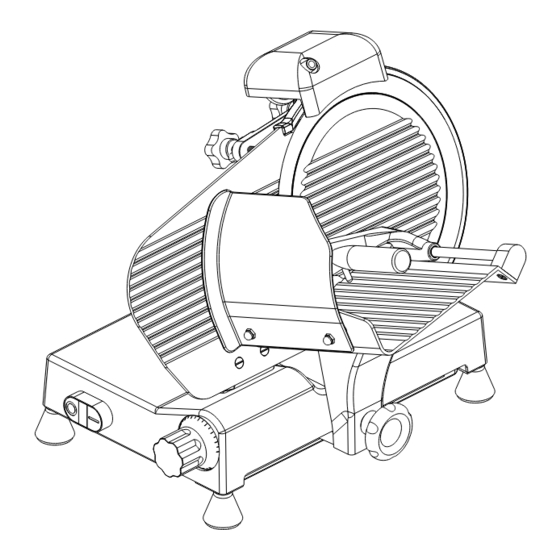

User Manual
For Meat Slicer
Model: B250B-4
Customer service: newfanmi001@outlook.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B250B-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zomagas B250B-4

  • Page 1 To safeguard your interests: Please read this instruction manual carefully before using the product and keep this manual. User Manual For Meat Slicer Model: B250B-4 Customer service: newfanmi001@outlook.com...
  • Page 2: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS ..........3 PRODUCT SPECIFICATION ..............5 GROUNDING INSTRUCTIONS ............. 5 INSTALL YOUR MRAT SLICER ............. 6 GETTING TO KNOW YOUR MEAT SLICER .......... 7 PREPARATION FOR FIRST USE ............8 HOW TO USE YOUR MEAT SLICER ............. 8 CLEANING &...
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages in this manual for your appliance. Always read and observe all safety information. All safety messages will follow the safety warning symbols and the words “DANGER”, “WARNING”...
  • Page 4 Check whether all components work properly and perform the expected functions. Check whether the moving parts are aligned or any other conditions that may affect the operation. Ÿ Always keep your fingers away from the blade. Do not touch the blade, otherwise serious injury may occur.
  • Page 5: Product Specification

    Never use fingers to scrape food away from the blade while the Meat Slicer is in Ÿ operation. Ÿ Never feed food into the Meat Slicer by hand when the meat cutter is running. Ÿ Do not use for any other purpose than it's intended use. Ÿ...
  • Page 6: Install Your Mrat Slicer

    cords having an electrical rating not less than the rating of the appliance. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges.
  • Page 7: Getting To Know Your Meat Slicer

    GETTING TO KNOW YOUR MEAT SLICER Figure 2 A. Meat Slicer base K. Protection cover of blade B. Bottom cover L. Blade protection C. Push handle M. Sharpener D. Carriage fixing knob N. Sharpening button E. Thickness knob O. Sharpener fixing knob F.
  • Page 8: Preparation For First Use

    PREPARATION FOR FIRST USE CAUTION: Do not wash the part of this appliance in dishwasher. WARNING: Blade is exceptionally sharp. Handle the blade carefully when cleaning, removing and inserting. WARNING Do not immerse the Meat Slicer base in water or any other liquid! Ÿ...
  • Page 9 engaged and tightened. To avoid danger or injury, only use the Meat Slicer when fully assembled. WARNING: Never place hand behind food carriage. WARNING: Do not use this Meat Slicer without food holder. CAUTION : Always use the Meat Holder. Make sure that you’re pressing the meat firmly against the support plate so that it doesn’t fall off and expose your extremities to the blade.
  • Page 10: Cleaning & Maintenance

    knob. 10. Continue to slide carriage back and forth in an even and steady motion. 11. After all your slicing is done, turn the Meat Slicer OFF and wait for the blades to stop completely before unplugging the unit from the electrical outlet. 12.
  • Page 11 protection cover of blade (K in Fig. 2) from the front, then clean the blade and protection cover with a damp soapy cloth or sponge. To prevent the blade from rusting, wipe the blade clean and keep it dry after each use. 2.
  • Page 12: How To Sharpen The Blade

    Fill lubricating oil (SAE140 machine lubricating oil) on the sliding shaft of carriage, slide the carriage left and right to make the lubricating oil completely penetrate the gap, so that the carriage can move smoothly. Do this once a week. HOW TO SHARPEN THE BLADE WARNING: Blade is exceptionally sharp.
  • Page 13 7. Sharpen the front of blade: Plug in the power supply, turn on the Meat Slicer. Then press the button on the front of the sharpener to make the grinding wheel contact the blade for about 1-2 seconds, then release the button (as shown in Figure COUTION: To prevent the blade from becoming blunt or even unable to cut meat, gently press the front sharpening button for about 1 second when sharpening the blade, and the maximum time should not exceed 2 seconds.
  • Page 14: Trouble Shooting

    TROUBLE SHOOTING Problem Possible cause Solution Food carrier Screws of fixing the carrier Tighten the screws. shakes or touch was loosed. the protection cover of blade. The food support The screw of stopping the Tighten the screws plate is lower than food support plate was the blade.
  • Page 15 The screws on the support Tighten up screws. plate were loosed. The meat slices The angle of the blade is not Grind the angle of blade are not uniform, correct. again. not rolled or the The blade is blunt. Grind the blade again. blade cannot cut The carriage fixing knob is Tighten the knob.
  • Page 16: Electric Circuit Diagram

    ELECTRIC CIRCUIT DIAGRAM...
  • Page 17 MADE IN CHINA Foshan Shideba Home Supplies Co. Ltd...
