Summary of Contents for Zomagas CIM21

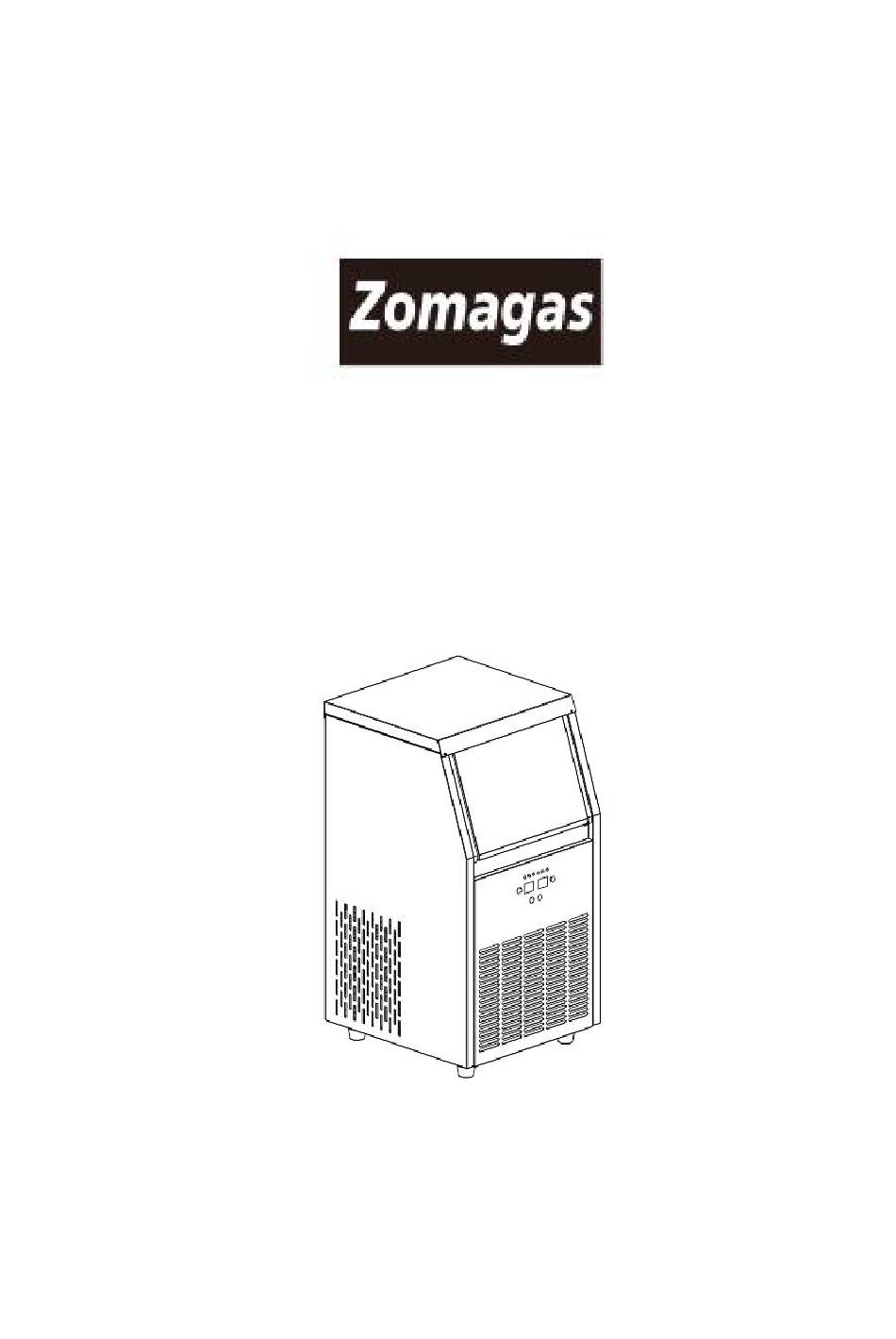

- Page 1 To safeguard your interests: Please read this instruction manual carefully before using the product and keep this manual. Ice Maker User Manual Mailbox：Customer service: kejitop01@outlook.com...
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS..............1 IMPORTANT SAFETY TIPS .................1 GETTING TO KNOW YOUR ICE MAKER...............3 INSTALLATION YOURICEMAKER.................4 INSTALL YOUR ICE MAKER ................4 CONNECTING YOUR ICE MAKER ..............5 USING YOUR ICE MAKER..................6 ● How to start using your ice maker ..............7 ●... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages in this manual for your appliance. Always read and observe all safety information. All safety messages will follow the safety warning symbols and the words “DANGER”, “WARNING”... - Page 4 This product must be properly installed and located in accordance with the installation instructions before it is used. Do not, under any circumstances, alter or remove the third (ground) prong from the power cord. For personal safety this product must be properly grounded Do not allow children to climb, stand, or hang on the ice maker.
-
Page 5: Getting To Know Your Ice Maker
and Local Regulations. The flammable refrigerant and insulation material used in this product require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator. CAUTION-Risk of fire or explosion due to puncture of refrigerant tubing; Follow handling instructions carefully. -
Page 6: Installation Youricemaker
INSTALLATION YOURICEMAKER INSTALL YOUR ICE MAKER Remove the exterior and interior packaging, check the maker for damage carefully, then take out the accessory from the ice bucket, then clean the interior ice bucket. Place the ice maker on the flat and solid ground surface. The ice maker is not for outdoor use, please use it under ambient temperature 10℃... -
Page 7: Connecting Your Ice Maker
CONNECTING YOUR ICE MAKER The water supplied to the ice maker must be passed the filter. Please do not directly connected ice maker to tap water, poor water quality may cause ice maker failure. The water supply pressure must be controlled at 130~550Kpa. If the pressure is too high, a pressure reducing valve must be installed. -
Page 8: Using Your Ice Maker
USING YOUR ICE MAKER Control panel introduction ● A: LED indicator lights: Indicates the status of the ice maker during working. B: On/Off & Ice falling button: – After power on, the unit enters the standby mode. Press this button to start the ice making process. -
Page 9: How To Start Using Your Ice Maker
F: Display the remaining time for ice making in a cycle (in minutes). Display the set time when presetting the start/end time of ice making (in hours). G: Timing & Cleaning button: – During Ice maker working, press this button to preset end time of the ice making (in hours). -
Page 10: How To Preset The Start Time Of Ice Making
● How to preset the start time of ice making 1, In standby mode, press "Timing" button to preset the start time of ice making. "Timing" light on and display flash. The number displayed is the remaining time until the start of ice making (in hours). -
Page 11: Trouble Shooting
figure below. When cleaning the water tank and ice bucket of the ice maker, you can directly flush them with a water pipe. To prevent water from entering the internal circuit and causing electric leakage, do not use excessive water pressure, and do not directly flush the part above the ice lattice. - Page 12 Problem Possible cause Solution Not connected to the power Check the power supply and water supply or water supply. supply to ensure they are normal. Ice maker does not work The ice falling plate was stuck Let the ice plate return back to the by some matters and does not correct position by removing foreign return to its right position.
- Page 13 Ambient temp is high or the Move the unit to somewhere ambient water temp is high. temp lower than 32 ℃, connect to the cool drinking water supply. Ice maker work Need the technical service person to but no ice cube Refrigerant system leakage maintain.
- Page 14 Foshan Fanyin Household Technology Co., Ltd. Add:No. 6, Keyuan 3rd Rd., Ronggui St.,Shunde Dist., 5th, 11/F, West Bldg., Block E, Foshan, Guangdong 528305...
