Summary of Contents for AlphaTecRacing Dashboard Formula

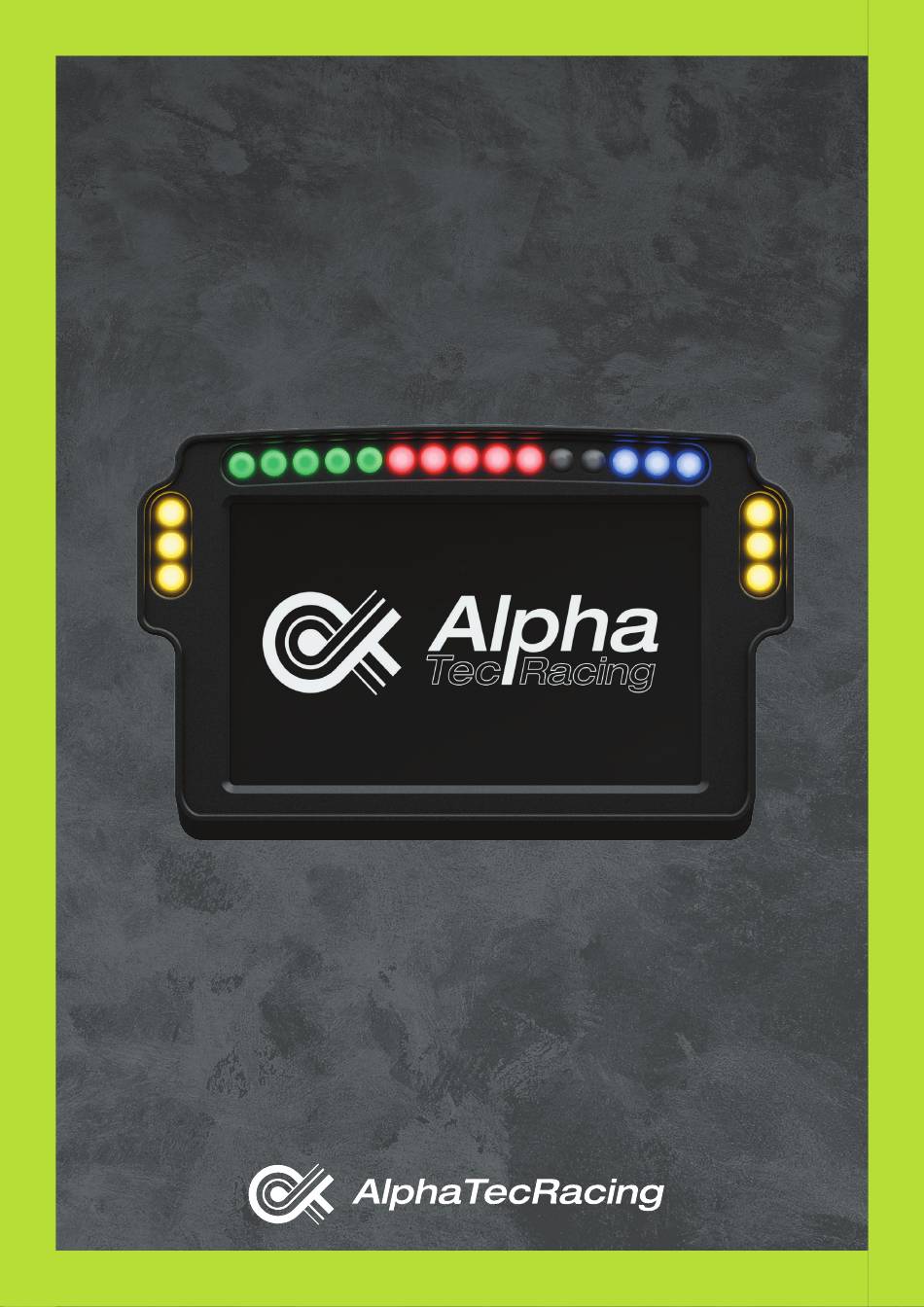

- Page 1 Instruction Dashboard Formula AlphaTecRacing...
-
Page 2: Mounting Material
Mounting material Mounting screws for Simucube, VRS, Simagic Mounting screws for Fanatec Thumbscrews for each wheelbase necessary Mounting plate 2m USB-C textile cable Mounting screws for Moza R5,R9,R16,21; Asetek SimSports... -
Page 3: Product Information
Product information Features > Dashboard for SimRacing > Realistic Formula 1 design > Aluminum housing > Supports all popular wheelbases > Intended for use with SimHub Technical drawing Wheelbase Hole spacing > Simucube etc. > 103–92mm (Oblong hole) > Fanatec >... - Page 4 Mounting For mounting on your personal Wheelbase, take a close look at the following schematics. Fanatec Simucube, VRS, Simagic, etc.
- Page 5 For your Moza or Asetec Wheelbase you will need you need the screws and spacers included in the bags. Moza R5 & R9 Moza R16 & R21 Asetec SimSports...
- Page 6 Now screw your dashboard to the bracket using the thumbscrews. You can easily adjust the height of the dashboard by hand at any time using the by hand at any time. Fixing dashboard Connect your dashboard and the PC with the USB-C cable and now follow the part „Software installation“.
-
Page 7: Software Installation
Software installation Install the freeware SimHub: www.simhubdash.com. Install the VoCore display driver from www.simhubdash.com/devices-driver-installation/. Select the „VOCORE LCD“ (Windows 10/11 Vocore Screen (Touch version) drivers) Start the SimHub program and select „AlphaTecRacing - Dashboard Formula“ under „Devices“ and „add new Device“. - Page 8 Under the following link you will find LED and display presets that automatically adapt your vehicle to further personalize your dashboard and use all functions: www.alphatecracing.com/pages/downloads Follow steps below install additional presets: a. Go to the website mentioned above, where you already found this guide, and download the „SimHub ATR-plugin“...
-
Page 10: Safety Instructions
Disposal of the device When you no longer need the AlphaTecRacing Dashboard Formula or it no longer functions, you must dispose of it properly to avoid environmental pollution and health risks. Please do not throw the device into the household waste. - Page 11 Contact and help Please contact the following email address if you need further assistance: - support@alphatecracing.com VIII Device specifications - AlphaTecRacing - Dashboard Formula - P.N.: 3.23.3.43 - Housing material: Aluminum alloy - Color: Black anodized - Input power: 5V...
