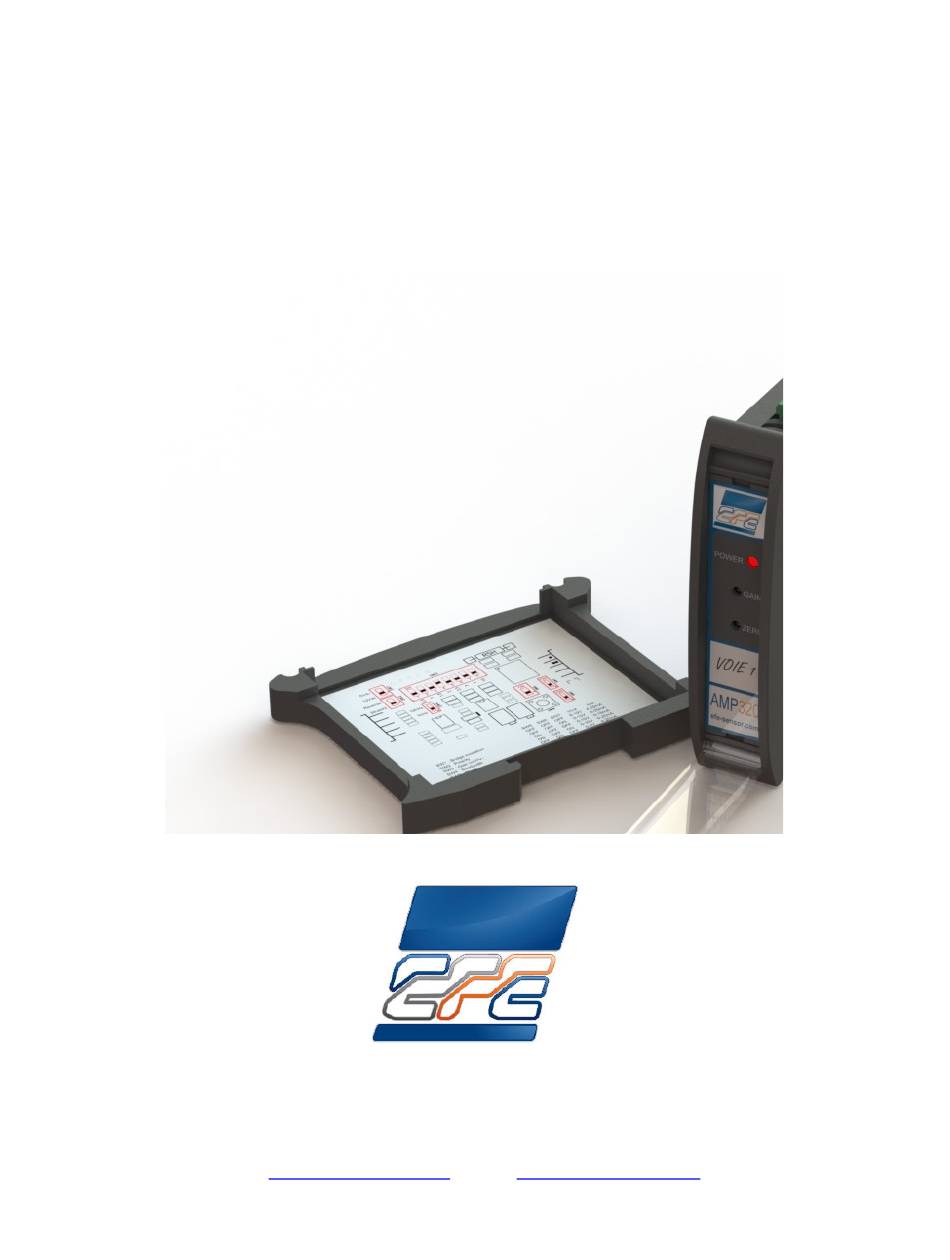

AMP320
Product Manual
EFE
16, rue de la Porte à Bateaux- F-27540 Ivry La Bataille, France
Tél. +33.2.32.22.35.03
Fax. +33.2.32.36.93.08
www.efe-sensor.com
infos@efe-sensor.com
www.efe-sensor.com
AMP320 Product Manual – V1.0
1/9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMP320 and is the answer not in the manual?

Questions and answers

Summary of Contents for EFE AMP320

  • Page 1 AMP320 Product Manual 16, rue de la Porte à Bateaux- F-27540 Ivry La Bataille, France Tél. +33.2.32.22.35.03 Fax. +33.2.32.36.93.08 www.efe-sensor.com infos@efe-sensor.com www.efe-sensor.com AMP320 Product Manual – V1.0...
  • Page 2: Table Of Contents

    Gain ..............................6 Current Setting (4) ..........................................Advanced Span and Zero Adjustment ................... 7 Adjusting the Zero ..........................7 Adjusting the Span ..........................7 Appendix A (Noise levels) ........................ 8 Appendix B (Specifications) ......................9 www.efe-sensor.com AMP320 Product Manual – V1.0...
  • Page 3: Default Settings

    Signal Output (Current) Note: Do not connect the device to the power supply when the power supply is already on! (1) For 6 wire sensors connect +Sense to +Excitation Return and –Sense to –Excitation Return www.efe-sensor.com AMP320 Product Manual – V1.0...
  • Page 4: Standard Span & Zero Adjustment

    Standard Span & Zero Adjustment Once all of the connections are complete, you can begin to set up the sensor/amplifier system. You will need to have the output from the AMP320 connected to a device so you can read the voltage or current.
  • Page 5: Shunt Readings

    2. Connect the shunt resistor in the spot labeled ‘RSH’. 3. Press the pushbutton that corresponds to the shunt. 4. While the shunt is enabled and the AMP320 is reading the simulated load, adjust the span (described above) to the correct output.
  • Page 6: Excitation

    DIP switch to the appropriate configuration. Ex. If you are using your AMP320 with a tension and compression load cell and you have tension setup as the positive direction, but now you would like to have compression as the positive direction, all you have to do is flip the DIP switch from the default polarity position to the reverse polarity position.
  • Page 7: Current Setting

    However, it sometimes happens that the rated output from the sensor is not exactly 2.0 mV/V or 3.0 mV/V. The AMP320 has a ±10% of R.O. adjustment range so a sensor with an output close to one of the input ranges will work fine.
  • Page 8: Appendix A (Noise Levels)

    Voltage Output Voltage noise Voltage noise Bandwidth Sensitivity (mV/V) Current noise (μA) (mV) (mV) 1 kHz Current Output Voltage Output Voltage noise Voltage noise Bandwidth Sensitivity (mV/V) Current noise (μA) (mV) (mV) 10 kHz www.efe-sensor.com AMP320 Product Manual – V1.0...
  • Page 9: Appendix B (Specifications)

    No Load Applied (Input or Output) - Power supply must source 150 mA minimum According ordered option (10kHz, only for sensor’s sensitivity of 1 mV/V or greater) WARNING: DO NOT CONNECT DEVICE TO POWER SUPPLY WHEN POWER SUPPLY IS ALREADY ON www.efe-sensor.com AMP320 Product Manual – V1.0...
