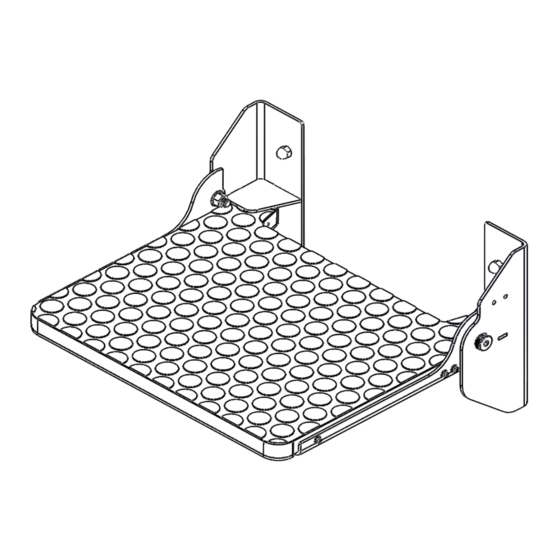

Summary of Contents for Stand Up Vans RAM PROMASTER FOOTREST

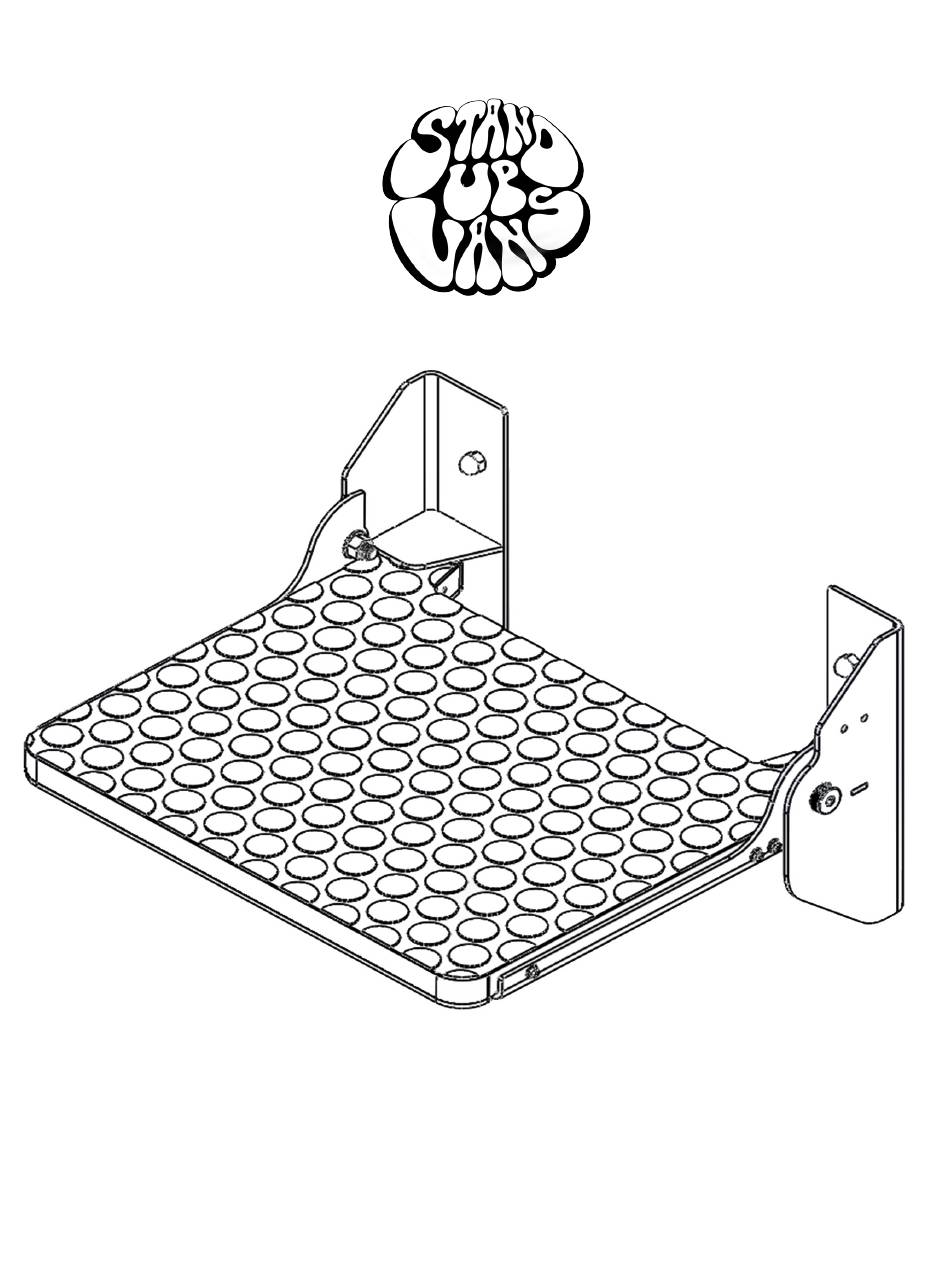

- Page 1 RAM PROMASTER FOOTREST INSTRUCTION MANUAL COMPONENTS - TOOLS NEEDED - INSTALLATION PATENT PENDING...
- Page 2 OVERVIEW TOOLS NEEDED 7/16” WRENCH 9/16” WRENCH 4MM ALLEN KEY 1/4” ALLEN KEY (SUPPLIED) HARDWARE 1/4” X 1/2” HEX HEAD BOLT AXLE BOLT BIG HOLE WASHER ACORN NUT LOCK WASHER SMALL HOLE WASHER 3/8” NUT COMPONENTS LEFT SIDE BRACKET RIGHT SIDE BRACKET FOOTREST DECK FOOTREST PLATE...
- Page 3 ASSEMBLY INSTRUCTIONS FIGURE 2: FOOTREST DECK MOUNTING FIGURE 1: SIDE BRACKET MOUNTING 1 - 1/4” X 1/2” BOLT 2 - LOCK WASHER 1 - MAIN BOLT 3 - ACORN NUT 2 - LARGE 3 - SMALL HOLE HOLE WASHER WASHER 4 - 3/8”...
