SECURE CAMPER MOTORHOME WI-FI CAT4 Quick Start Manual

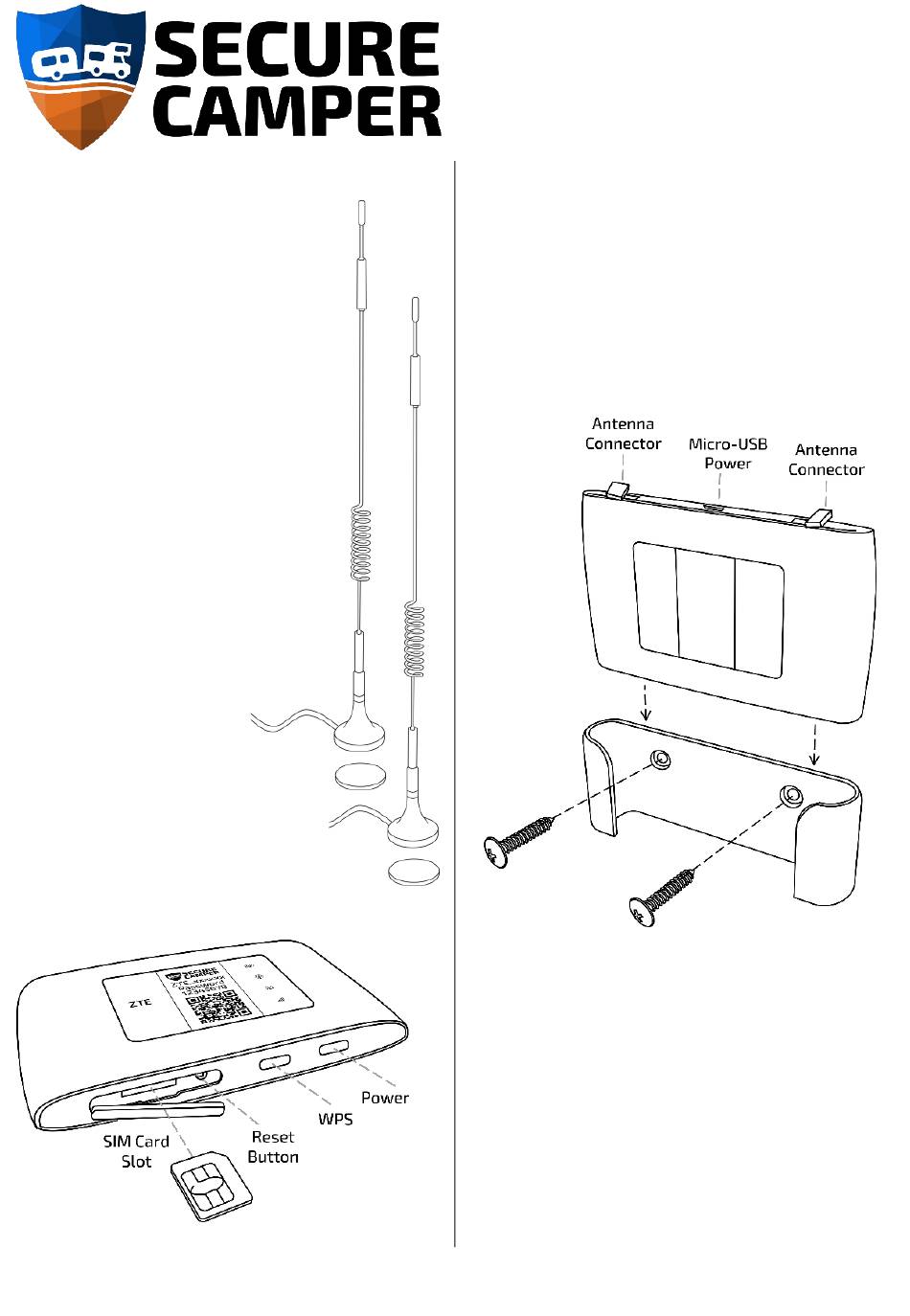

1. Install the Antennas

The kit comes with two
external 4G antennas to
improve signal strength
and consistency.
They can be mounted
using a self-adhesive
double-sided pad or
magnet mounted.
Choose a location on the
motorhome as high as
possible. Keep in mind the
length of the antenna
cable, how you intend to
route the cable inside and
the planned location of
the router.

2. Install the Router

Gently open the SIM card
cover (as shown below).
Do not remove it. Insert
the Micro-SIM card until it
clicks and close the cover.
MOTORHOME WI-FI
CAT4
(ZTE MF920U)
QUICK START GUIDE
Gently open the antenna covers on
the top of the router and leave these
open. Do not remove them, they will
remain loosely connected to the
router.
Mount the router bracket using
screws or self-adhesive pads within
reach of the antenna cables.
Slide the router into the mounting
bracket as above. Insert the external
antenna cables to the antenna
connectors. These will need a firm
push.

3. Connect the Power Adapter

Connect the power adapter to the
vehicle and the micro-USB power
connector to the router.
1
