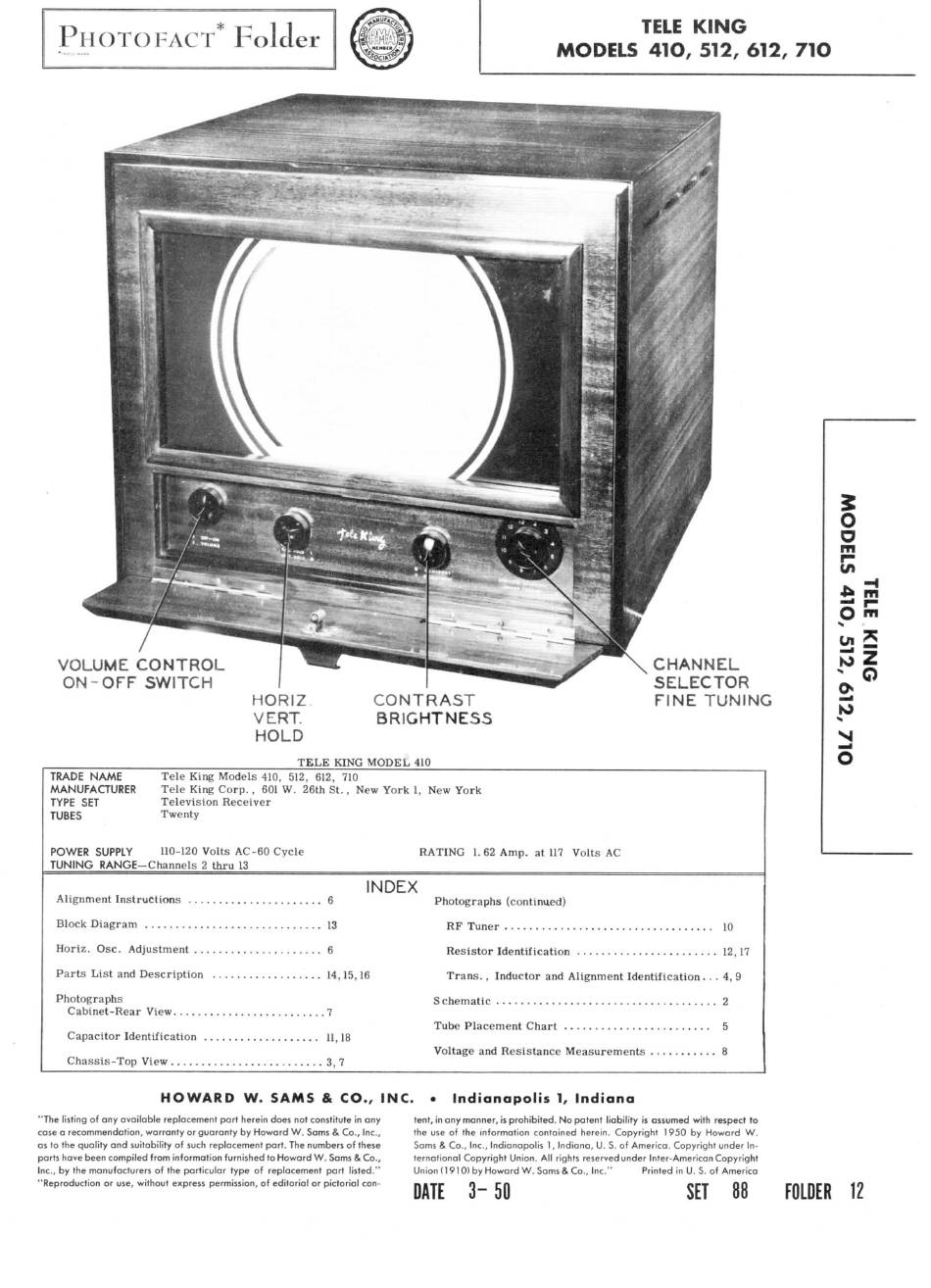

PHOTO FACT* Fold
er
TELE KING
MODELS 41O, 512, 612, 71O
VOLUME CONTROL
ON-OFF SWITCH
HORIZ
VERT.
HOLD
CONTRAST
BRIGHTNESS
CHANNEL
SELECTOR
FINE TUNING
TELE KING MODEL 410
TRADE NAME Tele King Models 410, 512, 612, 710
MANUFACTURER Tele King Corp. , 601 W. 26th St., New York 1, New York
TYPE SET Television Receiver
TUBES Twenty
POWER SUPPLY 110-120 Volts AC-60 Cycle
TUNING RANGE-Channels 2 thru 13
RATING 1. 62 Amp. at 117 Volts AC
Alignment Instructions 6
Block Diagram 13
Horiz. Osc. Adjustment 6
Parts List and Description 14,15,16
Photographs
Cabinet-Rear View 7
Capacitor Identification 11,18
Chassis-Top View 3 , 7
INDEX
Photographs (continued)
RF Tuner 10
Resistor Identification 12,17
Trans., Inductor and Alignment Identification.. . 4, 9
S chematic 2
Tube Placement Chart 5
Voltage and Resistance Measurements 8
o
o
m
O m
>
in 2
3 Z
to
N
^
O
H O W A R D W. S A M S & CO., INC. • Indianapolis 1, Indiana
"The listing of any available replacement part herein does not constitute in any
case a recommendation, warranty or guaranty by Howard W. Sams & Co., Inc.,
as to the quality and suitability of such replacement part. The numbers of these
parts have been compiled from information furnished to Howard W. Sams & Co.,
Inc., by the manufacturers of the particular type of replacement part listed."
"Reproduction or use, without express permission, of editorial or pictorial con-
tent, in any manner, is prohibited. No patent liability is assumed with respect to
the use of the information contained herein. Copyright 1950 by Howard W.
Sams & Co., Inc., Indianapolis 1, Indiana, U. S. of America. Copyright under In-
ternational Copyright Union. All rights reserved under Inter-American Copyright
Union (1 91 0) by Howard W. Sams & Co., Inc." Printed in U. S. of America
DATE 3- 50
SET 88 FOLDER 12
