Foshan Shunde Yunyi Household Technology Co., Ltd.
4th, 11/F, West Bldg., Block E, No. 6
Keyuan 3rd Rd., Ronggui St.,Shunde Dist.
Foshan, Guangdong
China
Customer Service: yunyiservice@outlook.com

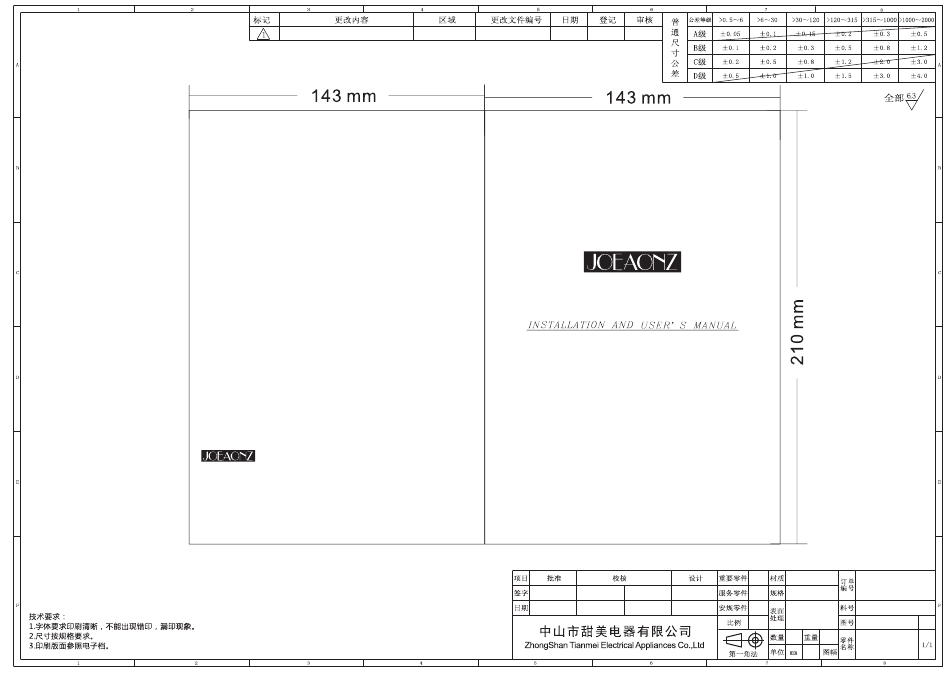

说明书框住地⽅内容有变
80克双胶纸
PI-1142-22-03
143*210
B53-TI02-2048-02-XX
C
2048说 明 书( J )
Advertisement
Summary of Contents for JOEAONZ YY0275B
- Page 1 Foshan Shunde Yunyi Household Technology Co., Ltd. 4th, 11/F, West Bldg., Block E, No. 6 Keyuan 3rd Rd., Ronggui St.,Shunde Dist. Foshan, Guangdong China Customer Service: yunyiservice@outlook.com 说明书框住地⽅内容有变 80克双胶纸 PI-1142-22-03 143*210 B53-TI02-2048-02-XX 2048说 明 书( J )
- Page 7 Install the mounting plate on the ceiling and then mark the position of the screw holes. The mounting plate should be securely fixed to the ceiling. (1)6*expansion bolts for cement ceiling. (2)11*ST4×30 screws for wooden ceiling. Calculation the total height of angle bars: “A”...
- Page 8 Put the lower chimney on the angle bars and slide it up until it almost completely overlaps the upper chimney. Then hang it with s-hooks to prevent it from sliding down (as left figure). Install the machine body onto the angle bars with 16 pcs of M5X10 screws(as left figure).
- Page 9 The hot bulb may hurt hands. Please switch off the power for 10 minutes before replace the bulb.
- Page 10 In order to install the carbon filter, the grease filter should be detached first. Press the lock and pull it downward. (Carbon filter is NOT included, need to order it separately.) Suggest changing to new one every 3 months (According to different kitchen condition, the life time of carbon filter might be longer or shorter than 3 months).
