Summary of Contents for Honey Can Do DRY-09387

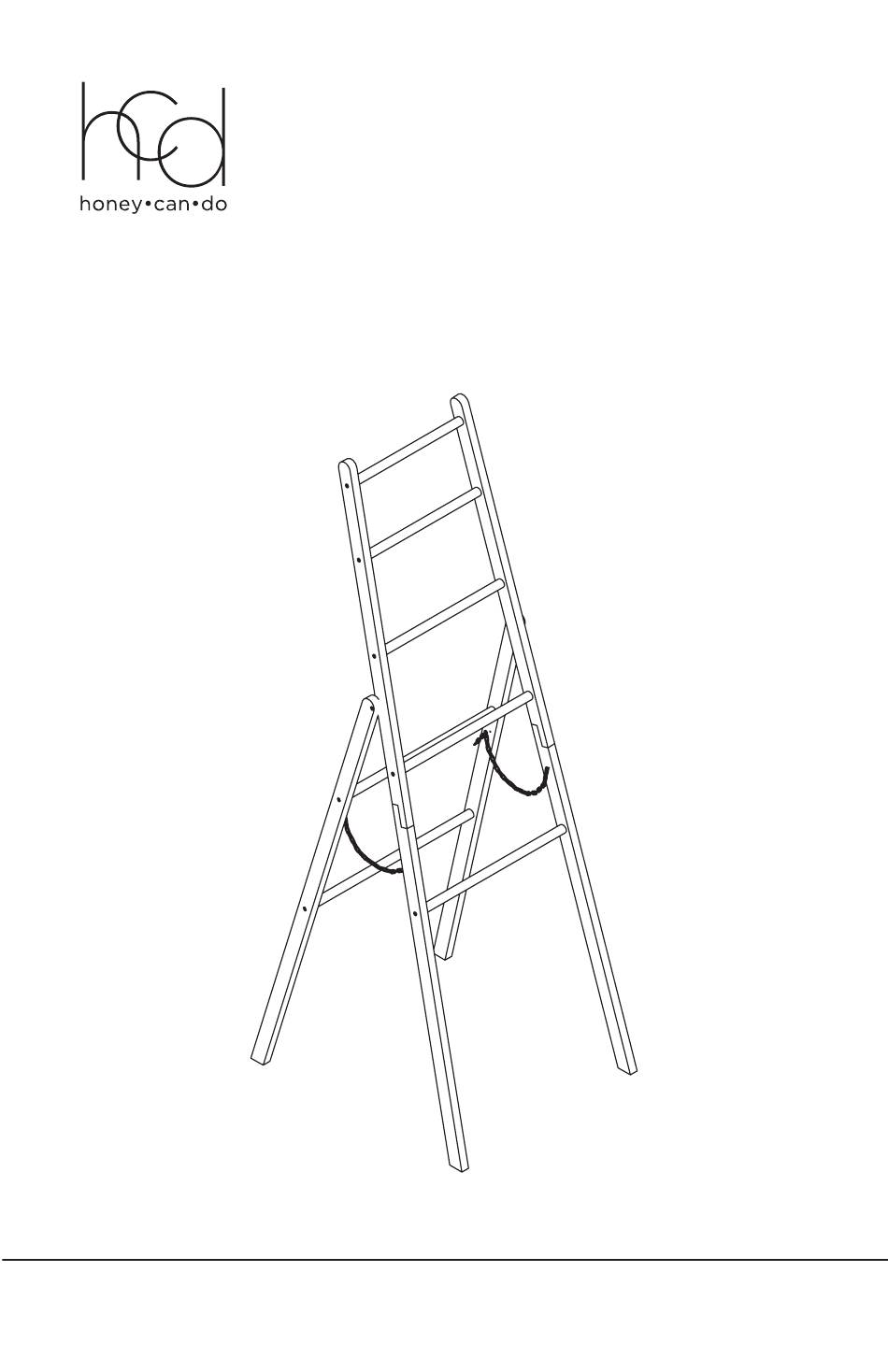

- Page 1 DRY-09387 bamboo ladder drying rack 20.47" L x 25.6" W x 62.6" H 877.242.2636 HONEYCANDO.COM | SUPPORT@HONEYCANDO.COM |...
- Page 2 PARTS LIST PART/ILLUSTRATION (QTY) DESCRIPTION ( 1 ) top left side frame ( 1 ) bottom left side frame ( 1 ) top right side frame ( 1 ) bottom right side frame ( 1 ) left back leg ( 1 ) right back leg ( 1 ) drying rod...
- Page 3 PARTS LIST PART/ILLUSTRATION (QTY) DESCRIPTION ( 1 ) drying rod ( 1 ) drying rod ( 1 ) drying rod ( 4 ) frame bolts (6 x 25mm) ( 1 4 ) rod screws (5 x 30mm) ( 2 ) back leg frame bolts (6 x 35mm) ( 1 )
- Page 4 ASSEMBLY Assemble front legs as shown. Rounded ends are on top. FRONT ROD ASSEMBLY NOTE: Must assemble rods in order shown. Honey-Can-Do...
- Page 5 ASSEMBLY Add left side frame. Attach left back leg and Add right leg. back rods in order shown. honeycando.com...
- Page 6 ASSEMBLY Attach chain support to both sides by hooking on screws. Can adjust angle in desired position. Honey-Can-Do...
- Page 7 ASSEMBLY Add non-skid foam feet. honeycando.com...
- Page 8 Honey-Can-Do International 5300 St. Charles Road, Berkeley, IL 60163 USA 877.242.2636 | honeycando.com | support@honeycando.com ©2022 Honey-Can-Do International, LLC | All Rights Reserved Visit youtube.com/myhoneycando to watch our assembly videos. 220811...
