Summary of Contents for AFERIY AF-P110

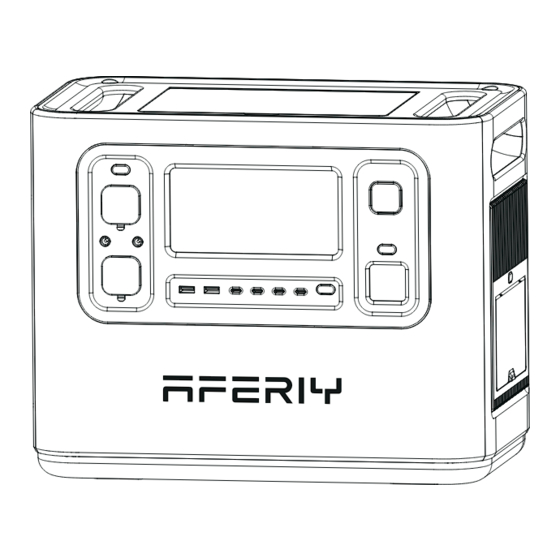

- Page 1 Portable Power Station A F - P 11 0 Us e r Ma n ua l 1200W...
- Page 2 According to the transportation requirements of the international customs for battery products, the battery level of this product is only less than 35% when it leaves the factory. Please fully charge the product after unpacking it to start the experience tour of AF-P110. Precautions For Use 1.
-
Page 3: Table Of Contents
Contents Packing List Product Introduction Button Function Introduction Introduction of Display Interface Troubleshooting table UPS Mode Connection of Solar Panels Car Charging Product Parameter Battery Specifications Disclaimer Warranty Card... -
Page 4: Packing List
According to the transportation requirements of the international customs for battery products, the battery level of this product is only less than 35% when it leaves the factory. Please fully charge the product after unpacking it to start the experience tour of AF-P110. MC4 to XT90 Plug... -
Page 5: Button Function Introduction
Button Function Introduction Power ON/OFF Button USB ON/OFF Button LED Light Button (Switch to different mode) DC ON/OFF Button LCD Screen Cooling Air Duct AC Button (manually switch to 50/60Hz) XT90 Input Port ( for solar panel) AC input Overload Protection Button Power ON/OFF Button Instructions: Press and hold the power button for 3S to wake up the system, turn on the LCD display, and press and hold again for 3S to turn it off. - Page 6 DC ON/OFF Button Instructions: Short press the DC button to turn on the DC output port, and short press again to turn it off. Dcoutput X 2 Cigarette port X 1 XT60 X 1 12V/3A 12V/10A 12V/25A LCD Screen Display the product's battery level and usage status tips. Cooling Suction/Exhaust Port When the product reaches the temperature threshold set by the system, the cooling fan will automatically run, accompanied by a cert-ain fan noise (fan noise below 60dB is...
- Page 7 Overload Protection Button When the power supply current is unstable due to lightning or other reasons, and there is a large current input at the AC Input, in order to protect the product, the overload protection function (safety circuit breaker) will activate and cut off the AC input port.
-
Page 8: Introduction Of Display Interface
Introduction of Display Interface Recharging Time Cigar Lighter (12V) XT60 (12V) Output Output Remain Using LED Light Fan Status High/Low Temperature Output Power in Total USB Output Protection Input Power in Total PD3.0 Output Connected to the AC Battery Progress Bar Mains DC (12V) Output XT90 Input... -
Page 9: Troubleshooting Table
3. Press the overload protection button, connectthe AC cable to restore the AC input lf you have any questions, please feel free to contact us. Email address: support@aferiy.com. Sincerely. -
Page 10: Ups Mode
UPS Mode UPS Feature This product has the function of backup uninterruptible power supply. The usage and operation precautions are as follows: As shown in Pic 1 below, when the product is connected between the wall socket and the electrical appliance, and the power supply and AC switch of the product are in the ON state, the product enters the UPS working mode. -
Page 11: Connection Of Solar Panels
Connection of Solar Panels Under the condition of light, this product can be connected to the solar panel and getting charged. The charging power is determined according to the conditions of light and weather. In this charging mode, we support solar panel input within 500W, and the input voltage cannot exceed 50V, otherwise the product abnor-mality caused by it will not be covered by the warranty. -
Page 12: Car Charging
Car Charging When the car is in the process of starting, connect the car charging port on the car and the product through the car charging cable to charge the product. The connection method is shown in the picture below: This product supports 12V/24V car charger charging, please pay attention to the following two points when using this method to charge: Please use it when the car started, otherwise the car battery may be exhausted. -
Page 13: Product Parameter
Product Parameter 1200W Portable Power Station Product Name Dimension L*W*H=392X230X315mm Weight 15.5kg Capacity 1248Wh AC Charging AC Mains Input, 700W max XT90 Input 11.5-50V 20A below 500W max 50/60Hz (switchable), rated 1200W, pure sine wave with AC Output overload, short circuit protection 18W)X2 USB-A Output (QC3.0... -
Page 14: Disclaimer
Users undertake to be responsible for their own actions and all consequences arising therefrom. AFERIY is not responsible for all losses caused by the user's failure to use the product in accordance with the User Manual. -
Page 15: Warranty Card
Warranty Card Warranty Card Model Name Address Mail Name of the store Buying date Please fill in all the above items. This product provides a 24-month warranty service from the date of purchase If there is a quality problem within the range of normal use, we provide warranty service. After purchasing our company’s products, please keep this product together with invoices and other items.
