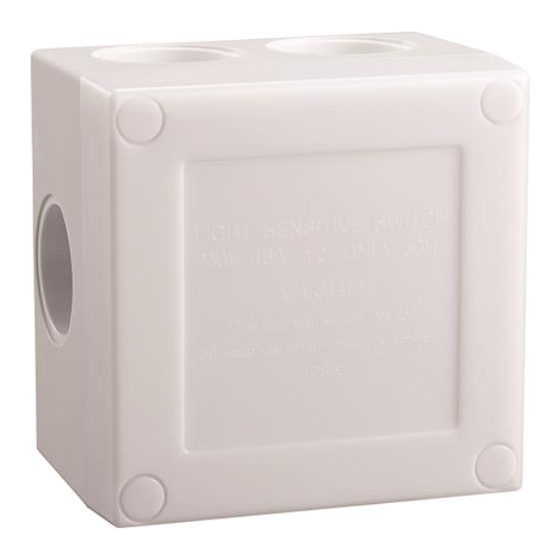

Product Code: SSS
Instructions
Specifications:
Voltage: 220-240V/AC
Rated Current: 16A
Working Temperature: -20~+40℃
Built-in Timer: 1, 2, 3, 4, 5, 6, 7, 8 & 9 Hours
Function:
➢
LUX setting: turn LUX knob anti-clockwise to "3" position, the photocell will only work in the
dark (less than 3 LUX). If you turn clockwise to "500" position, it will work when the ambient
light is less than 500LUX.
➢
TIME setting: set the regular working hours of the photocell as needed
Power Frequency: 50/60Hz
Ambient Light: <3-500LUX (adjustable)
Working Humidity: <93%RH
IP Rating/Class: IP66
Installation:
➢
Disconnect the power.
➢
Loosen the four screws on the cover and remove the front cover (figure1).
➢
Remove the end cap on the side and connect the wire as per wiring diagram (figure2).
➢
Use the attached accessories to seal with conduit glue (refer to figure 3 & 4)
➢
Install the 5 end caps included in the product as per (refer to figure 5).
➢
Tighten the base of the product with the enclosed screws and insert the screw caps (refer to
figure6). Make sure the screws are tight and not loose (onto the base)
➢
Mount the back the cover with enclosed screws and insert the screw caps (refer to figure7).
➢
Switch on the power, and then test.
FIGURE 1
FIGURE 2
FIGURE 5
(INCORRECT) CORRECT
FIGURE 3
FIGURE 4
FIGURE 6
FIGURE 7
