G6 MULTI-UNIT CHARGER INSTALLATION
AND OPERATION GUIDE
OVERVIEW
This manual applies to the following G6 multi-unit chargers:
•
ACC-G6-CHG-05-NA 5 Unit, North America
ACC-G6-CHG-05-EU 5 Unit, Europe
•
ACC-G6-CHG-05-AZ 5 Unit, Australia/New
•
Zealand
WARNING:
G6 multi-unit chargers shall only be powered by an external 24V AC/DC adaptor that is certified to
IEC-62368-1:2018 or an equivalent standard (e.g., part number TR70MA240-01E03 VI, AC input range: 100 to 240
Vac, manufactured by Cincon Electronics Co. LTD). The maximum current from the external 24V AC/DC charger
must not exceed 0.7A for the 5-unit charger (ACC-G6-CHG-05-XX) and 3A for the 25-unit charger (ACC-G6-CHG-
25-XX). The DC plug type of the external 24V AC/DC adaptor is Inner + Outer - (OD: 5.5 x ID: 2.1 x L:12mm).
G6 MULTI-UNIT CHARGERS

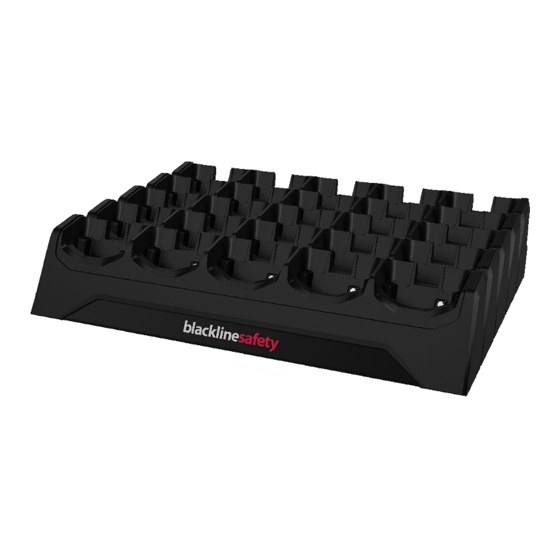

G6 multi-unit chargers are available in a 5-unit or 25-unit configuration, allowing you to charge
multiple G6 devices at the same time.

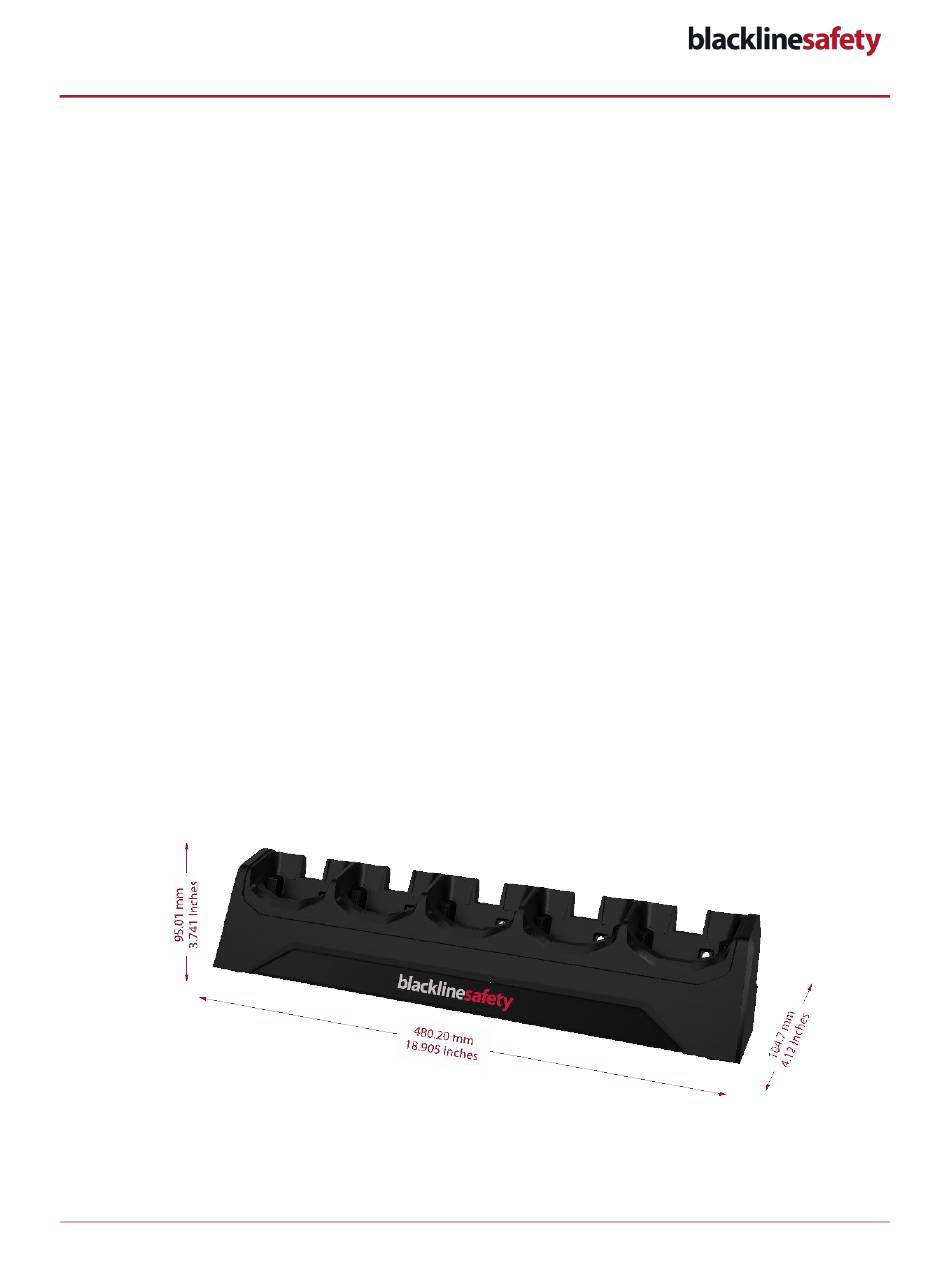

5-UNIT CHARGER (ACC-G6-CHG-05-XX)
©2023 Blackline Safety Corp
Rev. 02
•
ACC-G6-CHG-25-NA 25 Unit, North America
ACC-G6-CHG-25-EU 25 Unit, Europe
•
ACC-G6-CHG-25-AZ 25 Unit, Australia/New
•
Zealand
G6 Multi-Unit Charger Installation and Operation Guide | 1
2023-10-16
Advertisement
Table of Contents
Summary of Contents for BLACKLINE G6
- Page 1 Zealand WARNING: G6 multi-unit chargers shall only be powered by an external 24V AC/DC adaptor that is certified to IEC-62368-1:2018 or an equivalent standard (e.g., part number TR70MA240-01E03 VI, AC input range: 100 to 240 Vac, manufactured by Cincon Electronics Co. LTD). The maximum current from the external 24V AC/DC charger must not exceed 0.7A for the 5-unit charger (ACC-G6-CHG-05-XX) and 3A for the 25-unit charger (ACC-G6-CHG-...
- Page 2 INSTALLING THE MULTI-UNIT CHARGER ON A HORIZONTAL SURFACE Prior to installing the multi-unit charger, assess the intended installation area to make sure it meets the following criteria: G6 must be charged in a clean, gas-free environment between 0°C (32°F) and 45°C (113°F). • ©2023 Blackline Safety Corp G6 Multi-Unit Charger Installation and Operation Guide | 2 Rev.
- Page 3 CAUTION: The multi-unit charger should not be installed on vertical surfaces such as a wall without the optional wall bracket (ACC-G6-CHG-05-KIT-XX or ACC-G6-CHG-25-KIT-XX). If you are mounting the multi-unit charger on a wall, refer to Installing the Multi-unit Charger on a Vertical Surface.
- Page 4 1. Slide the two mounting brackets onto the central bar. Ensure the brackets fit snugly into the grooves on the outside of the central bar. ©2023 Blackline Safety Corp G6 Multi-Unit Charger Installation and Operation Guide | 4 Rev. 02 2023-10-16...
- Page 5 9. Slide the charger toward you to lock it in place. 10. Use a screwdriver to insert the provided screws through the tabs on the back of the charger into the bracket. ©2023 Blackline Safety Corp G6 Multi-Unit Charger Installation and Operation Guide | 5 Rev. 02 2023-10-16...
- Page 6 CHARGING G6 IN A MULTI-UNIT CHARGER G6 multi-unit chargers should only be operated and stored within the following environmental parameters: Operating temperature: 0°C to 40°C (32°F to 104°F) •...
- Page 7 To charge G6 devices in the multi-unit charger: 1. Place G6 devices into the charging slot. One of the following screens will display, indicating your device is charging. If the battery icon in the banner does not change to the charging icon, remove G6 and try inserting it again.
