Summary of Contents for MULTICHANNEL SYSTEMS TC02
- Page 1 Temperature Controller TC02 USER MANUAL Temperature Controller TC02 • Publication 20221020 • www.multichannelsystems.com...
-
Page 2: Table Of Contents
Limitation of Liability............................6 Hardware: INSTALLATION AND OPERATION ......................7 Welcome to the Temperature Controller TC02 ....................7 Setting Up and Connecting the Temperature Controller TC02 ................8 Operating the TC02 ............................9 Controlling the TC02 via TCX-Control Software ....................13 Setting up the TCX-Control Program ......................... - Page 3 Microsoft and Windows are registered trademarks of Microsoft Corporation. Products that are referred to in this document may be either trademarks and/or registered trademarks of their respective holders and should be noted as such. The publisher and the author make no claim to these trademarks. Temperature Controller TC02 • Publication 20221020 •...
-
Page 4: Important Safety Advice
Do not use the constant vacuum pump for perfusion with flammable or aggressive (corrosive) liquids. Do not store flammable materials nearby during operation. • • Check in regular intervals that the constant vacuum pump does not overheat. Temperature Controller TC02 • Publication 20221020 • www.multichannelsystems.com... -
Page 5: Guarantee And Liability
Inadequate monitoring of device components subject to wear. → Improperly executed and unauthorized repairs. → Unauthorized opening of the device or its components. → Catastrophic events due to the effect of foreign bodies or acts of God. Temperature Controller TC02 • Publication 20221020 • www.multichannelsystems.com... -
Page 6: Operator's Obligations
Multi Channel Systems MCS GmbH has been advised of the possibility of such damages. Temperature Controller TC02 • Publication 20221020 •... -
Page 7: Hardware: Installation And Operation

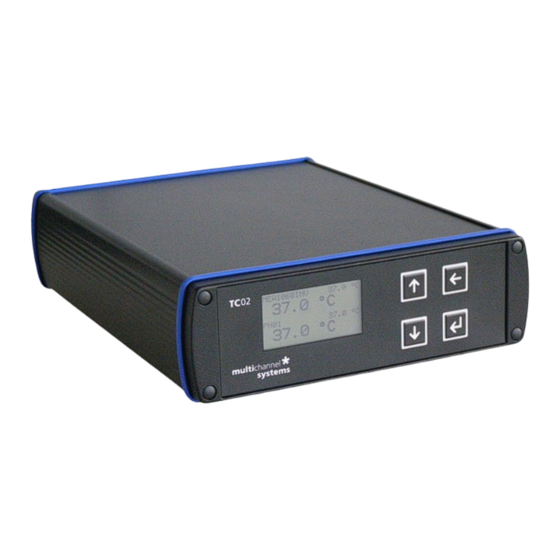

The outputs are galvanically isolated against ground, that is, the TC02 does not interfere with the experimental setup. The TC02 is a general purpose temperature controller for use of almost any kind of heating element. The PI coefficients are preset in the channel configuration defaults for MCS products. -
Page 8: Setting Up And Connecting The Temperature Controller Tc02
Appendix. Use of OP Table: Connect the TC02 to the heating element of the heating plate. Use the cable that is delivered with the heating system or use a custom cable. The cable is plugged into the female D-Sub9 socket labeled with "Channel 1". Connect the TC02 to the rectal thermometer. -
Page 9: Operating The Tc02
Starting the TC02 All functions are set in the menu of the TC02, including switching the TC02 on and off. If the TC02 is switched off, it goes into standby mode. The instrument and display are only switched off completely when the TC02 is disconnected from the power supply. Most of the power consumption of 6 W in standby mode is used by the power supply unit. - Page 10 If you want to restore the factory default settings, select the configuration that you would like to reset, and then select "MCS Defaults". For safety reasons, the "Edit" menu is locked each time the TC02 is switched off. You need to unlock it first by selecting "Unlock Edit"...
- Page 11 Resistance S Sensor resistance Board Temp Board temperature (The TC02 will switch off the channel outputs and go into stand-by mode when the board temperature reaches 90 °C Diagnosis 2: Controller Settings This diagnose screen view is used for reviewing and checking the user settings.
- Page 12 Output current applied to heating element HE Resistance Heating element resistance (voltage-current ratio) HE Power Output power delivered to heating element (voltage-current product), should be 80 - 90 % of Power Out, depending on heating element resistance) Temperature Controller TC02 • Publication 20221020 • www.multichannelsystems.com...
-
Page 13: Controlling The Tc02 Via Tcx-Control Software
Controlling the TC02 via TCX-Control Software Instead of configuring your TC02 via the front panel controls, you can also connect it to a PC with standard USB 2.0 cable and use the software TCX-Control. With this software, you can control all functions of one or more TC02 and it is also possible to read out the actual temperature values on your computer and save the data as a ".txt"... - Page 14 Extended Information It is possible to display the extended information with all parameters from the TC02. Click "Show extended information" button in the main menu. These values can be saved to an ASCII file by pressing "Export diagnostics". The default settings for P and I coefficients and maximum power for the different devices can be modified under "Device"...
- Page 15 Reset the TCX: In the main menu display of the temperature controller select "Setup" and "Factory Reset" to apply the new firmware with MCS default settings for all devices, respectively. Temperature Controller TC02 • Publication 20221020 •...
-
Page 16: Appendix
APPENDIX APPENDIX Control via Front Panel Version: Standard MEA-IT-System • Publication 20220729 • www.multichannelsystems.com... -
Page 17: Version: Customer Ii
TCX CONTROL SOFTWARE Version: Customer II Temperature Controller TC02 • Publication 20221020 • www.multichannelsystems.com... -
Page 18: Version: Customer Iii
TCX CONTROL SOFTWARE Version: Customer III Temperature Controller TC02 • Publication 20221020 • www.multichannelsystems.com... -
Page 19: D-Sub9 Pin Assignment
Parameter Ranges The setpoint temperature and the PI coefficients can be modified in the following ranges. The maximum power of the TC02 is 30 W. If you connect a device with a maximum power less than 30 W, please decrease the maximum power to protect the device against destruction. -
Page 20: Technical Specifications
Pt 100 Measuring method four wire measuring bridge Measuring temperature range 0 °C to 105 °C Number of output channels 2 (TC02) Output voltage max. 24 V Output current max. 2.5 A per channel Output power max. 30 W per channel Resistance of heating element 5 - 100 Ω... -
Page 21: Contact Information
CONTACT INFORMATION CONTACT INFORMATION Local retailer Please see the list of official MCS distributors on the MCS web site. Mailing list If you have subscribed to the newsletter, you will be automatically informed about new software releases, upcoming events, and other news on the product line.
