Summary of Contents for Z-EDGE ZAI03

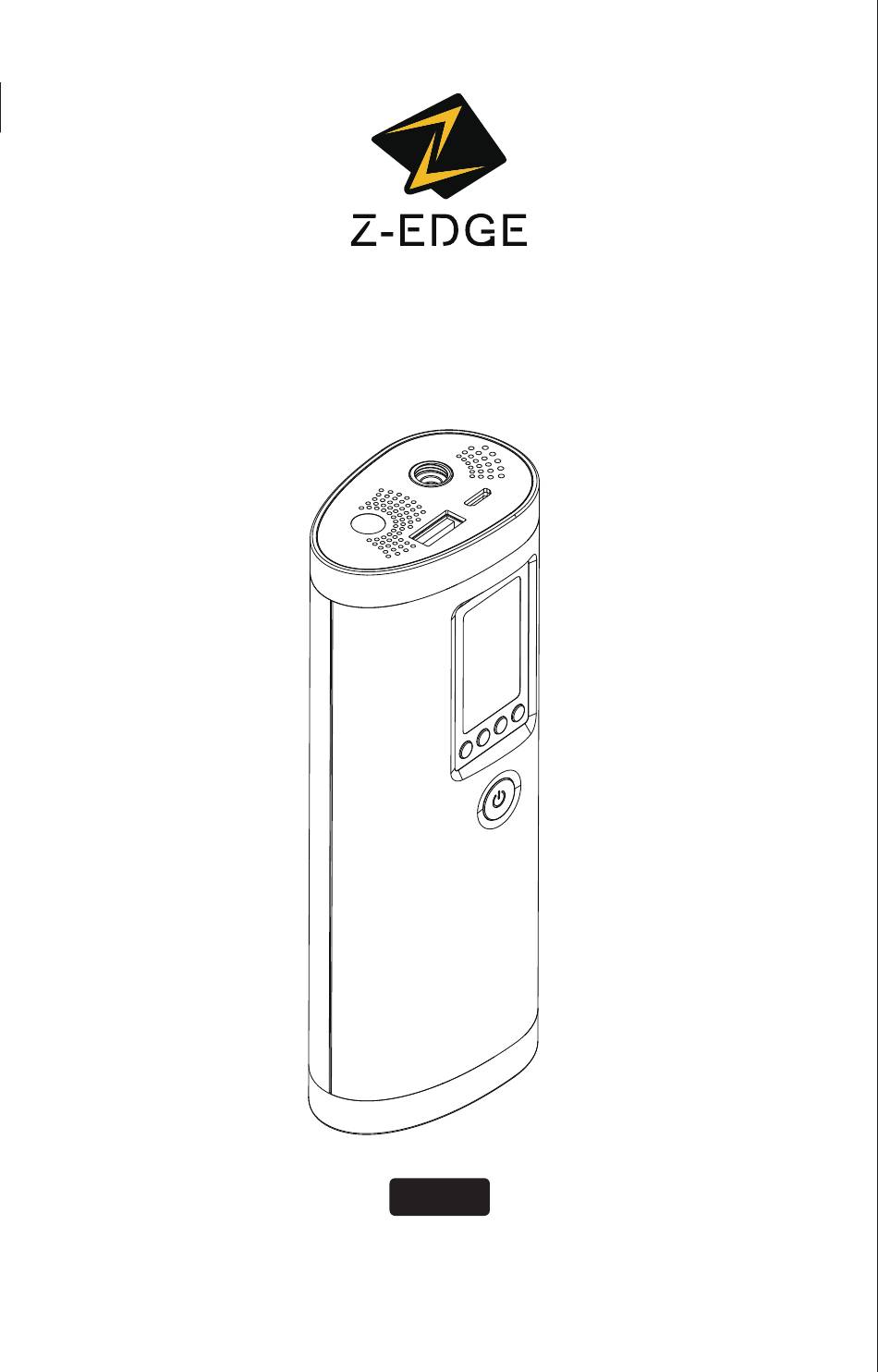

- Page 1 PORTABLE AIR INFLATOR & POWER BANK ZAI03 USER GUIDE Please be sure to read this manual carefully before use.
-
Page 2: Safety Information
The product and hose will get hot after prolonged use. Children are not allowed to use or play with it. ACCESSORIES LIST (1) Storage Bag (1) ZAI03 (1) Hose (1) Type-C Charging Cable (1) Presta Valve Adapter (1) Ball Needle Adapter... -
Page 3: Product Overview
PRODUCT OVERVIEW Exhaust Digital Display Hose Connection Battery Indicator Type-C Port (Input) Unit of Measurement USB Charging Port (Output) Process Bar LED Light Preset Pressure Display Screen Scene Modes Control Button Inlet Power Button... -
Page 4: Control Button
Press & Hold (3 Seconds): Continual increase until released Press Decrease 1 PSI / BAR / KPA Press & Hold (3 Seconds): Continual decrease until released Press Switch scene modes Press Activate air inflator Press & Hold (3 Seconds): Power ZAI03 on/off... - Page 5 ADAPTER COMPATIBILITY The connection of the hose is shown in the following figure: Schrader Valve (On the hose[C]) Suitable for Cars, Trucks, Trailers, Motorcycle, Tires & more Just connect it directly. Presta Valve Suitable for Bicycle Tires Ball Needle Suitable for Basketballs, Soccer, Balls, Footballs, Volleyballs, etc Plastic Nozzle...
- Page 6 The product cannot be used during charging. 2. Power On/Off Power On Power Off Press the power button for 3 Press the power button for 3 seconds to power on. seconds to power off. Note: Z-EDGE ZAI03 will automatically turn off after 3 minutes of inactivity.
- Page 7 3. Mode Switching Press "SET" button to switch between the following five inflation scenarios. Select the correct inflation scene before inflation. Refer the default settings (below). MODE Range 0-65 PSI Motorcycle 0-55 PSI Bike 0-100 PSI 0-15 PSI Ball Customize 0~150 0~10 0-100 PSI...
- Page 8 USB output port. 2. Press the "Power Button"[8] to power on the ZAI03. The device will begin to charge. *When the power bank battery is low or your device is fully charged, the inflator will shut down.
- Page 9 9. Measuring Pressure After switching on, connect the air pipe to the measured object, and the measured pressure value[9] shows the current pressure value. Note: Products whose pressure are below the inflator's mininum range, such as alloons, swimming rings, and ball for kids,cannot be measured pressure.
-
Page 10: Specification
SPECIFICATION Model: ZAI03 Battery Capacity: 2000mAh / 14.8Wh Inflation Pressure: 150PSI(Max.) Charging Input: Type-C 5V / 2A USB Output: 5V / 1.5A Charging Time: ±3H Dimension: 6x2.3x1.5inch / 152x60x38mm Weight: 0.85LB / 385g Working Temperature: 14-113°F / -10-45°C Common unit conversion: 1BAR = 14.5PSI, 1BAR = 100KPA. - Page 11 NOTES · Before inflating, please confirm the air pressure value required by the item need to be inflated to avoid injury caused by over-inflation bursting. · The product has a built-in non-removable lithium battery. Please do not throw the product into fire or discard it carelessly. The lithium battery may cause fire, spontaneous combustion or explosion due to overheating, impact and water ingress.
-
Page 12: Troubleshooting
TROUBLESHOOTING Malfunction Solution 1. Check whether the power is sufficient. 2. Check if the air hose is leaking. Slow Inflation 3. Check whether the connection parts at both ends of the air hose are tight. 1. Check whether the air hose is pulled out, you need to pull out the hose to start inflation. -
Page 13: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 14: Customer Support
CUSTOMER SUPPORT Zeroedge Technology owns the copyright for this manual. The contents of this manual are subject to change without notice to improve quality. For customer support inquiries please contact: support.us@z-edge.com(US) support@z-edge.com(EU/Other) www.z-edge.com @zeroedgeGA @zeroedgeGA @zeroedgeGA @zeroedge Follow us to get the latest updates. -
Page 15: Warranty
WARRANTY Thank you for choosing Z-EDGE. Your satisfaction is always our first priority. All Z-EDGE customers have a 30-day money back guarantee, to make sure your shopping experience is worry-free. By default, the unit warranty-period is set to 12 months from the unit-shipped date. - Page 16 To view the complete user manual, please visit: ZAI03Z23UMEN-01...
