AGT DY14 Product Manual

Excavator 14-paragon with thumb clamp
Hide thumbs
Table of Contents

Advertisement

Quick Links

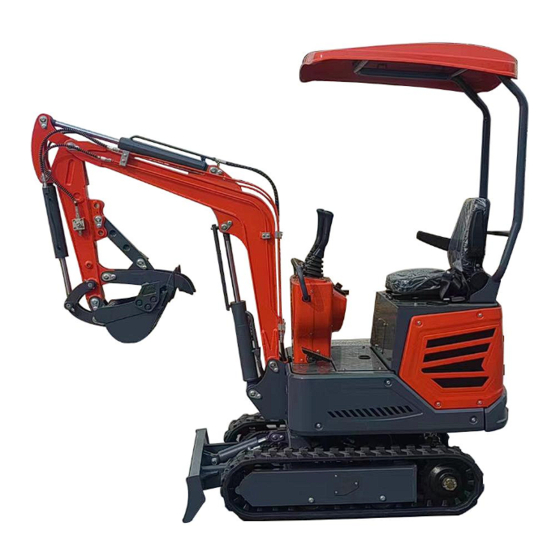

AGT-DY14 Excavator 14-Paragon With Thumb Clamp
 Please read the product manual completely before
WARNING
 Check against the parts list to make sure all parts are
 Wear proper safety goggles or other protective gears while
Missing parts or questions on assembly?
Pleasecontact sales@agrotkindustrial.com
sales@agrotkindustrial.com
PRODUCT MANUAL
assembly
received
in assembly
https://www.agrotkindustrial.com/
https://www.agrotkindustrial.com
/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DY14 and is the answer not in the manual?

Questions and answers

Related Manuals for AGT DY14

Summary of Contents for AGT DY14

  • Page 1 PRODUCT MANUAL AGT-DY14 Excavator 14-Paragon With Thumb Clamp  Please read the product manual completely before assembly WARNING  Check against the parts list to make sure all parts are received  Wear proper safety goggles or other protective gears while...
  • Page 2 Preface Dear users: Thank you for your trust and love for our products ！ The mini-excavator manufactured by the Company is a small excavator which is mainly used for the excavation operation, hoisting as well as loading and unloading. The mini- excavator has compact design structure, proper power, good product stability and high-cost performance, and meets the requirements of excavation, loading and unloading under different operating conditions such as plains,...
  • Page 3 User attention If the contents of this manual do not consistent with the machine you use or have any other questions, please contact your company immediately after sale. Security related information Most of the accidents related to operation operations, inspection, maintenance, and repair operations are caused by basic negligent safety precautions and hazard forecasts.
  • Page 4 appropriate. Don' t wear it loose or broken damaged clothes. Remove all of the rings while working off the machine. 3 . Remove the battery negative line and hang the "Do not operate" sign in front of the cab before repairing the machine. 4 .
  • Page 5 1 9 . Relax or damaged fuel pipes, oil pipes and hydraulic pipes are dangerous. So you should wear work clothes at work, but do not wear loose or damaged clothes service, because the hydraulic oil pipe may cause a fire. Do not fold or tap the high pressure pipe, damaged pipe do not use again.

  • Page 6: Table Of Contents

    Table of Contents Safety precautions..................1 Precautions before preparation and during start-up........6 Schematic diagram for safety signs:............8 Precautions during operation..............14 Traction precautions:.................20 Hydraulic breaking hammer..............22 Precautions when stopping:..............24 Precautions during transportation:............25 Maintenance precautions................27 Regular inspection and maintenance:............29 Waste disposal:..................

  • Page 7: Safety Precautions

    Safety precautions It is your responsibility to comply with the safety regulations and laws of relevant departments, and to operate, inspect and maintain the mini- excavator as required by the manufacturer. In fact, all accidents are caused by non- compliance with basic safety regulations and precautions.
  • Page 8 Do not wear loose clothing or decorations that may be hung on the control lever. Avoid collision with the operating handle, thus resulting in operation and collision with mini- excavator. Wear safety shoes, helmets, safety glasses, filter masks, gloves, ear protection and other protective equipment according to the requirements of the working environment.
  • Page 9 Arrangement of signalman and flagman Learn how to use the gestures required in a specific job and identify the person who are responsible for making gestures. All person must fully understand all gestures. The operator must only make a respond to the gesture of the designated person, but must obey the shutdown gesture issued by anyone at any time.
  • Page 10 Avoidance of fire and explosion hazards Do not smoke or have open flames when operation the mini- excavator with fuel or fuel systems. Do not carry fire sources, inflammable and explosive articles. Do not leave the operation site when replenishing fuel or lubricating oil to the mini- excavator.
  • Page 11 there is looseness, the hose or pipe will be damaged due to vibration or contact with other parts during operation. This may cause high- pressure oil to be sprayed out, thus causing fire or injury. Protection against harmful gases When working in poor ventilation or sealed environment, pay attention to wearing protective masks and adding exhaust devices.

  • Page 12: Precautions Before Preparation And During Start-Up

    Precautions before preparation and during start-up Precautions for preparation before operation: Understand the operation environment: before operation, understand the operation area to ensure operation safety. Check the terrain and ground conditions in the operation area, check the building structure during indoor operation, and take safety measures if necessary. Remove dangerous objects and obstacles in ditches, underground pipelines, trees, cliffs, overhead power lines, falling rocks and landslides.
  • Page 13 handrail, support your weight in a three- point safe posture ( hands and feet) . Do not pull the control operation lever. Check whether there are " do not operate it" warning signs or similar signs on the cab, brake or start switch. If such warning signs exist, please do not start the engine or touch any operating lever.

  • Page 14: Schematic Diagram For Safety Signs

    Preheat engine and hydraulic fluid. In cold weather, after the mini- excavator is started, the engine should idle for 2 to 5 minutes. If the control lever is operated without warm- up, the mini- excavator will not react or move quickly or properly, which may cause accidents.
  • Page 15 4. Sign away from turning area: This sign is located on the rear counterweight. ▲ No one is allowed to stand within the rotating area of the mini-excavator. ▲ Do not damage or remove the sign from the mini-excavator. 5. Fuel sign: This sign is located at the fuel tank filler.
  • Page 16 7 . No one is allowed to stand in the operation area: this sign is located on both sides of the working arm. 8 . Stay away from the excavation area: this sign is located on both sides of the bucket arm.
  • Page 17 9 . Hydraulic tank sign: this sign is located on the housing at the hydraulic oil tank. 1 0 . Danger sign for hydraulic oil tank : this sign is located on the tank cover plate. The precautions recorded in this manual and the label with symbol posted on the mini- excavator are important items that may lead to personal accidents.
  • Page 18 Sign on precautions The operation manual determines the matters needing special attention when using the mini- excavator as follows: It means that failure to observe the precautions will result in death or serious injury. It means that failure to observe the precautions will result in death or serious injury. It means there is a risk of injury ifprecautions are not followed.
  • Page 19 and grease. 3 . Operation diagram for working device ▲ Check whether the mini- excavator control mode is consistent with that indicated on the label. If there is a difference, replace the label before operating the mini- excavator to match the mini- excavator control mode. ▲...

  • Page 20: Precautions During Operation

    Precautions during operation of the mini-excavator: Ensure good line of sight: when working in a dark place, turn on the work lights and headlights of the mini- excavator, and install additional lighting, ifnecessary. When the line of sight is poor due to bad weather (fog, snow, rain or haze), stop operating the mini- excavator until the line of sight improves.
  • Page 21 On uneven roads, you should keep the mini- excavator walking at a low speed to avoid sudden starting, stopping or changing direction. Otherwise, the working device may come into contact with the ground and cause the mini- excavator to lose balance and damage or damage the building structure in the surrounding area.
  • Page 22 Do not reverse down the slope. Do not change the direction of movement of the mini- excavator on a slope or cross slope. First return to the flat ground, and then choose another path. When moving on gentle slopes covered with grass or dead leaves, or on wet metal plates or frozen ground, the mini- excavator may slip sideways.
  • Page 23 The mini-excavator should keep a safe distance from the high-voltage cable during the driving or working. High voltage cables buried underground ( as shown in the figure below) . Before construction, confirm with relevant personnel whether there are underground cables at the construction site.
  • Page 24 Do not work in the environment with collapse or rockfall hazards, and take corresponding protective measures. When the mini- excavator is operated on a slope or ramp, the swing or operating device may cause the mini- excavator to lose stability and overturn. Do not operate the mini-excavator on a slope as far as possible.
  • Page 25 When the mini-excavator is running or working, pay attention to the height between the mini- excavator and the top of the construction environment. Please do not make the mini- excavator overload or overlength during hoisting. Ov erload can result in the overturn of the mini- excavator, thus resulting in serious injury to personnel or death.

  • Page 26: Traction Precautions

    Traction precautions: Serious injury or death may result from improper operation, use of wrong cables or improper inspection when towing the mini- excavator. This can be dangerous if the cable is broken or disengaged. Please use the steel wire rope matching the traction force, and do not use the twisted, twisted or even damaged cable;...
  • Page 27 Leveling Put the bucket working device close to the mini-excavator body. Slowly push the soil away from the side of the mound. When the height of the soil mound is low, push the soil from its top. If the load is too heavy, raise or lower the bulldozer blade for the mini-excavator. Handling rubber caterpillar band: Due to the use of rubber, the rubber caterpillar band has an inherent weakness, that is, lack of strength.

  • Page 28: Hydraulic Breaking Hammer

    Do not use the bucket operation device to rotate the frame when raising it in front of the mini-excavator (there is no rotation on the mini-excavator). Otherwise, the load will be concentrated on the caterpillar band, and the single point is to twist the track, resulting in rapid damage and falling off of the caterpillar band.
  • Page 29 In order to avoid hitting the air, during crushing, the hammer head shall be properly aligned with the object to be crushed. Do not pry the working surface with a hammer, and do not pry the working surface when it is broken; Do not move the hammer head when breaking. On the same surface, do not impact continuously working surface for more than 30 seconds.

  • Page 30: Precautions When Stopping

    Precautions when stopping: Park the mini-excavator on flat, firm and safe ground.

  • Page 31: Precautions During Transportation

    If it is necessary to park or tilt the mini-excavator on a slope, park the mini- excavator firmly and prevent the mini- excavator from moving. When parking on the street, grids, warning signs, lights, etc. shall be used to make the mini-excavator easy to see even at night to avoid collision with other vehicles.
  • Page 32 During loading and unloading, the mini- excavator may overturn or fall. Please take the following safety measures: Select a solid and flat ground and keep a sufficient distance from the shoulder; Fix the ramp of sufficient strength and size to the truck compartment, the slope of the ramp shall not exceed 15 degrees.

  • Page 33: Maintenance Precautions

    described below. Do not operate the mini- excavator in any other way, otherwise the mini- excavator may be out of balance. Do not carry out hoisting operation when there are operators on the mini- excavator. Please lift the mini- excavator slowly to avoid overturning. Keep all personnel away from the operation area during hoisting.
  • Page 34 Leakage of lubricating oil or fuel oil can cause fire disaster. Do not twist, bend or strike the hose. Twisted, bent or cracked pipes, metal pipes or hoses shall not be used, otherwise explosion may occur. Retighten the loose joint. Precautions for operating high temperature and high pressure parts: 1 .Please shut down the engine and wait for the mini-excavator to cool down before maintenance.

  • Page 35: Regular Inspection And Maintenance

    positive (+) and negative (-) clamps of the battery charging line or contact the mini- excavator. Wear goggles and gloves when maintaining the battery. 3 . If having any questions to consult during use and maintenance, you can contact the company' s sales or after- sales personnel at any time to learn more about the use and maintenance of the equipment.
  • Page 37 Regular inspection and maintenance Remarks: 1 . When using hydraulic front- end working devices such as breaking hammer, please replace the hydraulic front- end working device in the following way according to the service times of the hydraulic front-end working device: Use time ratio of Replacement time of Replacement time of...

  • Page 38: Waste Disposal

    Recommended lubricants: Engine oil Hydraulic oil Manufacturer Gear oil DelvacMX( 15W-40) Delvac Automotive gear oil Surper Multigrades DTE 25(VG46) Mobil Mobilube HD 80W-90 (10W-30/ 15W-40) Superfl (10W-40) Gear oil GX80W-90 ESSO NUTO H46 RIMULA(SAE10W-30) Tellus ST46 SHELL SPIRAX EP90 (RX Super) SAE 15W-40;...
