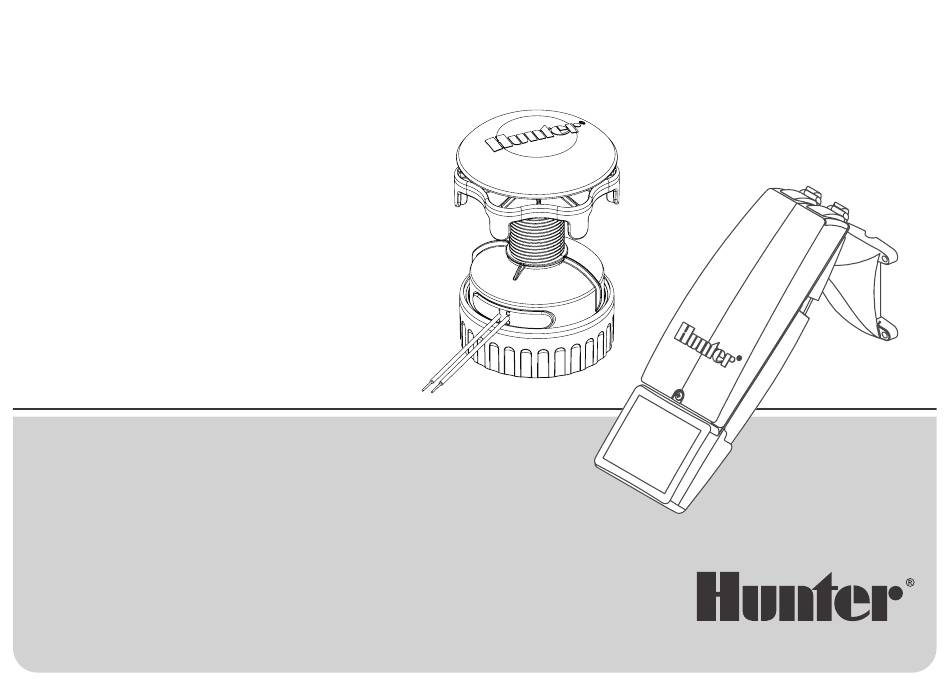

WVL SOLAR PANEL
INSTALLATION GUIDE
SP-WVL
Solar Panel for Wireless Valve Link Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-WVL and is the answer not in the manual?

Questions and answers

Summary of Contents for Hunter SP-WVL

  • Page 1 WVL SOLAR PANEL INSTALLATION GUIDE SP-WVL Solar Panel for Wireless Valve Link Systems...
  • Page 2: Table Of Contents

    Table of Contents Components Components Solar Panel Installing the Solar Panel 2. 40' (12 m) Cable and WVL Solar End Cap Connection WVL App Setup 3. Solar Panel Ball Mount Notices 4. Wall-Mount Hardware Support ➋ ➊ ➌ ➍...
  • Page 3: Installing The Solar Panel

    Installing the Solar Panel ① ② Remove the lock nut, end cap, and 9 V batteries from the existing Wireless Valve Link. 2. Feed the entire bundle of Solar Panel wire through the end cap lock nut. 3. Plug cable into connector within Wireless Valve Link battery compartment.
  • Page 4 Installing the Solar Panel Feed the red and black wires up through the Solar Panel ball mount. 2. Install the ball mount where the Solar Panel will be located using one of the following methods: • Use the four included screws and anchors for drilling into a wall or flat surface.
  • Page 5 Installing the Solar Panel Open the Solar Panel cover and attach the Solar Panel over the ball mount. Make sure the red and black wires are coming through the ball mount into the Solar Panel housing and have enough slack to reach the (+) and (–) terminals. 2.
  • Page 6: Wvl App Setup

    When using the Solar Panel with a Wireless Valve Link, use the Bluetooth ® enabled Hunter Wireless Valve Link App to designate the Wireless Valve Link as "Solar Powered." Open the Wireless Valve Link App and connect to the Wireless Valve Output Module (WVOM).
  • Page 7: Notices

    Notices Support Batteries should be recycled or disposed of separately from Scan to access helpful information about your product, including household waste and according to local environmental laws installation tips, controller programming, and more. and guidelines. SCAN for help hunter.help/WVL...
  • Page 8 Notes...
  • Page 9 Notes...
  • Page 10 HUNTER INDUSTRIES | Built on Innovation® The Bluetooth word mark and logos are registered trademarks ® owned by Bluetooth SIG Inc. and any use of such marks by Hunter 1940 Diamond Street, San Marcos, CA 92078 USA Industries is under license. hunterindustries.com ©...
