Summary of Contents for HENWICK IP08-MX200

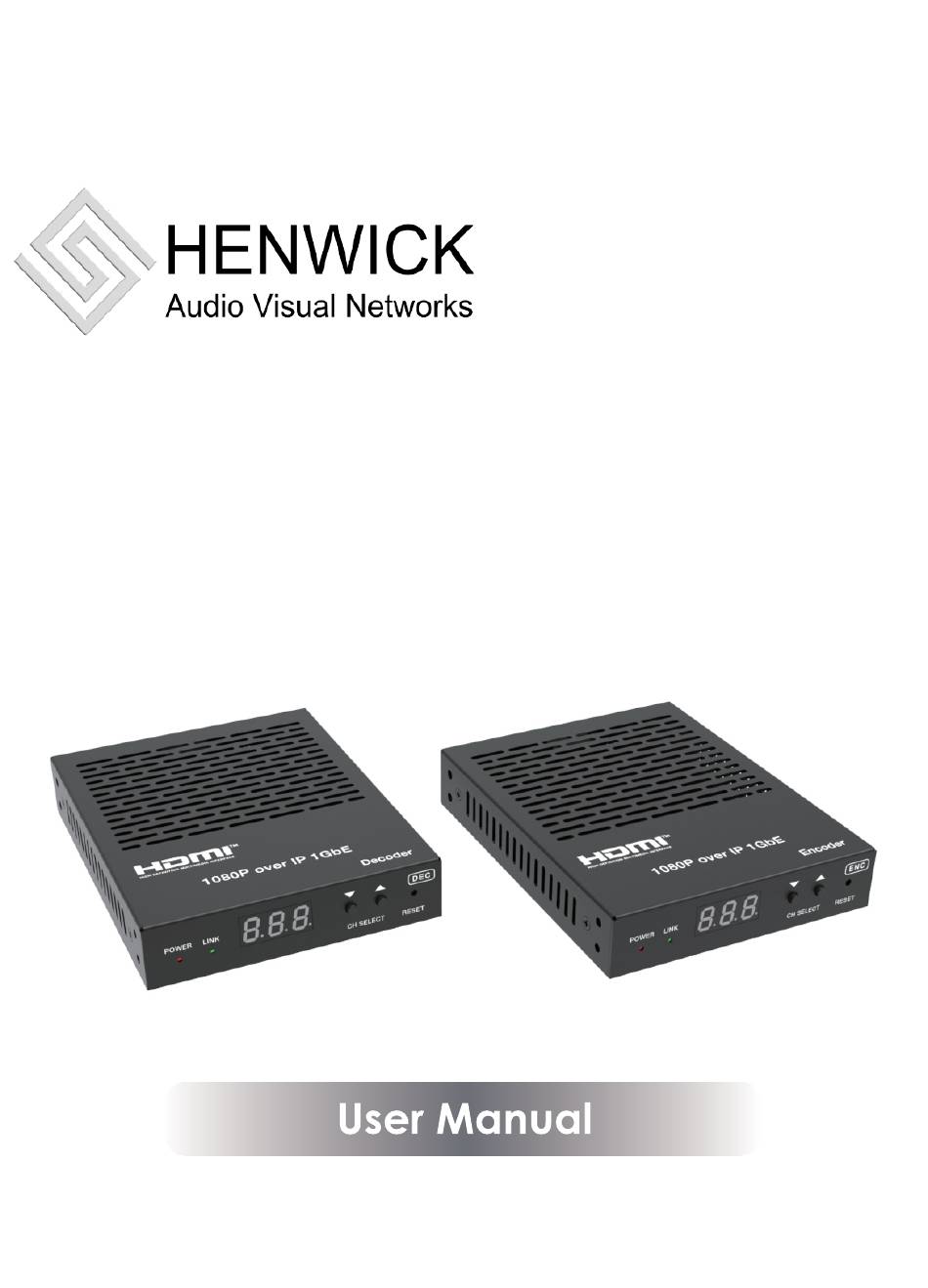

- Page 1 Code: IP08-MX200 SKU: AV-VR-IP-TRN 1080Pover IP 100M/1GbE with Video Wall Processing VER 1.1...
-
Page 2: Table Of Contents
Thank you for purchasing thisproduct For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protectiondevice recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The AV over IP product distributes multiple HD contents to multiple HD display devices over a 100M/1G Network Switch. It offers configurable high quality, low-bandwidth H.265/H.264 configurable compression video and supports resolution up to 1920x1200@60Hz 4:4:4. Signal transmission distance can be extended up to 328ft / 100m via CATE5E/6/6A/7 cable. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 Video Bandwidth 4.95Gbps Video Compression H.265/H.264 Standard Transmission 100m (CAT5E/6/6A/7) Distance Video Resolution Up to 1920x1200@60Hz 4:4:4 Color Space RGB4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Color Depth Output: 8-bit Audio Formats... -
Page 5: Operationcontrolsandfunctions
5. Operation Controls and Functions 5.1 Encoder Panel EN C POWER LINK CH SELECT R E S E T DC 12V HDMI IN AUDIO IN/OUT RS-232 Name Function Description POWER LED The LED flashes at 1 Hz during the system startup, and the LED is always on after the startup is complete. - Page 6 CH SELECT Used to set Encoder ID and other settings. System reset button. Press and hold this button for 5 RESET seconds, the system will restart and restore factory Settings. RS-232 serial port, supporting signal pass-through and local RS-232 serial port control. AUDIO IN: Analog stereo audio input port.
- Page 7 4, For Channel ID settings, press the UP or DOWN button to display the current ID number (e.g. 001) on the LED screen. Press and hold UP + DOWN buttons for 5 seconds, then release to enter the “ID Settings” mode. The ID number (e.g. 001) on the LED screen will flash at 1Hz, then press the UP or DOWN button to select the Channel ID you desired, then press and hold UP + DOWN buttons for 5 seconds to confirm the setting and stop flashing.
-
Page 8: Decoderpanel
5.2 Decoder Panel D EC POWER LINK CH SELECT R E S E T DC 12V HDMI OUT AUDIO OUT RS-232 Name Function Description The LED flashes at 1 Hz during the system startup, and the POWER LED LED is always on after the startup is complete. (Red) Network connection status LED. - Page 9 100M/1G Network port. Connect to a Switch/Router/Hub for LAN (POE) data transmission or POE function. Link Signal ▪ Illuminating: The network cable is connected normally. Indicator lamp ▪ Dark: The network cable is not connected well. (Green) Data Signal ▪ Flashing: There is data transmission. Indicator lamp ▪...
-
Page 10: Rack Mountinginstruction
The corresponding output resolution ID is as follows: Resolution ID Resolution Description Pass Through (default) 1080P60 1080P50 1080P30 1080P25 1080P24 720P60 720P50 576P50 480P60 640X480P60 800X600P60 1024X768P60 1280X800P60 1280X1024P60 1366X768P60 1440X900P60 1600X1200P60 1680X1050P60 1920X1200P60 6. Rack Mounting Instruction 6.1 4U Rack Mounting This product can be mounted in a standard 4U rack (Please contact your supplier for 4U rack sale). - Page 11 Step 1: Use included screws to fix two mounting ears on the product, as shown in the figure below: Step 2: Insert the product with mounting ears into a 4U rack (up to 12 units can be installed vertically), as shown in the figure below: Step 3: Use screws to fix mounting ears on the rack to complete the mounting, as shown in the figure below: 9/21...
-
Page 12: Urack Mounting
6.2 1U Rack Mounting This product also can be mounted in a standard 1U rack (up to 8 units can be installed horizontally). The mounting steps are as follows: Step 1: Stack two products on top of each other, then use included screws to fix two 1U rack panels on the products, as shown in the figure below: Step 2: Fix two 1U rack panels on another two stacked products in the same way, then use screws to fix two 1U rack panels together, as shown in... -
Page 13: Encoder And Decoder Matching Settings
7. Encoder and Decoder Matching Settings When multiple Encoders and Decoders are in the system without a Controller Box, it is necessary to match them well firstly. You can match all Encoders and Decoders in following two methods. Method 1: Use the CH SELECT buttons on the front panel of the Encoder/ Decoder. -
Page 14: Web Gui Userguide
8. Web GUI UserGuide You can use the built-in Web GUI to configure all products through a Switch. The operation method is shown as below. Step 1: Match all Encoders and Decoders as described in Chapter 7. Step 2: Connect the PC and IP products you need to configure to a Switch. The connection diagram is shown as below. - Page 15 Step 3: Press and hold the (CH SELECT) UP button on the front panel of the Encoder/Decoder for 5 seconds to check the IP address. (Please refer to Chapter 5 for details.) Step 4: Set the PC’s IP address to be in the same network segment with the Encoder/Decoder, for instance, set the IP address to be 169.254.3.150 and Subnet mask to be 255.255.0.0.
- Page 16 The Web GUI function pages are shown as below: ■ Device Information Page The Status page provides basic information about the Encoder/Decoder, such as Firmware Version, IP Address, Subnet Mask, Gateway and MAC Address. ■ Video Configuration Page On this page, you can configure the video properties as required. 14/21...
- Page 17 Encoder Video Configuration Encoder video configuration page includes Main Stream, Sub Stream, ID Setting AudioSelection and EDID Setting. Main Stream: You can configure Video Encoding Format, Audio Encoding Format and Bitrate. Video Encoding Format supports H.264 and H.265 (H.265 by default). Audio Encoding Format supports PCM and AAC (PCM by default).
- Page 18 User EDID 1 and User EDID 2 can be uploaded in Select User EDID1 File and Select User EDID2 File, and the content of the uploaded binary file is EDID. (This file can be downloaded from the Download EDID of the Decoder Video page.) Decoder Video Configuration Decoder video configuration page includes Trasmission Protocol, Scale...
- Page 19 Transmission Protocol: You can select “udp unicast” or“udp multicast” (udp multicast by default). Scaler Setting: You can set the output resolution (Pass Through by default). Download EDID: You can download the EDID binary file of the display device connected to the Decoder. The EDID file can be used as the User EDID file to be uploaded to the Encoder.
- Page 20 Notes: (1) The Network Settings can be set only when the Mode button is set to Static. (2) All changes will take effect by clicking “Save” below. (3) After any changes to the Network Settings, username or Login Password, it will redirect to the Web browser home page or the Web GUI login interface. You need to log in the Web GUI again with the new settings.
-
Page 21: Switchmodel
■ Log Out Page Click “Log Out” on the left, the Web GUI will exit and skip to the login interface automatically. 9. Switch Model A network Switch used to set up the system should support below features: 1. Type of layer 3/managed network Switch. 2. -
Page 22: 80Poveripsystemcontrol
10. 1080Pover IP System Control This product also can be controlled by Controller Box or third-party controller. For details of 1080P over IP system control, please refer to 1080P over IP Controller Box user manual. 11. Application Example Controller Box DC12V HDMIIN AUDIOIN/OUT... - Page 23 Notes: (1) For the default IP mode of Control LAN port of the Controller Box is DHCP, the PC also needs to be set to “Obtain an IP address automatically” mode, and a DHCP server (e.g. network router) is required in the system. (2) If there is no DHCP server in the system, 192.168.0.225 will be used as the IP address of Control LAN port.
