Summary of Contents for Teknomak TK T2

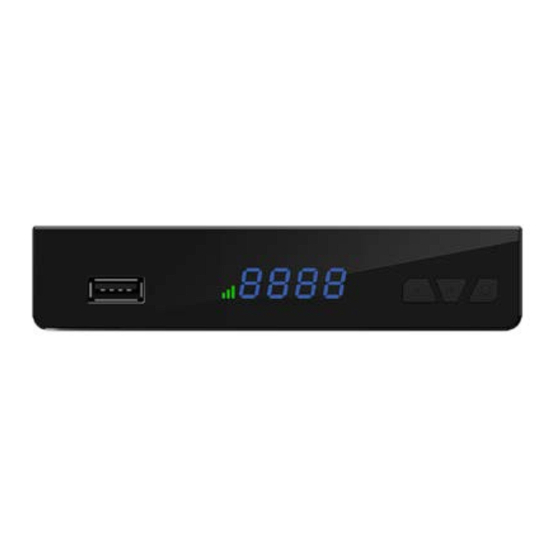

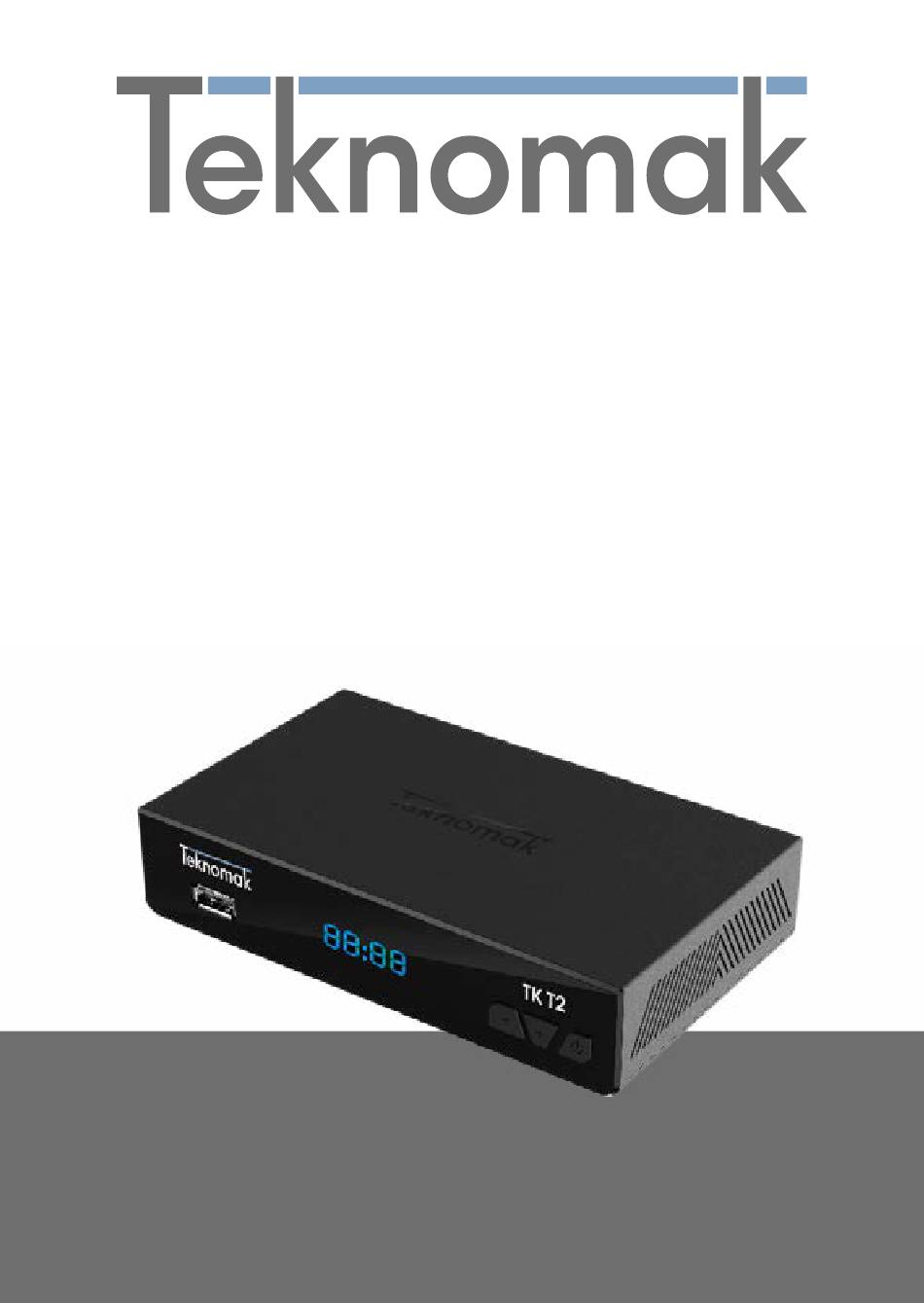

- Page 1 TK T2 DIGITAL TERRESTRIAL TELEVISION DVB T/T2 H265 DIGITAL TERRESTRIAL TELEVISION DVB T/T2 H265 RECEPTOR TELEVISIÓN DIGITAL TERRESTRE DVB-T/T2 H265 RECEIVERRICEVITORE DIGITALE TERRESTRE DVB-T / T2 H265...
-
Page 2: Product Description
PRODUCT DESCRIPTION Learning remote control. Quick setup. POWER (Red Button): Standby Mode (ON/OFF) Fast Backward Fast Forward Play/Pause Stop USB: Enters to sub menu SUBTITLE : Displays subtitle options TTX : Switches on the Teletext AUDIO : Audio language or Audio mode EPG : Shows the Electronic Program Guide INFO : Displays information about the current channel... -
Page 3: Batteries Installation
LEARNING FUNCTION BUTTONS: •The remote control has 4 programmable buttons for controlling the TV: TV Power, Vol +, Vol-, TV/AV. •Long press the SET button for 3 seconds, the red LED will be from low light to brigh- ter light,release the SET button. •Place the learning and the original remote control from the TV opposite to each other at a distance of 3-5 cm. - Page 4 CONNECTING TO TV For a basic connection from your Set Top Box to the television, use the Composite con- nection outlined below, For a higher quality connection, use the Component Video connection outlined below combined with the Composite Audio Connection.For the highest quality connection use a direct HDMI connection,see below.
- Page 5 Country: Select a Country. FTA Only:Two options All/FTA. All is for encrypted and free channels,FTA just be for free channels. Search Mode:DVB-T2 Antenna Power: On/Off,that is to control antenna 5V power supply.Set to ON when having an active antenna without power adapter.Set to OFF when having passive antenna or active antenna with power adapter.
-
Page 6: Channel Edit
PROGRAM CHANNEL EDIT: This menu enables you to edit channel lists by locking, deleting, skipping, moving channels and creating favorite channel lists. If you want to preview the channel,select it and press OK. Delete Press 1 button on the remote control and then press OK. The channel will be marked with an icon. -
Page 7: Program Guide
- Select a channel and press 5 button on the remote control. Then press OK. A favorite list will be displayed. · Choose one of the lists and press OK. Then press EXIT button to confirm changes. The selected channel will be saved in that list (it is now marked with an icon). . -
Page 8: Panel Setting
Transparency : Set the OSD transparency from 0% to 60%. Brightness: Set the OSD transparency from 20% to 100% Chroma: Set the OSD transparency from 20% to 100% Contrast: Set the OSD transparency from 20% to 100% OSD Timeout : Select the duration of displaying Info bar, 3s,5s and 8s for optional. PANEL SETTING: LED BRIGHTNESS: Adjust LED brightness of front panel. - Page 9 Note : Default Password is 000000. There is also a Master PIN, in case of forgetting the password that you were set. The mater PIN is 873543. Factory Reset: If you choose to restore Factory Settings, the Channel Lists and all Settings will be deleted.Entering password is “000000”.
- Page 10 TIME REGION AND TIME: Time Offset: Auto/Manual Region:City selected according to country setting. Time Zone: If Auto,this setting will set time based on our current country automatical- ly.If manual,this setting can be revised by manually. Summer Time: ON/OFF. Sleep(HOUR): Set the sleep time after no any operation.You can set OFF or from 1~12hours.
- Page 11 OPTION OSD Language: Select the language of the Menu EPG Language: Select the language of EPG Subtitle language: ON/OFF TTX language: Select the language of TTX. First Audio Language: Select First Audio Language Second Audio Language: Select Second Audio Language Digital Audio:Auto/PCM/Bypass Auto,receiver will detect digital audio automatically.
- Page 12 You can clone settings from one receiver to another by following the steps in the following video: https://www.ek.plus/en/product/tk-t2/ Media Centre: File/Video/Music/Picture 1. Make sure the USB drive is connected to the device. 2. Enter related format to play media files. Internet: Two network application can be used.
-
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The LED display is The power adapter is Check the connection of not lit disconnected the power adapter The antenna is discon- nected Check the antenna con- No signal The antenna is damaged/ nection not properly configured No signals are transmitted There are no images... -
Page 14: Safety Instructions
SAFETY INSTRUCTIONS: Carefully read the instruction manual before use and keep the manual for future reference. The manufacturer shall not be held liable for damages owing to due to an improper use of the device. ATTENTION DANGER OF ELECTROCUTION DO NOT OPEN This symbol is to warn about existence of uninsulated dangerous voltages in the product housing, which may pose a danger of elec- trocution. - Page 15 14) Attention should be drawn to the environmental aspects of battery disposal. 15) Use the apparatus in moderate climate. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. WARNING: The batteries shall not be exposed to excessive heat such as direct sun light, fire, etc.
- Page 16 ITS Partner O.B.S. S.L Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallès Barcelona (Spain) Tel: +34 93 583 95 43 www.teknomak.eu...
