Summary of Contents for PLUSLITE PLUSBAT-PL083

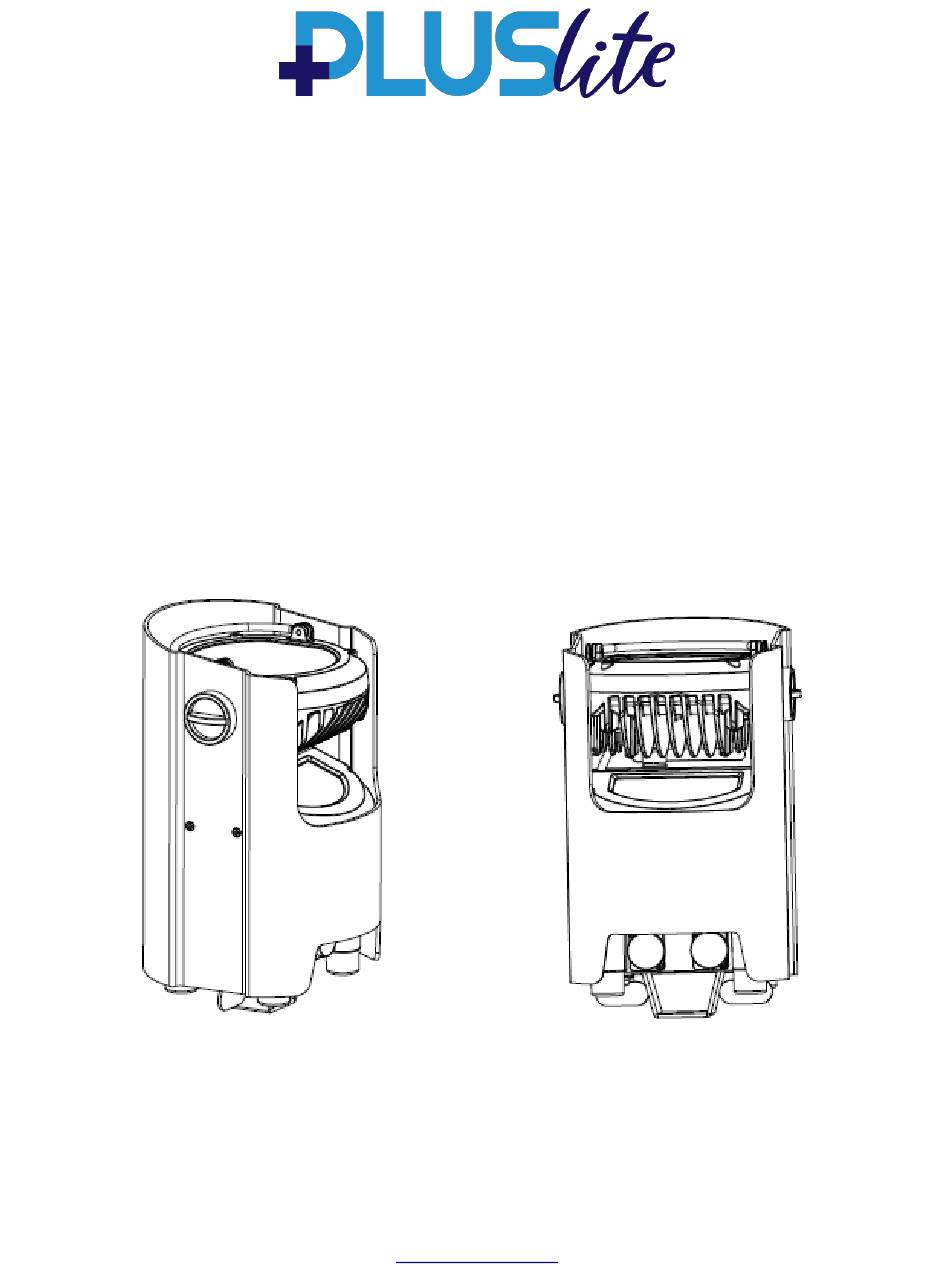

- Page 1 PLUSBAT-PL083 Battery Uplight IP54 User Instructions www.pluslite.eu...
- Page 2 Unpacking: Thank you for purchasing the PLUSBAT PL083 by PLUSLITE Products. Every PLUSBAT PL083 has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
-
Page 3: Warranty Registration
Then plug the other end of the powerCON to Schuko power cable into a proper electric power supply socket. Charge the batlery wtthin 6 hours. The four LEO indicators from the charger will light up green when the PLUSBATis fully charged. PLUSBAT-PL083 User Manual Page 2... - Page 4 B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. PLUSBAT-PL083 User Manual Page 2...
- Page 5 PLUSBAT-PL083 IP54 NotIce IP54 RATED An IP rated lighting fixture is one, which is commonly installed in outdoor environments and has been designed with an enclosure that effectively water. The International Protection (IP) rating system is commonly expressed as "IP" (Ingress Protection) followed by two numbers (i.e.
- Page 6 PLUSBAT-PL083 Layout Adjustment knob 4 x 12W RGBW LEDs OLEO display + control buttons 3P Connector In/Out Sideback Wireless DMX receiving antenna Bottom Power ON/OFF button 3-pin DMX IP54 signal connector IN/OUT Mounting hole Battery charger socket Enter button PLUSBAT PL083 User Manual Page 4...
-
Page 7: Control Mode
5)DMX Sync: On/Off synchronization setting Lock screen 6)Lock Yes/No setting Restore factory 7)Factory: Yes/No Versions: Vx.x.x Version display Temperature √/× Pin 3 = Data True (positive) Temperature: control 7:Information detection Wireless DMX WDMX: On/Off mode PLUSBAT-PL083 User Manual Page 5... -
Page 8: Operation
PLUSBAT-PL083 Control Mode A. OPERATION Press the MODE, UP or DOWN button to transform menus. Operation Mode illustration Auto running mode The light can run in according with the speed and strobe of built-in programs Pr.02~ Pr.14. Built- in Program mode ... -
Page 9: Dmx Channel Sheet
PLUSBAT- PL083 DMX Channel Sheet DMX Channel Sheet Function Setting Value Channel Channel Channel Dimmer 000-255 0~100% 000-255 0~100% Green 000-255 0~100% Blue 000-255 0~100% White 000-255 0~100% 0~15 No function 16~31 R(255)G(0)B(0)W(0) 32~47 R(0)G(255)B(0)W(0) Color Preset 48~63 R(0)G(0)B(255)W(0) 64~79 R(0)G(0)B(0)W(255) 80~95 R(255)G(150)B(0)W(0) -
Page 10: Dimming Mode
PLUSBAT PL083 Control Mode Dimming mode Please press the setup button to enter and select by the up or down button. As Follows： Red: 000~25 Green: 000~25 Dimme Blue: 000~25 White: 000~25 Setting mode Please press the setup button to enter and select by the up or down button. As Follows: Curves Select Dimmer Speed... - Page 11 6：lock screen setting Lock 7：Restore factory set After carry out this function, all data will restore initial state. Please press the setup button to enter and select by the up or down button. As follows: Factory PLUSBAT-PL083 User Manual Page 9...
-
Page 12: Information Mode
If the environment temperature is not in the using range, please reduce the using time of the full power to prevent products damaging because of overheating. g. In order to prevent the accident, please don’t tear down the light under the condition of charging. PLUSBAT-PL083 User Manual Page 9... - Page 13 PLUSBAT-PL083 Dimensional Drawing *NOT TO SCALE unit : mm PLUSBAT-PL083 User Manual Page 10...
- Page 14 PLUSBAT-PL083 Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be car- ried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
- Page 15 RGBW Color Mixing DMX Channels: DMX 512 4/6/10 ch Warranty: 2 Year Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. www.pluslite.eu PLUSBAT-PL083 User Manual Page 12...
