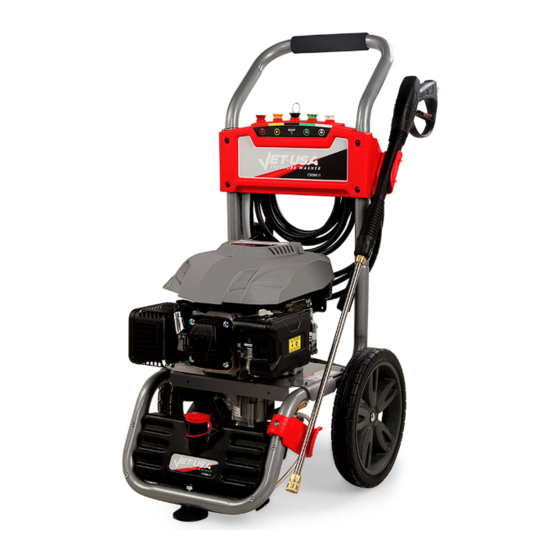

Petrol-Powered Pressure Cleaner
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
The product is NOT supplied with engine oil, although traces of oil from the manufacturing process
may be present. It is essential to add adequate engine oil of the correct type to the engine before use.
Failure to add engine oil will void the product
E&OE
Washer - CX660 Gen V
User Manual
[Revision 1.0 October 2019]
appearance, assembly, inclusions, specifications, description and packaging.
warranty.
© 2019 Jet-USA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Edisons JET-USA CX660 Gen V
- Page 1 Petrol-Powered Pressure Cleaner Washer - CX660 Gen V User Manual [Revision 1.0 October 2019] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Safety
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or You CAN be KILLED or You CAN be INJURED if you do... - Page 3 Petrol-Powered Pressure Cleaner Washer - CX660 Gen V General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must have • The equipment must be serviced or cords, power bars, and electrical fittings for an approved cord and plug and be repaired at authorised service centres by damage or wear before each use.
- Page 4 Petrol-Powered Pressure Cleaner Washer - CX660 Gen V SAVE THESE INSTRUCTIONS – This manual contains important instructions for the P1PE Pressure Washer that should be followed during installation and maintenance of the pressure washer. Pressure washers vibrate in normal use. During and after the use of the pressure washer, inspect both the pressure washer as well as extension and power supply cords for damage resulting from vibration.
-
Page 5: Safety Symbols
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them. Flammable Material Hazard Read User Manual Use Hand Protection... - Page 6 Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the product Do NOT attempt "slam dunk" confined areas or without contains or uses mechanical on sloping surfaces or in slippery...
-
Page 7: Table Of Contents
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Table of Contents Safety ................................. 2 Safety Symbols ................................5 Parts Identification ............................ 8 Assembly ..............................9 Attaching the Foot Assembly ............................9 Installing the Handle ..............................10 Attaching the Upper and Lower Gun Hooks ......................10 Attaching the Spray Gun ............................ -
Page 8: Parts Identification
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Parts Identification Use the illustrations below to become familiar the locations and functions of the various components and controls of this pressure washer. Name Name Handle Fuel filler cap 25ft. high-pressure hose Choke lever Recoil starter handle Engine ON/OFF switch... -
Page 9: Assembly
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Assembly Do not attempt to assemble or operate this pressure washer until you have read and understood this entire manual. If you have any problems assembling or operating this unit, please contact an authorised dealer or service centre. Do not operate this pressure washer if any of the parts are damaged or missing until the part is replaced. -
Page 10: Installing The Handle
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Installing the Handle Install upper frame (handle) on to the lower frame by sliding the handle over the two upright tubes on the lower frame and pressing down firmly until the handle is seated and the two locking pins snap in place. Attaching the Upper and Lower Gun Hooks 1. -
Page 11: Attaching The Spray Gun
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Attaching the Spray Gun 1. Screw the spray wand and the trigger handle together until they are secure. Insert the inlet coupler of the spray hose into the threaded fitting on the high-pressure spray gun and thread the black nut on by turning clockwise until it is hand tight. -
Page 12: Adding Petrol
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Adding Petrol This pressure washer may emit highly flammable and explosive petrol vapours, which can cause severe burns or even death if ignited. A nearby open flame can lead to explosion even if not directly in contact with petrol. Use fresh (within 30 days from purchase), unleaded petrol with a minimum of 87 octane rating. -
Page 13: Connecting The Garden Hose To The Pressure Washer
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V NOTE: After completing the above preparation, the pressure washer is ready to be started. Connecting the Garden Hose to the Pressure Washer 1. Run water through the hose for a few seconds to flush any debris from the hose. Inspect the inlet screen and remove any debris. - Page 14 Petrol-Powered Pressure Cleaner Washer - CX660 Gen V E&OE © 2019 Jet-USA...
-
Page 15: Operation
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Operation Before starting the pressure washer, ensure that you have read and performed the steps in the Assembly section of this manual. DANGER: CARBON MONOXIDE. Using a pressure washer indoors CAN KILL YOU IN MINUTES. Pressure washer exhaust contains carbon monoxide (CO). -
Page 16: Stopping The Pressure Washer
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Pulling the pull cord of the recoil starter rapidly can pull your arm towards the engine faster than you can let go which could result in injury. To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly. -
Page 17: Applying Detergent
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Applying Detergent 1. Only use the black soap nozzle for detergent. 2. Rinse surfaces with cool water before applying cleaner. 3. Prepare detergent as required. For best results follow detergent directions as supplied from manufacturer. Remove cap from the detergent container and fill. -
Page 18: Maintenance
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Maintenance Never perform maintenance operations with the pressure washer still running. Proper routine maintenance of the pressure washer will help prolong the life of the machine. Please perform maintenance checks and operations according to the maintenance schedule as shown below. Maintenance Schedule Recommended Each 8... -
Page 19: Checking The Oil
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V 2. Disconnect high pressure hose, spray gun, and nozzle. Drain water from items and use a rag to wipe down the outside of the hose and spray gun. 3. Empty the water from the pump by pulling the recoil starter 6 times. 4. -
Page 20: Air Filter Maintenance
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Air Filter Maintenance Routine maintenance of the air filter helps maintain proper airflow to the carburettor. Occasionally check that the air filter is free of excessive dirt. Refer to Recommended Maintenance Schedule. 1. -
Page 21: Draining The Soap
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Draining the Soap To drain the soap, unplug the hose. Use a container to hold the draining soap. Spark Plug Maintenance The spark plug is important for proper engine operation. A good spark plug should be intact, free of deposits, and properly gapped. -
Page 22: Checking The Detergent Siphoning Tube
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V 6. Screw the spark plug back into the spark plug hole using the spark plug wrench. Do not over-tighten spark plug. Recommended tightening of spark plug is ½ to ¾ of a turn after the spark plug gasket contacts the spark plug hole. -
Page 23: Storage And Transportation
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Storage and Transportation Never place any type of storage cover on the pressure washer while it is still hot. If the pressure washer is being stored for short period of time (30 to 60 days), add stabilised fuel to the fuel tank until full. -
Page 24: Troubleshooting
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Troubleshooting Problem Cause Solution Engine will not start Engine switch is set to “OFF” Set engine switch to “ON”. Choke lever is set to “Run” Turn choke lever to “Start” Engine is out of fuel Add petrol Engine is filled with Change the petrol in the fuel tank... -
Page 25: Specifications
Petrol-Powered Pressure Cleaner Washer - CX660 Gen V Specifications Max Pressure 4800PSI Continual Rated Pressure 3100PSI Displacement 212cc Air Cooled 4-Stroke Orientation Vertical Starting Method Recoil Choke Automatic Tank Volume 1.2L Pump Type Axial cam Rated Flow 9.5L/Min Max. Water Temperature 50°C High Pressure Hose length Detergent Tank... - Page 26 Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety ...
