ALPHA WORKS GUT054 Operator's Manual

10" cordless snow thrower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ALPHAWORKS
10" CORDLESS SNOW THROWER
OPERATOR' MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUT054 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALPHA WORKS GUT054

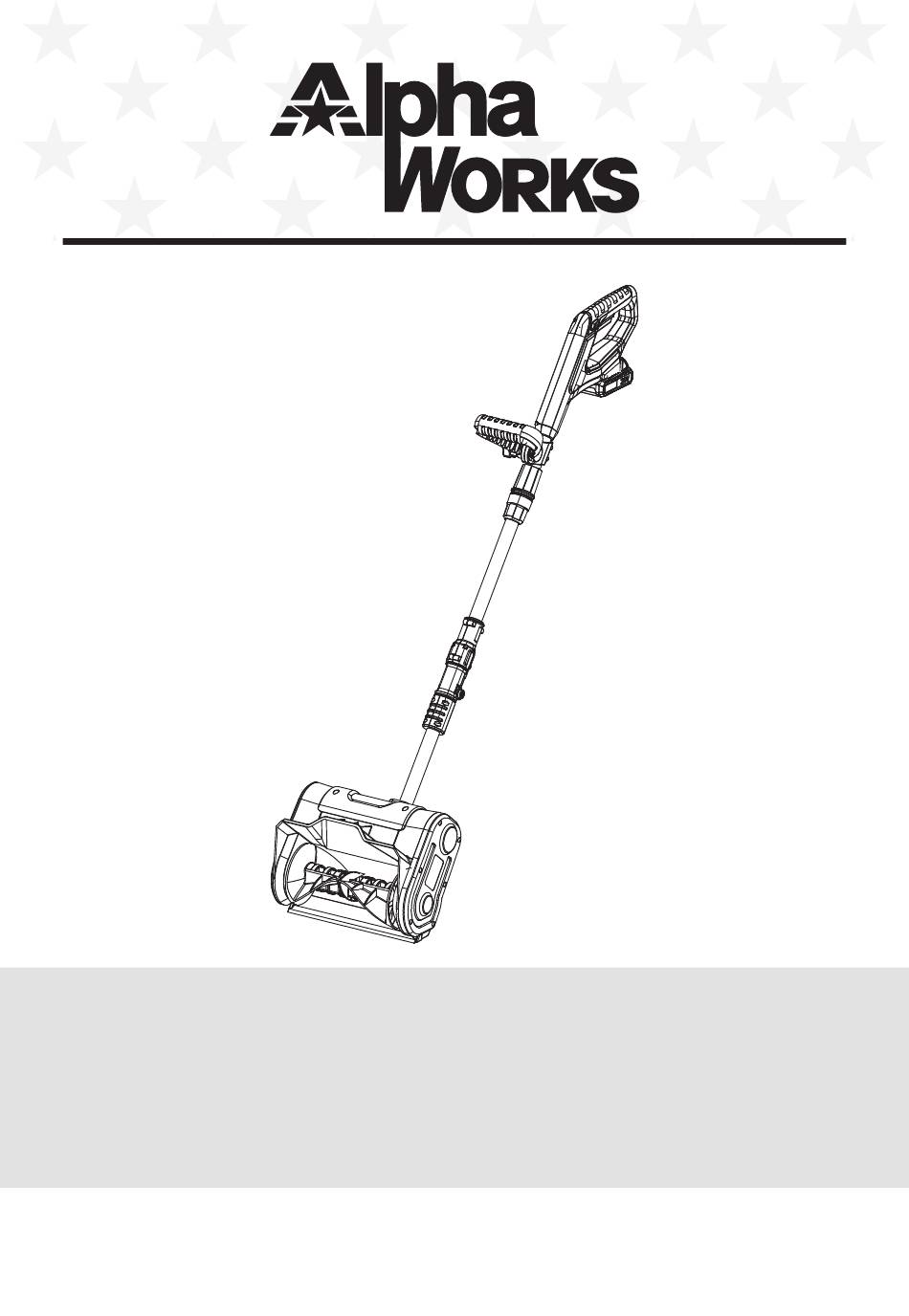

  • Page 1 ALPHAWORKS 10" CORDLESS SNOW THROWER OPERATOR' MANUAL...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS 20V MAX 10"SNOW SHOVEL GUT054 SKU# Voltage Clearing width 10”/25.4cm Maximum snow intake height 6”/16cm Maximum throwing distance 20’/6m Weight 10 lbs. /4.5 kgs BATTERY AND CHARGER Battery voltage 20V 2.0 Ah Li-ion Up to 70 minutes, Class 2...

  • Page 3: Specific Safety Rules

    SPECIFIC SAFETY RULES Read, understand and follow all instructions on the machine and in the manual before operating this unit. Thoroughly familiarize yourself with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly. Children should never be allowed access to the equipment.

  • Page 4: Battery And Charger Safety Instructions

    BATTERY AND CHARGER SAFETY INSTRUCTIONS Analyses confirm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage. Use only approved replacement batteries; other batteries may damage the cordless snow shovel and cause it to malfunction, which can lead to serious personal injury. Do not use a battery pack or appliance that is damaged or modified Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

  • Page 5: Information About The Battery

    Do not disassemble- Incorrect reassembly may pose a serious risk of electric shock, fire or exposure to toxic battery chemicals. Battery chemicals cause serious burns- Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemical, use rubber or neoprene gloves to safely dispose of it.
  • Page 6 INFORMATION ABOUT THE CHARGER AND THE CHARGING PROCESS 1. Please check the data marked on the rating plate of the battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a different charger voltage.

  • Page 7: Know Your Snow Shovel

    KNOW YOUR SNOW SHOVEL...
  • Page 8 CONNECTING THE POLES Slide the middle pole into the lower pole assembly and the upper pole assembly Align the screw holes. Insert the joint-fixing knobs through the aligned holes in the poles and secure the other end with the washers and the Joint-fixing knobs. NOTE: You may have to carefully move the wiring inside the tube to one side if it Blocks the path of the bolt.

  • Page 9: Handle Adjustment

    STARTING THE MACHINE To start the cordless snow shovel, push and hold the safety lock switch on the side of the handle grip with your thumb and then squeeze the trigger switch with your fingers. Once the machine powers on, you can release the safety lock switch and proceed with operation. To stop the cordless snow shovel, release the trigger switch.

  • Page 10: Operating Tips

    OPERATING TIPS 1. Start the cordless snow shovel. Push the shovel forward at a comfortable rate, yet slow enough to clear the path completely. The clearing width of the snow shovel and the depth of snowfall should dictate your forward speed. 2.
  • Page 12 Great Circle USA Support Line: 1-866-493-0524 alphaworks@greatcircleus.com www.greatcircleus.com Size: 145x210mm 157克双铜 REV 09/23/20...
