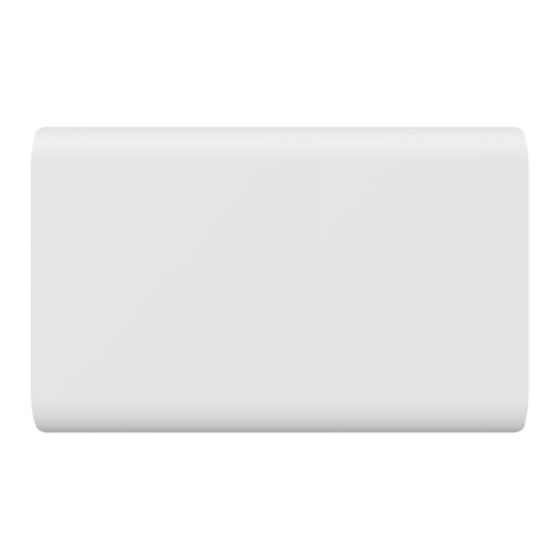

NATAIVA

0724901417094

0724901417100

0724901417117

Dear Client,

Thank you for purchasing this product

In order for it to bring you complete satisfaction during its use and to

optimize its lifespan, we thank you for reading this manual before any

installation, handling or maintenance.

We remind you that compliance with these instructions is an essential

condition for any warranty coverage.

Find all our warranty conditions on :

Take advantage of all our advices and our products

bricolage.fr

Also meet #mr.bricolage on our networks:

Installation instructions

Use and maintenance advices

www.info-inventiv.com

on:www.mr-

Table of Contents

Need help?

Do you have a question about the NATAIVA and is the answer not in the manual?

Questions and answers

Summary of Contents for inventiv NATAIVA

Page 1 NATAIVA 0724901417094 0724901417100 0724901417117 Installation instructions Use and maintenance advices Dear Client, Thank you for purchasing this product In order for it to bring you complete satisfaction during its use and to optimize its lifespan, we thank you for reading this manual before any installation, handling or maintenance.
Page 2: Warning Symbols
INSTALLATION TIME / NUMBER OF PEOPLE / RECOMMENDED TOOLS 1 or 2 10’~15’ WARNING SYMBOLS Please read the instructions carefully Class II equipment SAFETY INSTRUCTIONS PLEASE READ SAFETY INSTRUCTIONS CAREFULLY BEFORE USING THE UNIT. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and...
Page 3 of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Children of less than 3 years should be kept away unless continuously supervised.
Page 4 • WARNINGS: In order to avoid overheating, do not cover the heater. • Do not use this heater with a programmer, timer, separate remote-control system or any other device that turns on the heater automatically because there is a risk of fire if the device is covered or placed incorrectly.
Page 5: Installation
• WARNING: If this device is installed in a bathroom, it must be installed at least 60 cm from a bath or shower, in accordance with the requirements of the French electrical standards NFC15-100. • The device must be powered through a Residual Current Device (RCD) having a rated differential operating current not exceeding 30 mA.
Page 6 - Do not place the unit near a barrier limiting the airflow around it. - Attach the heater vertically to the wall as described below. - Choose screws and plugs suitable for the wall material and weight of the unit. To hang the heater on the wall: 1.
Page 7 slide the metal plate out of the hole. Take out the bracket by pulling down. (Fig 2) 3. Verify that the bracket is horizontal with a spirit level and mark the location of 4 holes on the wall. Drill 4 holes in the wall using a drill adapted to the diameter of wall plug.
Page 8: Electrical Connection
Note: The drawing is for reference only. We suggest that you to contact a professional electrician for assistance. ELECTRICAL CONNECTION CAUTION: Before any intervention, turn off the electricity at the main circuit breaker. - The installation must be carried out according to the requirements and meet the standards enforced in the country (NF C 15- 100 in France).
Page 9 - The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 - The appliance must not be connected to the earth wire (yellow and green wire). ELECTRICAL CONNECTION Blue or light gray wire connect to Neutral (230V) Brown or red wire connect to Phase (230V) Black wire connect to pilot wire.
Page 10: Lcd Display
LCD DISPLAY Symbol Function Stand-by mode (the appliance will not work but will receive power) Anti-freeze mode (the appliance maintains a temperature of around 7°C) Comfort mode (desired set temperature) Eco mode (ECO maintains a temperature 3.5ºC lower than the selected Comfort temperature. This mode reduces the temperature without changing the selected Comfort Temperature) Pilot wire mode (to set the programs via pilot wire...
Page 11: Control Panel
CONTROL PANEL Symbol Function Stand-by Personalized programs Window detector function Comfort mode Economy mode Anti-freeze mode P1/P2/P3/P Set the time, day of the week, the temperature; or under weekly personalized programs, to choose Touch between comfort mode, or eco mode. OPERATION When you first use the appliance, there might be some slight smell which is normal.
Page 12 week. Press the button to complete the setting and return to Stand-by mode, otherwise after 10 seconds without action the device will automatically return to stand-by mode as if it was the first time you use the device. 2. If the appliance is in operation and you want to change the time setting, press the at the same time to enter the time setting.
Page 13 weekdays weekends 3. Press PRG Press the PRG button to choose one of the programs. In PRG mode, Press PRG button to select between “day (1 for Monday -7 for Sunday)” and “heating mode of different periods (00:00-24:00)”. Select the desired day (1-7) by pressing buttons.
Page 14 4. Temperature setting In comfort mode , or Pilot wire mode or Eco mode (excluding anti-freeze mode ), press to select the desired set temperature. The temperature range for comfort mode and Pilot wire mode is between 5°C and 29°C and for Eco mode is between 1.5°C and 25.5°C.
Page 15 enter anti-freeze mode with icon flashing. If temperature rises up, the appliance will go back to previous mode with icon on. You can choose “OFF” to disable the window detection function. Remarks: the window detector function is not available under anti-freeze mode. 7.
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS Model HT10DTJF HT15DTJF HT20DTJF Voltage 230 V ~ 230 V ~ 230 V ~ Frequency 50 Hz 50 Hz 50 Hz Rated power 1000 W 1500 W 2000 W Protection class II IP Protection IP24 IP24 IP24 6 orders 6 orders 6 orders Pilot wire...
Page 17 0.00018 In standby mode Two or more manual stages, no room temperature control with mechanic thermostat room temperature control with electronic room temperature control electronic room temperature control plus day timer electronic room temperature control plus week timer Other control options (multiple selections possible) room temperature control, with presence detection...
Page 18 Minimum heat manual heat charge control output with room and/or outdoor (indicative) temperature feedback Maximum electronic heat charge control max,c continuous heat with room and/or outdoor output temperature feedback Auxiliary fan assisted heat output electricity consumption At nominal heat Type of heat output/room temperature output control (select one) At minimum...
Page 19 with black bulb sensor HOM’Y SAS Contact details GREEN PARK - Bat A, 61 rue de la cimaise, 59650 Villeneuve, d'Ascq, FRANCE Model identifier(s): HT20DTJF Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat manual heat charge control,...
Page 20: Care And Cleaning
electronic room temperature control plus day timer electronic room temperature control plus week timer Other control options (multiple selections possible) room temperature control, with presence detection room temperature control, with open window detection with distance control option with adaptive start control with working time limitation with black bulb sensor HOM’Y SAS...
Page 21: In Case Of Problems
3. Clean grill and air outlet regularly. Never immerse the appliance in water or allow water to enter the appliance. IN CASE OF PROBLEMS - The appliance does not heat: Ensure that the circuit breakers are switched on the installation, or the shedder did not cut power supply (if the installation has one).
Page 22 RECYCLING (DISPOSAL OF THE PRODUCT AT THE END OF ITS LIFE) The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal.
Page 23 How to benefit from the guarantee? Upon presentation of proof of purchase (the original receipt, invoice or delivery slip in the case of distance selling will be required as proof of purchase) the store will forward the Customer's request to the after-sales service , for repair, exchange or other (subject to acceptance of the file and after verification of the cause of the damage).
Page 24 23W14 HT10DTJF HT15DTJF HT20DTJF When handling the product, discard the user manual according to the selective sorting instructions.
