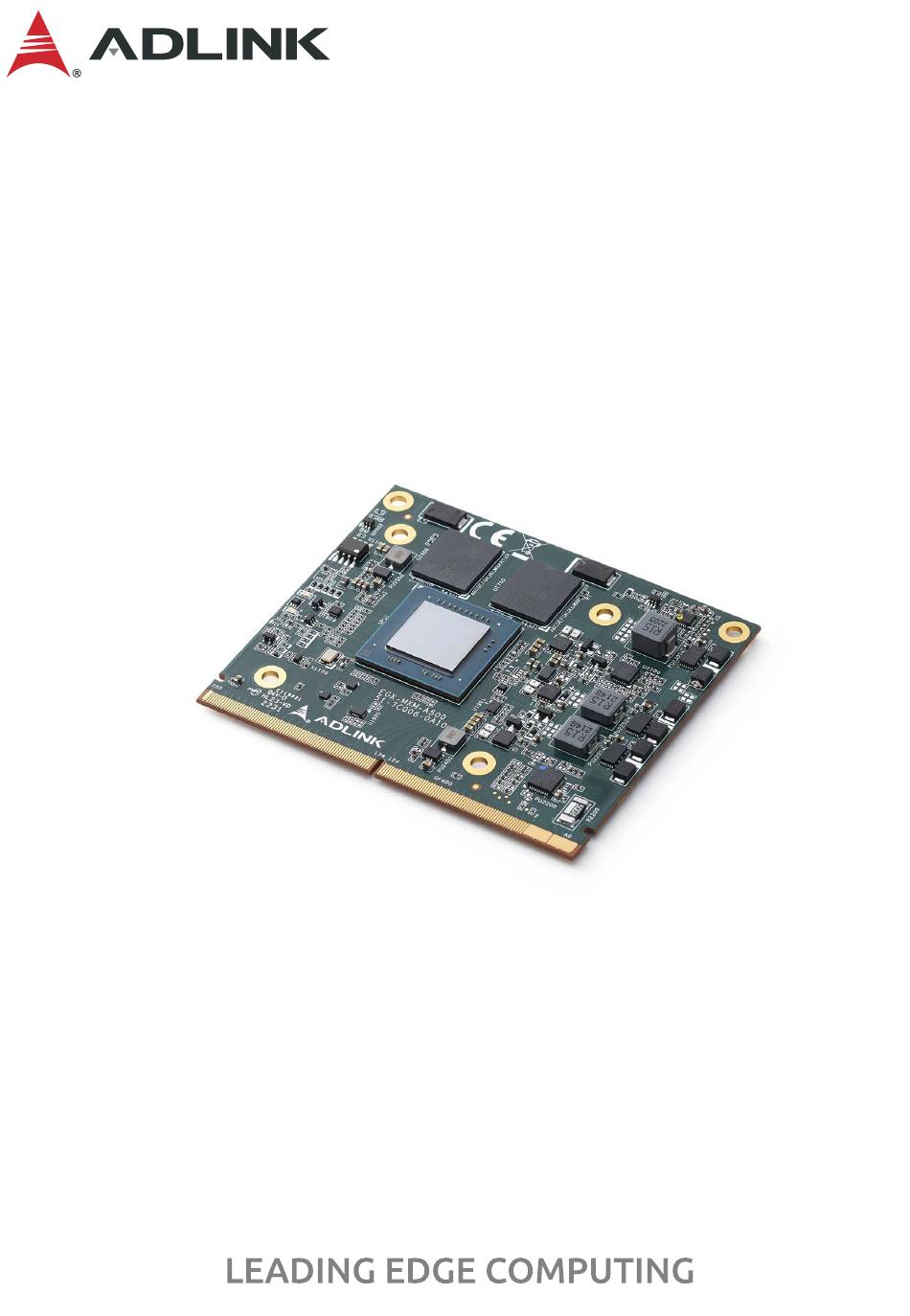

- Page 1 EGX-MXM-A500 NVIDIA Ampere™ GA107 RTX A500 Embedded Graphics Module User’s Manual Manual Rev.: Revision Date: July 17, 2023 Part No: 50M-7C006-1000...
- Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) 2023-07-17 Initial Release Revision History...
-
Page 3: Preface
EGX-MXM-A500 Preface Copyright © 2023 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 4 California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl) phosphate (TDCPP), 1,4- Dioxane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause birth defects or other reproductive harm.
-
Page 5: Table Of Contents
EGX-MXM-A500 Table of Contents Revision History..............ii Preface ..................iii List of Tables................. vii List of Figures ................ ix 1 Introduction ................ 1 Overview................1 Features................2 Specifications............... 3 1.3.1 Graphics Module ............3 1.3.2 Display Support and Options........4 1.3.3... -
Page 7: List Of Tables
EGX-MXM-A500 List of Tables Table 1-1: MXM Connector Pin Definitions........8 Table 1-2: Thermal Policy............13 List of Tables... - Page 8 This page intentionally left blank. viii List of Tables...
-
Page 9: List Of Figures
List of Figures Figure 1-1: EGX-MXM-A500 Functional Block Diagram....4 Figure 1-2: EGX-MXM-A500 Dimensions ........5 Figure 1-3: EGX-MXM-A500 Top and Side Views......6 Figure 1-4: EGX-MXM-A500 Bottom View........7 Figure 1-5: MXM Connector............7 Figure 2-1: Power Sequencing ........... 15 Figure 2-2: Module Power Down .......... - Page 10 This page intentionally left blank. List of Figures...
-
Page 11: Introduction
The EGX-MXM-A500 can support operation in an extended tem- perature range of -20°C to 70°C, suitable for mission-critical harsh environments. The 2048 CUDA core Ampere GPU delivers the lat- est leading-edge GPU performance for your embedded system. -
Page 12: Features
1.2 Features MXM 3.1 Type A FF (82 x 70 mm) 2048 CUDA cores 6.54 TFLOPS FP32 peak performance 2/4 GB GDDR6 memory 112 GB/s maximal memory bandwidth 25W-40W TGP 5 year performance warranty ... -
Page 13: Specifications
EGX-MXM-A500 1.3 Specifications 1.3.1 Graphics Module Model EGX-MXM-A500 Graphics Core Architecture NVIDIA® Ampere GA107 RTX A500 Display Outputs Signal Interface MXM 3.1, PCI Express Gen4 x4 support GPGPU Computing CUDA Toolkit 8.0, CUDA Compute version 6.1 CUDA Support OpenCL™ 1.2, DirectX® 12.1, OpenGL 4.6, Vulcan 1.0... -
Page 14: Display Support And Options
1.4 Functional Block Diagram Total support 4GB or 2GB GDDR6 GDDR6 x32 Channel A memory down PCIE x4 Gen4 PCIE GDDR6 x32 memory down VBIOS EN-20-M2 TGP:40W LED*2 Power Management (PWR_EN PWR_GOOD WAKE#) JTAG Figure 1-1: EGX-MXM-A500 Functional Block Diagram... -
Page 15: Mechanical Layout
EGX-MXM-A500 1.5 Mechanical Layout All dimensions shown are in mm NOTE: NOTE: Figure 1-2: EGX-MXM-A500 Dimensions... -
Page 16: Figure 1-3: Egx-Mxm-A500 Top And Side Views
Section-A Scale 2:1 Section-C Section-B Scale 2:1 Scale 2:1 PTH HOLE PTH HOLE 2 PCS 4 PCS TOP SIDE: OD=6.0mm; ID=3.2mm BOTTOM SIDE: OD=7.0mm; ID=3.2mm 1.25 1.25 Section-D Section-E Scale 2:1 Scale 2:1 Figure 1-3: EGX-MXM-A500 Top and Side Views... -
Page 17: Figure 1-4: Egx-Mxm-A500 Bottom View
EGX-MXM-A500 39.76 34.74 28.75 129x0.35 2x4.82 2.35 1.85 Figure 1-4: EGX-MXM-A500 Bottom View (R G5 X G6) Pin 125 Pin 281 Pin E1 Pin 133 Pin E3 Pin E2 Pin 134 Pin 124 Pin E4 Figure 1-5: MXM Connector... -
Page 18: Mxm Connector Pin Definitions
1.6 MXM Connector Pin Definitions Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD PWR_SRC PWR_SRC PRSNT_R# 0ohm PD RSVD PWR_GOOD PWR_EN 27MHZ_REF RSVD RSVD 100K PU to PWR_LEVEL 3.3V 100K PU to RSVD TH_OVERT# 3.3V 100K PU to RSVD TH_ALERT# 3.3V... - Page 19 EGX-MXM-A500 Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD PEX_TX15# PEX_RX15# PEX_TX15 PEX_RX15 PEX_TX14# PEX_RX14# PEX_TX14 PEX_RX14 PEX_TX13# PEX_RX13# PEX_TX13 PEX_RX13 PEX_TX12# PEX_RX12# PEX_TX12 PEX_RX12 PEX_TX11# PEX_RX11# PEX_TX11 PEX_RX11 PEX_TX10# PEX_RX10# PEX_TX10 PEX_RX10 PEX_TX9# PEX_RX9# PEX_TX9...
- Page 20 Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD PEX_TX5# PEX_RX5# PEX_TX5 PEX_RX5 PEX_TX4# PEX_RX4# PEX_TX4 PEX_RX4 PEX_TX3# PEX_RX3# PEX_TX3 PEX_RX3 PEX_RX2# PEX_TX2# PEX_RX2 PEX_TX2 PEX_RX1# PEX_TX1# PEX_RX1 PEX_TX1 PEX_RX0# PEX_TX0# PEX_RX0 PEX_TX0 PEX_REFCLK# 154 PEX_CLK_REQ# PEX_REFCLK PEX_RST# RSVD RSVD...
- Page 21 EGX-MXM-A500 Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD DP_C_L0# RSVD DP_C_L0 RSVD DP_C_L1#...
- Page 22 Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD RSVD RSVD DP_D_AUX# RSVD DP_D_AUX RSVD DP_C_HPD PD 100K RSVD DP_D_HPD PD 100K RSVD RSVD RSVD RSVD RSVD RSVD DP_B_L0# RSVD DP_B_L0 RSVD DP_B_L1# DP_A_L0# DP_B_L1 DP_A_L0 DP_B_L2# DP_A_L1# DP_B_L2 DP_A_L1...
-
Page 23: Thermal Policy
Retain the shipping carton and packing materials for inspection. Obtain authorization from your dealer before returning any product to ADLINK. Ensure that the fol- lowing items are included in the package. EGX-MXM-A500 embedded graphics module ... - Page 24 This page intentionally left blank.
-
Page 25: System Requirements
EGX-MXM-A500 System Requirements 2.1 Power Sequencing For initial power on, or to Resume from S3 and S4, this sequence must be followed. PV-PE PE-PG PV-PE PE-PG Figure 2-1: Power Sequencing 2.2 Module Power Up and Down Issuing the PWR_EN signal powers the MXM module down, and the system designer can decide whether to keep the module input power when the MXM module is powered down. -
Page 26: Reset Requirements
MODULE INPUT POWER PWR_EN MODULE INTERNAL POWER PWR_GOOD Figure 2-2: Module Power Down 2.3 Reset Requirements PVPERL PERST-PG FAIL PERST-CLK MODULE INPUT POWER PVPERL PERST-CLK PWR_EN PERST-PG FAIL PWR_GOOD PEX_REFCLK PEX_RST# Figure 2-3: Reset Sequencing... -
Page 27: System Bios Settings
EGX-MXM-A500 2.4 System BIOS Settings The system BIOS must meet the following criteria: SBIOS must support the "Above 4G decoding" feature to support a resizable BAR1 size. SBIOS must enable "Above 4G decoding" as the default configuration. The following is a sample BIOS menu setting for reference. The actual menu setting can vary depending on the specific SBIOS design. -
Page 28: Driver Installation
2.5 Driver Installation Drivers can be downloaded from: https://www.adlinktech.com/Products/Embedded_Graphics/ embedded-graphics-solutions/EGX-MXM-A500 2.6 Certifications & Agencies Windows Hardware Quality Lab (WHQL) certified for Windows 10 and Windows 11 EU Reduction of Hazardous Substances (EU-RoHS) Conformité Européenne (CE) Federal Communications Commission (FCC) -
Page 29: Important Safety Instructions
EGX-MXM-A500 Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil , pour éviter des blessures... - Page 30 Never attempt to repair the device, which should only be serviced by qualified technical personnel using suitable tools The device must be serviced by authorized technicians when: The power cord or plug is damaged Liquid has entered the device interior ...
-
Page 31: Getting Service
San Jose, CA 95119-1208, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-600-1189 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com ADLINK Technology GmbH Hans-Thoma-Straße 11...
