Summary of Contents for PM FBWM SAM IFJ

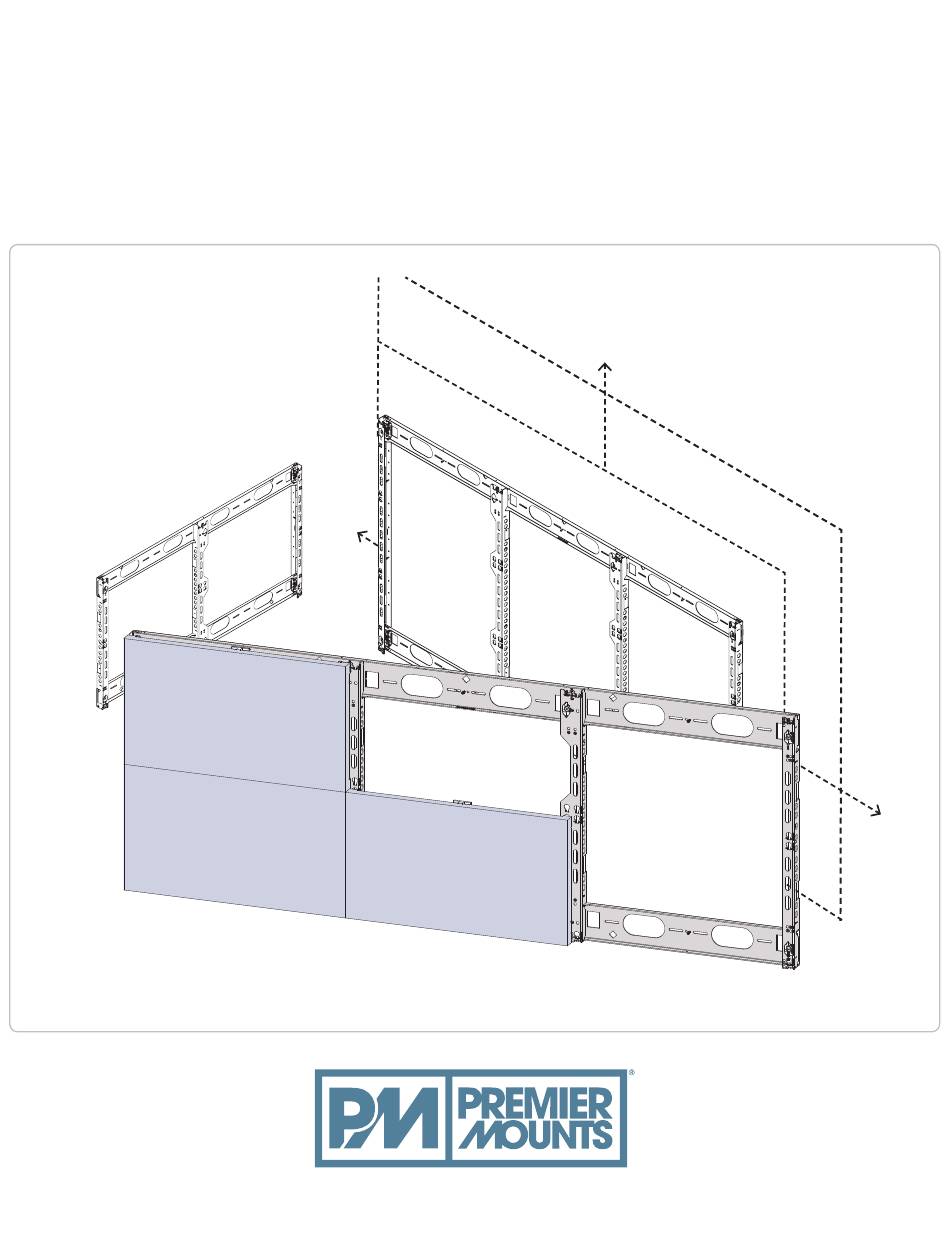

- Page 1 FBWM SAM IFJ FLAT BRACKET VIDEO WALL MOUNT FOR SAMSUNG IFJ LED SERIES INSTALLATION GUIDE 9500254 v1.0 premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com publ. 10/15/18 500 W Central Ave, Suite A, Brea, CA 92821 USA...
-
Page 2: Caution Statements
FBWM SAM IFJ FBWM SAM IFJ Installation Guide CAUTION STATEMENTS 1. READ ALL STEPS WITHIN THIS MANUAL BEFORE INSTALLING THE MOUNT. SAMSUNG IFJ LED SERIES INSTALLATION GUIDE MUST BE READ IN CONJUNCTION FOR SUCCESSFUL INSTALLATION. ANY QUESTIONS? CALL PDS. 2. FRAME MUST BE PLUMBED, SQUARED, LEVELED, X, Y, AND Z ALIGNED PRIOR TO INSTALLATION OF ANY DISPLAYS. - Page 3 FBWM SAM IFJ FBWM SAM IFJ Installation Guide VIDEO WALL DIMENSIONS AND MOUNTING LOCATIONS 48" APART HANG LOCATION 1" HANG LOCATION Determine the overall dimensions of the mount by Imperial Metric using the table within this page. (Inches) (Milimeters) 1 Wide 31.718...
-
Page 4: Pre-Installation
FBWM SAM IFJ FBWM SAM IFJ Installation Guide PRE-INSTALLATION Floating Adjustment Identifier for the Assembly (or “Floaters”) top or bottom horizontal rail M6 x 35mm UNUSED Socket Screw Nylon Washer Steel Washer FLOATER LOCATION Even array - e.g. 6 Wide... - Page 5 FBWM SAM IFJ FBWM SAM IFJ Installation Guide METHOD 1 Install the Vertical and Horizontal Rails together using (4) M5x 8mm Flat Head Screw per. Horizontal Rail M5 x 8mm Flat Head Vertical Rail (center) 1. Determine the desired location by calculating the height of the pre-mounting hang location using the table on page 3.
-
Page 6: Digital Level
FBWM SAM IFJ FBWM SAM IFJ Installation Guide 1. Place a level on top of the mount and reinstall or adjust the support screws if necessary. using 1/4” x 5” Hex Lag and 1/4” Washer. 3. Maintain a 1/8” minimum gap from the anchor plate and the rail when anchoring. - Page 7 FBWM SAM IFJ FBWM SAM IFJ Installation Guide METHOD 2 DIGITAL LEVEL WALL WALL 00.0 Wall Anchor Plate Wall Anchor Plate 1. Install (2) 1/2”-13 x 1.5” Bolt with Hole onto the threaded extrusion. using 1/4” x 5” Hex Lag and 1/4” Washer.
- Page 8 FBWM SAM IFJ FBWM SAM IFJ Installation Guide ASSEMBLE THE LOWER SECTION OF THE MOUNT 1. Securely fasten each Vertical Rail to a mounted Horizontal Rail using (2) M5 x 8mm Flat Head Screw per end. 2. Fasten the Lower Horizontal Rail but do not anchor until the mount is perfectly square. See sequential step.
- Page 9 FBWM SAM IFJ FBWM SAM IFJ Installation Guide Extend Horizontally To extend the width of the unit, follow the steps below. 1. Hang and position the second Horizontal Rail side by side. 2. Place a support screw while maintaining a leveled horizontal rail to temporary hold in place.
- Page 10 FBWM SAM IFJ FBWM SAM IFJ Installation Guide Extend Vertically To extend the height of the unit, follow the steps below. 1. Position multiple units adjust to each other. 2. Joint the units together using multiple Attachment Plate and fasten using (2) M5 x 8mm Flat Head Screw per.
- Page 11 FBWM SAM IFJ FBWM SAM IFJ Installation Guide SQUARE AND LEVEL Inspect each bracket using a Square and Level tool. premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 11...
- Page 12 FBWM SAM IFJ FBWM SAM IFJ Installation Guide FINETUNE THE HORIZONTAL AND VERTICAL RAIL 1. Install whereever necessary. 2. Use multiple drywall or wood screws to bring the bracket closer to the wall. 3. Use multiple M5 x 0.5 tapped screws to bring the brackets away from the wall.
- Page 13 FBWM SAM IFJ FBWM SAM IFJ Installation Guide VERY IMPORTANT: VERIFYING THE DIAGONAL MEASUREMENTS Distance 1 The two diagonal measured distances 1/8” min. gap must match Clearance Distance 2 1. Measure the distance from corner to corner INSTALL THE LOWER with a measuring tape.
- Page 14 FBWM SAM IFJ FBWM SAM IFJ Installation Guide FINAL ALIGMENT AND ADJUSTMENT 1. Tie a string from one end to the other end of the entire array. 2. Tie horizontally and crisscross, especially for large video wall array. 3. Inspect for any gaps between the brackets and the string.
- Page 15 FBWM SAM IFJ FBWM SAM IFJ Installation Guide Adjustments 1/8” min. gap Clearance Up / Down Uneven wall surfaces can be adjust by turning the Flush Bolt. In / Out premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100...
- Page 16 FBWM SAM IFJ FBWM SAM IFJ Installation Guide NOTES: If using the additional slots for mounting points, make sure that the floating frame is fully level to the wall vertically and horizontally. Must use shims (commercially available) on every slots being used to fill the void between the wall and the frame. Avoid over tightening the screws as this would make the floating frame uneven.
- Page 17 FBWM SAM IFJ FBWM SAM IFJ Installation Guide SAMSUNG IFJ LED DISPLAY INSTALLATION MANUAL must be read in conjunction with Improper installation may cause damage to the LEDs. 1. Install the first LED Cabinet from the center bottom row of the mount.
- Page 18 FBWM SAM IFJ FBWM SAM IFJ Installation Guide RECOMMENDATION ONLY: INSTALL WITH GAP-IT TOOL 1. Place a Gap-It Tool to wedge between two LED Cabinets to prevent abrupt release of the cabinets. 2. Slowly slide the Gap-It tool away from the LED Cabinets while lowering into place.
- Page 19 PREMIER MOUNTS LIMITED WARRANTY FBWM SAM IFJ WARRANTY COVERAGE: Premier Mount’s\PDS warranty period for products used in “build-to-order” applications is 1 year for fabricated products. Electronic actuators and controllers are covered for 3 years. Batteries are covered for 12 months. The Warranty period is effective from the production date, as stated on the “ship date”...
