Summary of Contents for Stagetec NEXUS compact TrueMatch

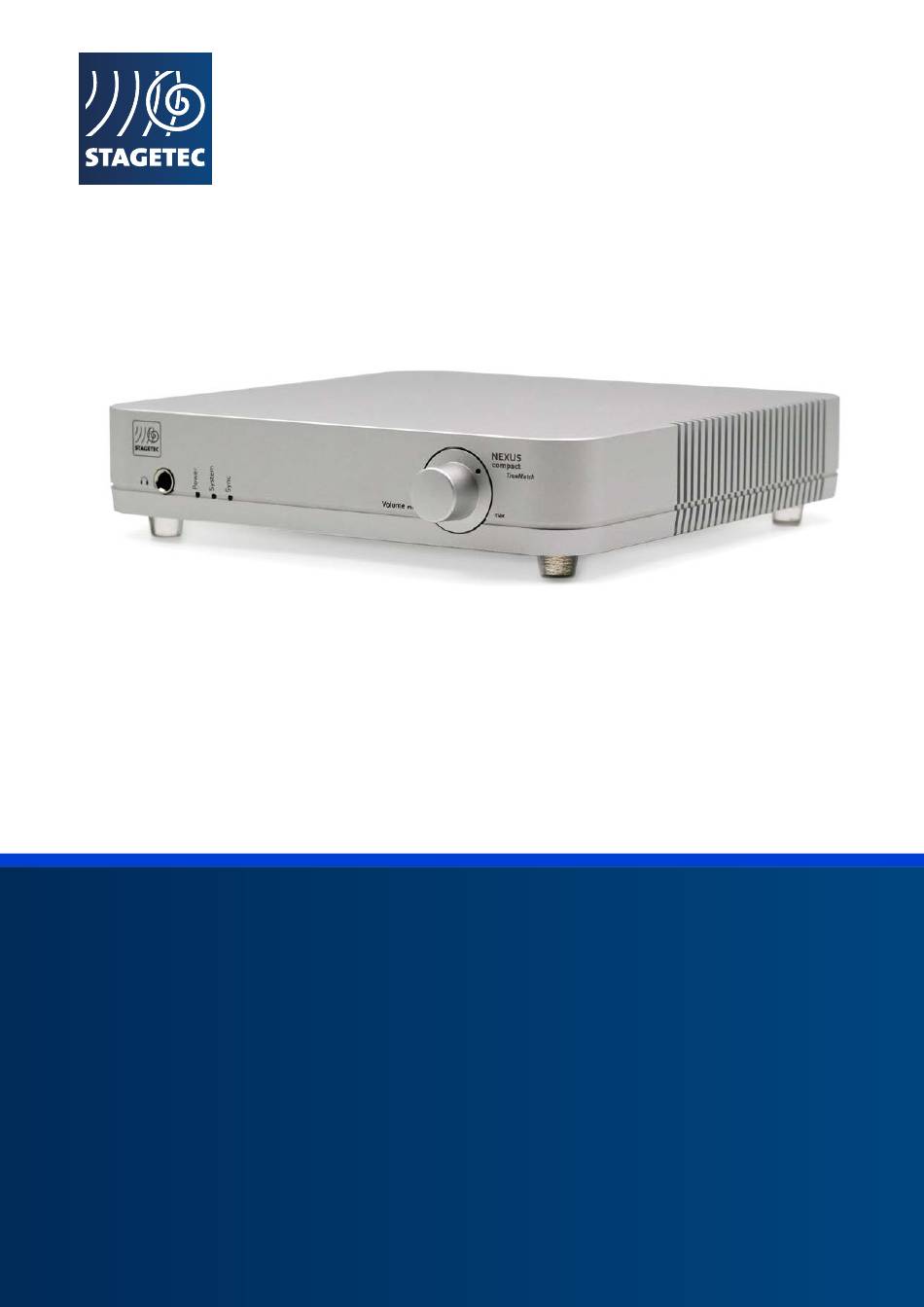

- Page 1 NEXUS compact TrueMatch QUICK GUIDE NXCT 1 | NEXUS compact QUICK GUIDE 1.1 April 2023...
-
Page 2: General Information
SAFETY INSTRUCTIONS To ensure a safe operation of the NEXUS compact TrueMatch, it is essential to observe the following safety instructions. Please read them carefully before use. Disregarding these safety instructions can lead to damage, operation failure or personal injury. -
Page 3: Declaration Of Conformity
Under normal conditions the inside of the unit doesn`t need cleaning. The device should not be opened by the user. If cleaning of the inside should become necessary, please send the unit to STAGETEC. SOFTWARE The NEXUS compact TrueMatch is controlled by a web-based user interface. The web GUI is compatible to every modern internet browser running on Windows or MacOS computers as well as Android or iOS mobile devices. DECLARATION OF CONFORMITY We hereby confirm that the NEXUS compact TrueMatch complies with the requirements in the following EC directives: •... -
Page 4: System Description
* After expansion with planned DSP functionality. HARDWARE 2.2.1 FRONT PANEL Since all parameters of the NEXUS compact TrueMatch are controlled via the web GUI, the front panel contains just a few elements. From left to right you will find: • A 6,3mm TRS headphone jack with a high quality headphone amplifier which will easily fulfil most demanding requirements. Controlled by the web GUI, the headphone jack can monitor any signal source within the system. -
Page 5: Rear Panel
2.2.2 REAR PANEL The rear panel gives you all the connectors you need to integrate NEXUS compact TrueMatch into your audio system: • D/A- Connector This female Sub-D connector provides 8 balanced analog outputs in standard Tascam format. Maximum output level for 0 dB fs is + 24dBu (adjustable). Please make sure to use shielded breakout cables. -
Page 6: Web Gui Connection
3. WEB GUI The Web GUI is a convenient and intuitive user interface using a standard web browser to access all parameters of the NEXUS compact TrueMatch. WEB GUI CONNECTION For the initial setup of the NEXUS compact TrueMatch follow the steps below: 3.1.1 WEB GUI CONNECTION WITHIN AN EXISTING DHCP / DNS INFRASTRUCTURE 1. Connect the Control-Port of the NXCT to a 1GbE switch within your network (control/management network) 2. Connect your computer to the same network 3. Open a web-browser and type “http:// nxct-<serial#>.local” to open the NXCT configuration page. Use the serial number of your NXCT. If the serial number is 000078, the URL would be „http://nxct-000078.local“ 4. Proceed according to chapter 3.2 3.1.2 WEB GUI CONNECTION WITHIN A NETWORK ENVIRONMENT WITHOUT DHCP AND DNS... - Page 7 CONFIGURING AUDIO-OVER-IP-INTERFACES 3.2.1 OUT-OF-BAND MANAGEMENT, IN-BAND MANAGEMENT By default, the control surface of NEXUS compact TrueMatch is configured for „Out-of-Band management“. This results in the configuration page only being available on the “control port”, while the AoIP setup has to be carried out on the primary or secondary Audio-over-IP ports respectively. To switch to In-Band management, open the Web GUI and navigate to the setup page by pressing [SYSTEM] on the right sidebar of the screen. On the NETWORK panel you will find a popup-menu called „MIRROR CONTROL PORT“, where you can choose the AoIP-port you want to mirror the control port to. Finally you have to confirm your changes by pressing [APPLY]. Please be aware that this will reboot the NXCT and audio interruptions are likely to occur. Mirror control port 3.2.2 CONFIGURING AES67 PORTS The built-in AES67 module has to be configured via the primary or secondary Audio-over-IP ports respectively. To access the web interface of the AES67 module follow the steps below: 1. Navigate to the SYSTEM page of the NXCT Web GUI by pressing [SYSTEM] on the right sidebar of the screen. 2. On the NETWORK panel note the IP-address of the port you want to configure. (Hint: if you deactivate the [DHCP] button, you can copy the address. Make sure to activate the button again if necessary.) 3. Connect your computer or your network switch to the AoIP port you want to configure. 4. Open your web browser and navigate to „http://<IP-address of AoIP-Port>“ 5. The web interface of the AES67 module opens. Here, all functions of the AES67 module can be controlled, including setting-up the AES67-streams. 6. For the operation manual of the AES module refer to „https://www.directout.eu/download/operating-instructions“ and download the file „software-manual-rav2-oem.pdf“.
- Page 8 PRECAUTIONS • Don`t use static IP-addresses with a netmask of 0.0.0.0 on any of the ports. This configuration can lead to a failure of the internal AoIP-module. • In some cases the web GUI can already be accessible while the NXCT is still starting up and the AoIP-modules heaven`t been read out yet. Don`t press the [APPLY] button in the NETWORK panel of the SYSTEM screen, while you still see orange frames and no valid IP-addresses are available, since this also can cause the AoIP-modules to fail. • For the DANTE version of the NEXUS compact TrueMatch, using the secondary port with gateway/DNS is only possible in DHCP configuration. With static IP-addresses no gateway or DNS can be defined or configured.
- Page 9 TECHNICAL DATA NXCT Microphone Inputs Dynamic range 157.6 dB (A) Converter dynamic range > 144 dB (RMS) resp. 147 dB (A) empty channel noise Distortion factor (THD+N) typ. 0.003 % at 24 dBu gguaranteed < 0.004 % typ. 0.003 % in the range -50...0 dBu Amplitude response 20...20.000 Hz: < 0,05 dB (typ. < ±0,1 dB) at 20 Hz: typ. -3 dB (below 18 dB/oct. drop according to IRT specifications) Equivalent noise level in input <- 129.5 dBu(A), at 200 Ohm source impedance...
- Page 10 STAGETEC GmbH Tabbertstraße 10-11 | 12459 Berlin | Germany T. +49 (0) 30 / 63 99 02 0 sales@stagetec.com www.stagetec.com...
