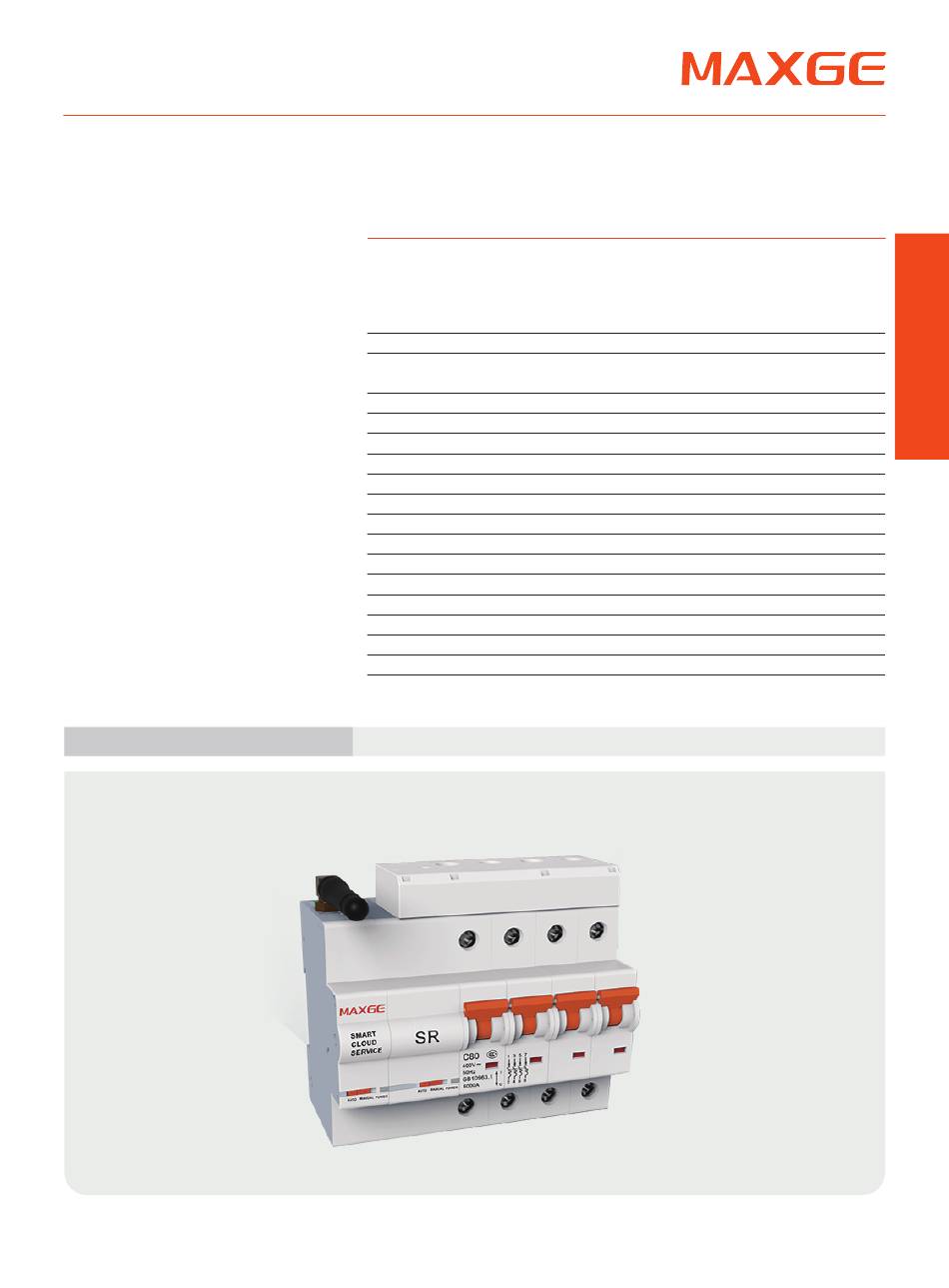

MGB
Series
Intelligent circuit breaker series
Technical data
Connection mode
Rated voltage （Ue）
Rated current （ In）
Rated frequency
Mechanical life
Electrical life
Overload & short-circuit protection
Breaking capacity （Icu=Ics）
Rated impluse withstand voltage （Uimp)
Protecting degree
Operation temperature
Dielectric strength
Over-voltage action value
Over-voltage recovery value
Under-voltage action value
Under-voltage recovery value
Over voltage & under voltage recovery time
2p single phase / 4p three phase four wire
2P 230V AC / 4P 400V AC
10A、 16A、 20A、 25A、 32A 、 40A 、
50A 、 63A 、 80A 、 100A、 125A
76
50Hz
10000
6000
C
6KA
4KV
IP20
- 5℃~+40℃
AC2500V 60s
285V 土5V
253V 土5V
150V土5V
195V土5V
20--40S
76
Advertisement
Table of Contents
Summary of Contents for MAXGE MGB Series
- Page 1 Series Intelligent circuit breaker series Technical data Connection mode 2p single phase / 4p three phase four wire Rated voltage （Ue） 2P 230V AC / 4P 400V AC Rated current （ In） 10A、 16A、 20A、 25A、 32A 、 40A 、 50A 、...
- Page 2 1. Intelligent circuit breaker Intelligent cloud control (GPRS, Ethernet, WIFI) circuit breaker is developed by our company on the basis of the Technical Specification for External Circuit Breaker (State Grid Corporation of China Q/ GDW11421-2005), Technical specification for External Low-Voltage Circuit Breaker (China Southern Power Grid), and Technical Specification for External Circuit Breaker (CQC1121-2016).
- Page 3 4. Outline dimension & Wiring diagram dimension diagram 5. Common problems and solutions IF IT DOESN'T WORK PROPERLY Please check whether the [manual/automatic switch] is in the [automatic] status. Please check whether the input power line is properly connected as specified. Please check whether there are any faults.
- Page 4 Series Solar photovoltaic circuit breaker series Technical data Connection mode 2p single phase / 4p three phase four wire Rated voltage(Ue) 2P 230V AC / 4P 400V AC Rated current(In) 10A、 16A、 20A、 25A、 32A 、 40A 、 50A 、 63A 、 80A 、 100A、 125A Rated frequency 50Hz Mechanical life...
- Page 5 1. Solar photovoltaic circuit breaker The solar photovoltaic circuit breaker with reclosing function could be automatically opened in the case of over-volt- age and under-voltage, and it could be automatically closed when the normal voltage is restored. At present, there are several main scenarios: one is a distributed grid-connected system, and another is a system with large grid-connected scale.
- Page 6 4. Outline dimension & Wiring diagram 49.8 MGB42-80L MGB52-125L 5. Connection diagram MGB42-80L MGB52-125L 6. Common problems and solutions IF IT DOESN'T WORK PROPERLY Please check whether the [manual/automatic switch] is in the [automatic] status. Please check whether the input power line is connected correctly as specified. Please check whether there are any faults.
