Airlinkplus AKVM-4 Quick Installation Manual

Quick Installation Guide
Model # AKVM-4
Section 1
Introduction
The AKVM-4 switch is a 4-port PS/2 type KVM switch
that comes with 3-in-1 combo KVM cables to save you
1 cabling troubles. It enables users to access, control,
boot, and reboot up to 4 computers using only one key-
board, video monitor, and mouse. It can be your best
companion for managing 2 to 4 computers on either
SOHO or corporate desktop.
Section 2
Installation
Before connecting any cable, please make sure all of your
computers and their peripherals have been powered off.
Otherwise, the KVM switch may not be set up properly.
Step 1 Make sure all the computers that are to be
connected to the KVM switch and their peripherals
are powered-off. If not, power them off before you
proceed with the following steps.
Ver. 1A
Step 2 Connect the shared keyboard, monitor, and

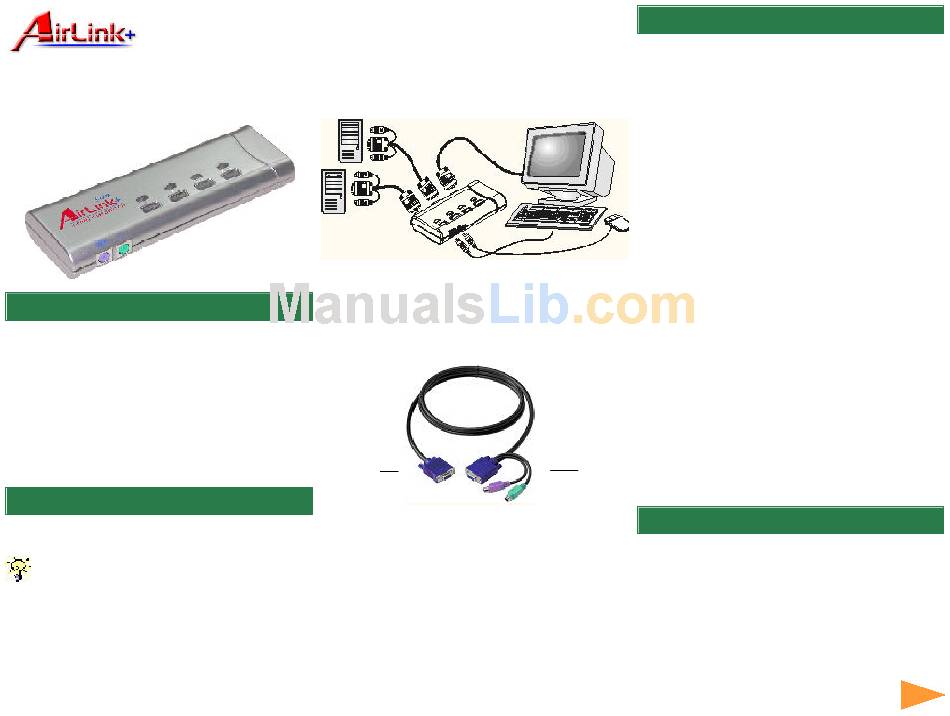

mouse to the main KVM unit. See Fig. 1.1
Step 3 Connect each of your computer to the KVM
switch using the provided 3-in-1 combo KVM
cables.See Fig. 1.2
KVM side
You can use individual standard keyboard, mouse
and video cables to extend the cable distance, but
depending on the type of cables you use, the
maximum cable distance is limited to 5 ~ 7 meters
(15.5 ~ 23 feet).
Step 4 Power up the connected computers one by
one. After the computers are powered up, the
keyboard and mouse will be recognized and you can
begin operating the KVM switch.
Fig 1.1
PC side
Fig 1.2
Section 3
Operations
There are two methods to select a specific computer:
Using the push button or the hotkey sequence.
Push Button
The push button lets you directly switch between the
computers. Simply press the applicable button on the
KVM unit to select the corresponding computer.
Hotkey Sequence
The hotkey sequence consists of three specific
keystrokes pressd on the keyboard.
Hotkey sequence = ScrLk + ScrLk + Command key
The two consecutive ScrLk key should be pressed
within 2 seconds and the following command key(s)
should also be pressed within 2 seconds. Otherwise,
the hotkey sequence will not be validated.
For detailed Hotkey sequences and their correspond-
ing functions, please refer to the Quick Reference
Chart on back.
Section 4

Technical Support

Email: support@airlinkplus.com
Website: www.airlinkplus.com
Continue on Back
