Summary of Contents for Richen EF456B

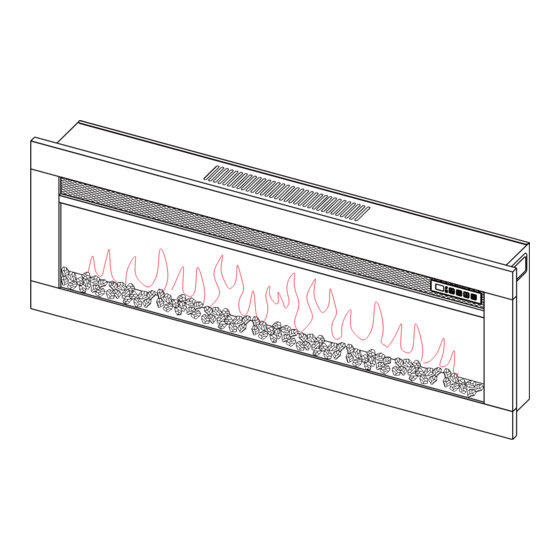

  • Page 1 MODEL: EF456B/EF457B/EF458B/EF459B Email: service8@fireandfireplaceservice.com...
  • Page 3 This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least a 3 feet (a 0.9m) from the front of the heater and keep them away from the sides and rear.
  • Page 4 A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
  • Page 6 MODEL NO.: EF456B/EF457B/EF458B/EF459B Supply Voltage: AC120V/60Hz Maximum power consumption: 1.5KW Power for flame and fuel bed effect: 7W/7W/9.5W/9.5W Standing Bracket L Bracket 8/8/8/10x 8/8/8/10x Screw ST4*10...
  • Page 7 Crystal Media Email: service8@fireandfireplaceservice.com 4 ⁄ " ⁄ "...
  • Page 8 A screwdriver and a Φ8mm impact drill will be needed. WARNING! Risk of Fire! Keep electric cords, drapery, furnishings or other combustibles at least 3ft. (0.9m) from the front of the electric fireplace.
  • Page 9 Installing the Appliance REMOVE WALL MOUNTING BRACKET REMOVE FRONT TRIM AND GLASS Remove 4 screws on both sides of the trim and remove the trim, then remove the front glass by removing 4 screws and 2 fixers. NOTE: Save all the parts removed from the appliance.
  • Page 10 CHOOSE A WAY TO INSTALL IN WALL RECESSED Build a frame with power supply as shown below. min. 3 ⁄ " EF456B EF459B Model EF457B EF458B 58 ⁄ " 34 ⁄ " 38 ⁄ " 48 ⁄ " Finish the wall by paint or wall paper.
  • Page 11 Insert the unit into the wall and fix it by 4pcs ST4*40 screws. Evenly scatter the crystal media on fuel bed. Carefully fix the glass and trim back, the installation is completed now.
  • Page 12 IN WALL RECESSED Locate the wall mount bracket and mark the position of the holes. Wall Bracket Floor Insert wall plug (for concrete wall only) into the holes and secure the bracket to the wall with ST5*40 screws. Fix the L brackets to the bottom of the firebox with four ST4*10 screws.
  • Page 13 Hang the firebox on the wall bracket and mark the position of the L bracket, then take the firebox down. Drill 2 holes on the marked point, insert 2 wall plugs into the holes, then hang on the firebox again and fix it by two ST5*40 screws. Repeat the steps mentioned above to arrange the fuel bed and fix the front glass and trim back.
  • Page 14: Free Standing

    FREE STANDING Install the standing bracket on the bottom of the appliance with four ST4*10 screws. Repeat the steps mentioned above to arrange the fuel bed and fix the front glass and trim back. BEFORE OPERATION...
  • Page 15: Operation Method

    OPERATION METHOD MANUAL CONTROL HEATING INDICATOR DISPLAY FLAME HEATER STAND BY TEMPERATURE 7 DAYS TIMER INDICATOR 1. STANDBY: Turns on the appliance with the last used settings including heater. Place the appliance into standby mode with all features turned off. 2.
  • Page 16: Remote Control

    REMOTE CONTROL STAND BY BRIGHTNESS FLAME HEATER TEMPERATURE 7 DAYS TIMER TIMER TIME ENTER...
  • Page 19 1. Two AAA alkaline batteries are required for the remote control; 2. Two Use the thumb press and push the bar figure on the back cover down simultaneously, then take out the cover and remove the battery or insert the battery, after this place the cover back on the rear of the remote;...
  • Page 23 Fuel Bed LED Board Receiver...
  • Page 24 Ningbo Richen Electrical Appliance Co., Ltd. Address: No. 19, Yongdinghe Road, Xiapu, Beilun, Ningbo, Zhejiang, P.R.China 3.EF.456.05.103 A2...
