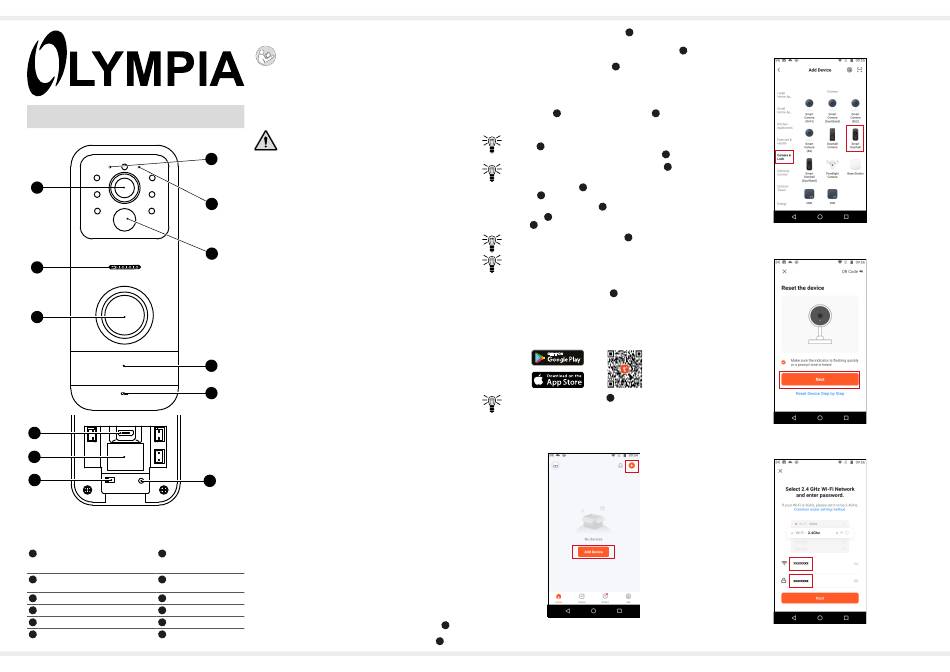

General View

The figures illustrate the device in detail.
Wifi LED Loudspeaker
1 7
Blue, flashing: Not connected
Blue, on: Connected to WiFi
Battery charge indicator LED Camera
2 8
Red: Charge; Green: Ready
Motion detector Reset button
3 9
Name label slot On/Off button
4 10
Microphone MicroSD card slot
5 11
Doorbell button USB charging port
6 12
VDB 824YA Video Doorbell
The operating manual is a component part of the device.
It contains important information regarding safety, use and
disposal. Familiarize yourself with all the information con-
cerning operation and safety of the product before starting
to use it. Only use the product in the way described and
within the area of application specified. If you pass the
product on to third parties, be sure to hand over all the
documents with it.

Safety Instructions

Information on safety, intended use and disposal is
available in the separate supplementary sheet titled
"Safety Information".
1
1

Package Contents

Check the package contents of the doorbell carefully before putting
the doorbell into operation. If anything is missing or damaged,
please contact our Service Department.
2
2
■ 1 × video doorbell, VDB 824YA
■ 1 × operating manual
■ 1 × USB cable
■ 1 × assembly material
■ 3 × name labels made of paper
3
■ 1 × mounting plate
■ 6 × connection cables
■ 6 × clamping devices
■ 1 × Function board, CA 824

Separate Accessories Available

■ Angle adapter, AM 824
■ Digital gong, DC 433

System Requirements

You need a web-capable smartphone which has the Android (from
4.1) or iOS (from 8) operating system and the latest version of the
Tuya Smart app.
4
To put the doorbell into operation for the first time, it must be con-
nected to the Tuya Smart app and the wifi of your router.
5 The doorbell and smartphone/tablet PC must be registered on the
same wifi system.
Observe the following points when selecting the assembly location:
■ The doorbell must be within the range of the wireless home
network (wifi).
■ It is essential to observe local laws and regulations!

Features

The functions provided to compile pictures and sound means the
doorbell has many areas of application in the fields of surveillance
and communication.
All the functions can also be controlled via remote access using the
Tuya Smart app on your smartphone/tablet PC.
Remote access
■
You can enjoy remote access to the doorbell via the Tuya Smart
app. You can then watch live pictures or a video recording and con-
trol other functions.
■ Intercom function
You can use the Tuya Smart app to listen or speak directly into the
room being monitored.
■ Shared access
You can use the Tuya Smart app to share access to your doorbell
and allow trusted persons to watch the live images from the doorbell
and control functions.

Inserting a MicroSD Memory Card (Option)

If you want to save photos or videos locally on the doorbell
can insert a microSD memory card (not contained in the package
supplied) with up to 64 GB memory space in the doorbell
1. Open the cover of the microSD card slot
the device.
2. Insert the microSD memory card in the microSD card slot
Pay attention that the microSD memory card is aligned correctly.
The design of the microSD card slot
11
alignment.
► The microSD memory card latches audibly in place.

Switching the Doorbell On

1. Switch the doorbell on using the On/Off button
14

Resetting the Doorbell

Before installation, you must charge the battery of the
doorbell fully by connecting the USB cable (contained in
14
the package supplied) to the USB charging port
Before assembly, you must connect the doorbell
Tuya Smart app.
Before connecting the doorbell to the Tuya Smart app, you must
14
reset the doorbell .
14
1. Press and hold the Reset button for about 5 seconds.
9
► The doorbell confirms the reset function via the loud-
14
speaker .
7
After the reset process, the doorbell
automatically and ready for connection.
As a result of the reset, the connection to the home net-
work and Tuya Smart app is disconnected.

Installing the Tuya Smart App

To define further settings on the doorbell
14
connection to your home network (wifi), follow the instructions
provided by the Tuya Smart app.
1. Download the Tuya Smart app from the App Store or Google
Play Store or scan this QR code.
Pay attention that the doorbell
14
tablet PC are within range of the same home network
(wifi).
2. Open the Tuya Smart app on your smartphone/tablet PC and
tap on Add Device.
you
14
.
14
1
3. Access the Camera & Lock screen option and select the Smart
on the rear side of
11
Doorbell device type.
.
11
ensures correct
.
10
.
12
to the
14
4. Confirm in the Tuya Smart app that the indicator is flashing fast
is switched on
14
and tap on Next.
and establish a
and your smartphone/
5. Select your home network and enter the corresponding WiFi
password.
