AIRVERSA Humelle AH1 User Manual

Smart humidifier
Hide thumbs Also See for Humelle AH1:
Table of Contents

Advertisement

Quick Links

Humelle
Smart Humidifier
Model: AH1
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Humelle AH1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIRVERSA Humelle AH1

Summary of Contents for AIRVERSA Humelle AH1

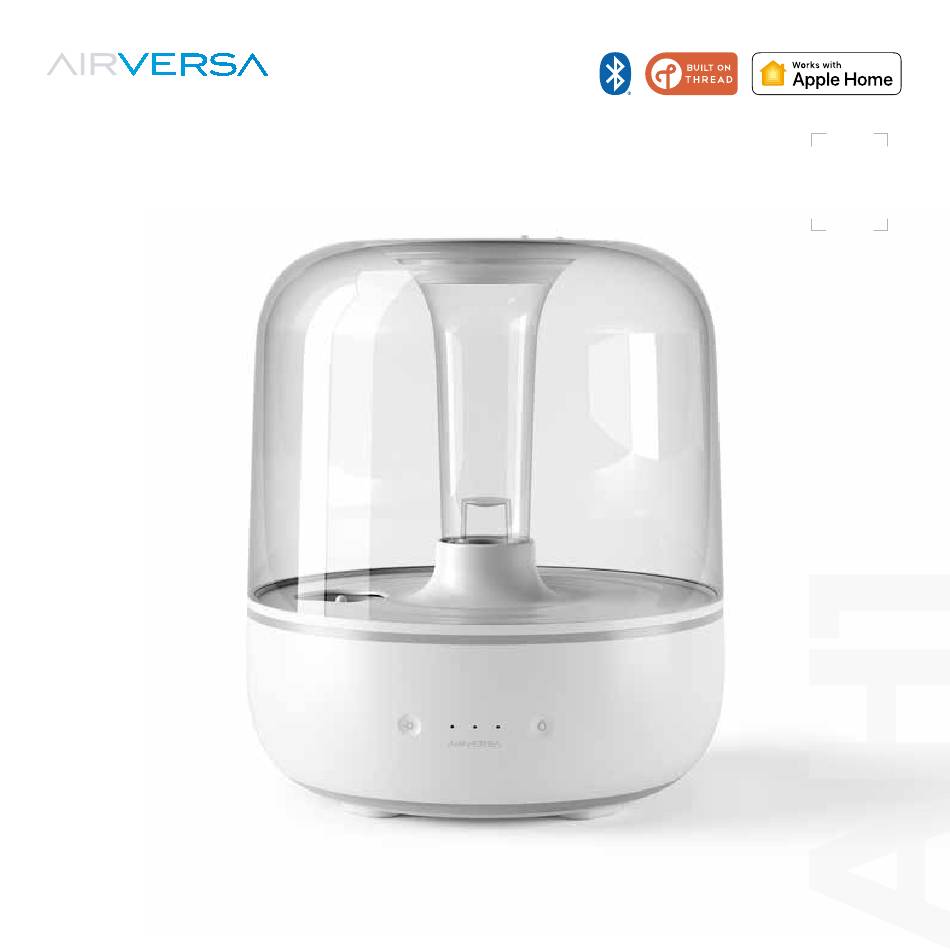

  • Page 1 Humelle Smart Humidifier Model: AH1 User Manual...

  • Page 2: Important Notice

    APPLE HOME (THREAD) SETUP Make sure you have one of the Thread-enabled Apple Home Hubs already setup. HomePod 2nd Gen HomePod mini Apple TV 4K 2nd Gen Apple TV 4K 3rd Gen (Wi-Fi + Ethernet) Download the Sleekpoint App from the Apple App Simultaneously press and hold Power and Light Store, open it and create an account, or open the Buttons for approx.

  • Page 3: Customer Support

    Zum Herunterladen scannen. Scannez pour télécharger. Escanear para descargar. Scansiona per scaricare. CUSTOMER SUPPORT If you have any questions or concerns about your new product, please feel free to contact our Customer Service Team. support@airversa.com www.airversa.com...
  • Page 4 Hello! Thank you for choosing Humelle, our latest innovative product designed to optimize the humidity levels in your home, while providing a customizable and visually appealing atmosphere with its smart ring light feature. With its advanced sensors, Humelle can detect the current humidity levels in your home and adjust its output accordingly to maintain a target humidity level of your choosing.

  • Page 5: Important Safety Instructions

    PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS HUMIDIFIER. IF THE POWER ADAPTER OR UNIT DOES NOT WORK, CONTACT AIRVERSA CUSTOMER SERVICE IMMEDIATELY. When using electrical products, especially when children are present, basic safety precautions should Always be followed to reduce the risk of fire, electric shock, or other injury.
  • Page 6 This humidifier is not to be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Supervise children when they are near the humidifier.
  • Page 7 WARNINGS DO NOT move or tilt humidifier while it is in operation. DO NOT use the humidifier in wet environments. DO NOT use hot water. DO NOT add essential oils or other substances to the Water Tank in the humidifier. DO NOT place the humidifier near sources of heat, such as stovetops, ovens, or radiators.
  • Page 8 DO NOT fill the humidifier with hot or boiling water. Use cool or lukewarm water to avoid the risk of burns. DO NOT let the water in the humidifier sit for extended periods of time. This can lead to bacteria growth and potential health hazards.

  • Page 9: What's In The Box

    WHAT’S IN THE BOX Humelle Smart Humidifier User Manual *Power Adapter Aroma Pad Cleaning Brush *The image shown here is indicative only. If there is inconsistency between the image and the actual product, the actual product shall govern. *The plug type of the power adapter varies depending on the region where this device is purchased.

  • Page 10: How It Works

    HOW IT WORKS Water is released from the Water Tank into the Base Water Chamber. A Nebulizer vibrates at ultrasonic frequency, breaking the water into a fine mist. The mist is quietly propelled by a fan up a vertical Mist Tube to the Mist Nozzle where the cool, visible mist enters the room. This humidifier will automatically shut off when the water level is low or when the Water Tank is removed from the Base.
  • Page 11 Plunger Water Tank Cap Noise Silencer (Detachable for cleaning purpose) Air Outlet Essential Oil Tray Humidity and (Detachable for cleaning purpose) Temperature Sensor Intake Vent Power Socket Aroma Pad (Detachable for cleaning purpose) Air Inlets...

  • Page 12: Control Center

    CONTROL CENTER Light Button Mist Button Tap: Tap: Turn the ring light on Turn the mist on Cycle through favorite lighting themes Cycle through mist levels (Medium, Max, Auto) Press & hold: Press & hold: Turn the ring light off Turn the mist off LEDs Smart Ring Light...

  • Page 13: Specifications

    SPECIFICATIONS Model Name Rated Input Voltage 100-240 V Frequency 50/60 Hz Water Tank Capacity 5.5L | Approx. 1.5 gallons Max Mist Output 330 ± 20 ml/h Maximum Runtime Up to 60 hours Effective Room Size 50 m | 540 sq.ft. Wireless Protocol Thread Bluetooth...
  • Page 14 SETTING UP YOUR HUMELLE Remove all packaging materials. Remove Make sure Water Cap is secured in place. Clean the Water Tank with clean water twist tie from power cord and extend power before first use. cord to full length. Warnings: - Do not place the humidifier directly on floors, carpets, or rugs.
  • Page 15 FILLING/REFILLING ALWAYS unplug the humidifier before Remove the nozzle, use the handle to removing the Water Tank. remove Water Tank from the base and turn upside down. Remove Water Tank Cap by turning counterclockwise (left). Fill Tank with cool water. DO NOT fill Lock Water Tank Cap by turning with warm or hot water.
  • Page 16 Warnings: Tank should be carried using two hands; one hand on the Tank Handle and the other supporting the bottom of the Tank. Hard Water and White Dust: 1. High mineral content in your water, also known as hard water, may cause a white mineral residue to accumulate on surfaces in the room near the humidifier.

  • Page 17: Using Your Humidifier

    USING YOUR HUMIDIFIER Plug in the humidifier. The power indicator on the display will light up along with a long beep. If there is no water in the tank, you will hear multiple short beeps. Warnings: Position humidifier to direct mist output away from walls, furniture and bedding. Mist Nozzle This humidifier features a detachable, dual-directional Mist Nozzle.

  • Page 18: Led Indicators

    LED Indicators Power On Note: Low Mist When Auto Mist mode is active, The High Mist LED indicators stay on when the Auto Mist - Nebulizing humidifier is nebulizing, and slowly Auto Mist - Pausing blinks when humidification pauses. No Water Comfortable Humidity A comfortable humidity level is between 40-60%.
  • Page 19 Using the essential oil tray This humidifier features an Essential Oil Tray that can be used with your favorite essential oil for added enjoyment. This is not a diffuser – the oil does not come in contact with water and is passively evaporated into the air.

  • Page 20: Cleaning Your Humidifier

    CLEANING YOUR HUMIDIFIER To keep your humidifier running efficiently, you should clean your humidifier Water Tank and Base Water Chamber every 3 days, and when you’re ready to store it. DO NOT store with water inside the Water Tank. Pack unit in original carton and store in a cool, dry location.

  • Page 21: Before Cleaning

    Before Cleaning 1. Unplug humidifier. Never clean the humidifier when it is operating. 2. Remove Water Tank and empty completely from the Water Tank and Base. 3. Remove any accessories from the Water Tank and Base: Mist Nozzle Noise Silencer Water Tank Cap Water Level Sensor Essential Oil Tray...

  • Page 22: Troubleshooting

    TROUBLESHOOTING If Water Tank is empty, fill Water Tank with only distilled, demineralized or purified water. Make sure the water tank is properly in place. Make sure the plunger works properly. Plug the humidifier and tap Mist Button to turn Mist leaks from the base the mist on.
  • Page 23 Failure to keep this unit clean from mineral deposits normally contained in any water supply will affect the efficiency of operation of this unit. Customer failure to follow these instructions may void the warranty. If you need further assistance, please feel free to contact us via support@airversa.com...

  • Page 24: Warranty

    If you discover that your product is defective within the specified warranty period, please contact Customer Support via support@airversa.com. DO NOT dispose of your product before contacting us. Once our Customer Service Team has approved your request, please return the product with a copy of the invoice and order ID.
  • Page 25 FCC WARNNINGS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
