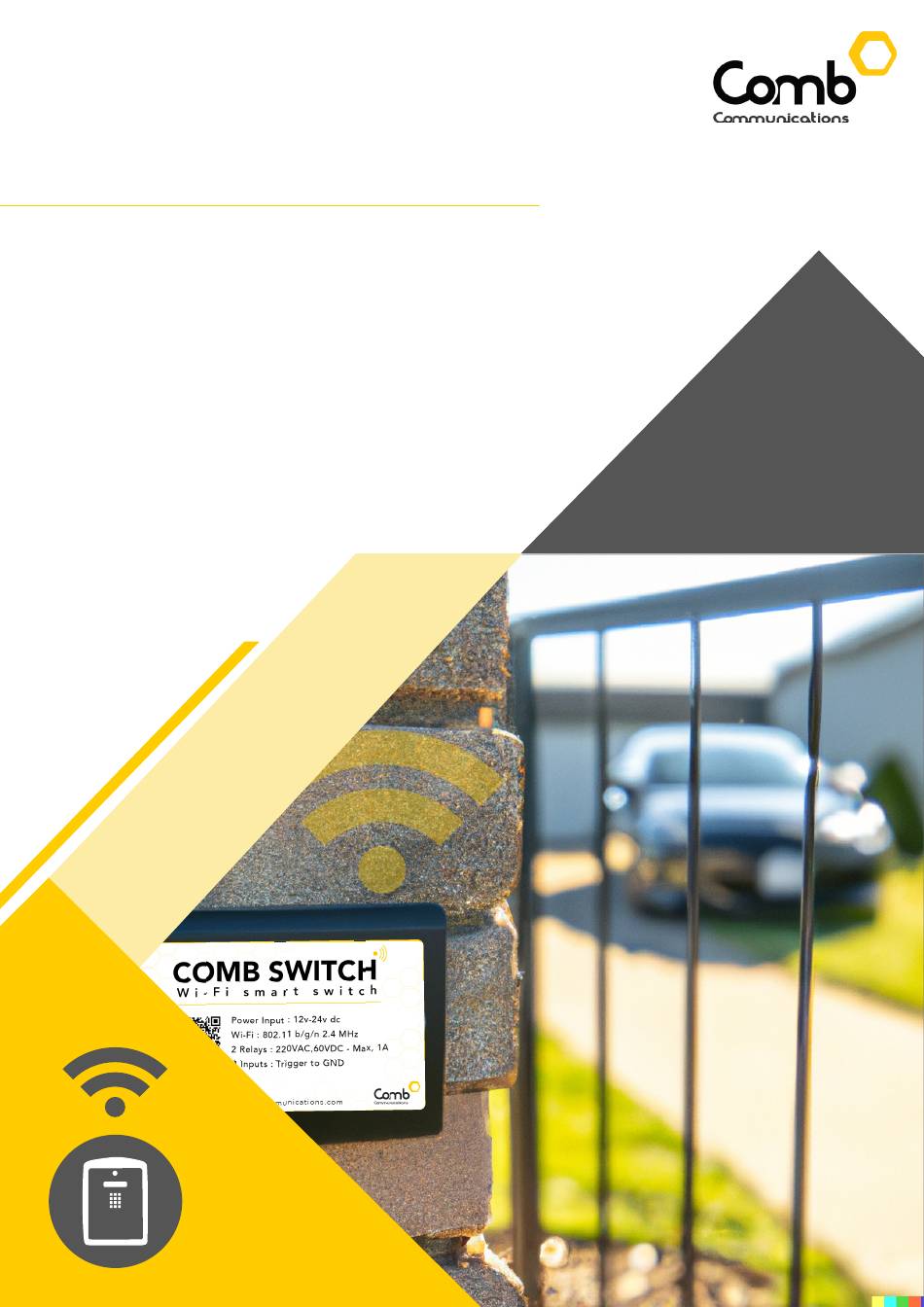

COMB SWITCH
User guide
The Comb Switch is a device that utilizes WiFi and
comes equipped with two relays, a TAP TAP interface,
an onboard receiver that works with the Centurion
remote, and four inputs. It seamlessly integrates with
the Comb Portal and MyComb mobile application,
offering complete compatibility.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Switch and is the answer not in the manual?

Questions and answers

Related Manuals for Comb Communications Switch

Summary of Contents for Comb Communications Switch

  • Page 1 COMB SWITCH User guide The Comb Switch is a device that utilizes WiFi and comes equipped with two relays, a TAP TAP interface, an onboard receiver that works with the Centurion remote, and four inputs. It seamlessly integrates with the Comb Portal and MyComb mobile application,...
  • Page 2 Connect a 12V to 15V DC power supply to the device. Power on the Comb Switch (The Green LED will turn on). The Comb Switch will enter the Access Point (AP) mode for 5 minutes. Open the Wifi settings page on a mobile phone.
  • Page 3 COMB SWITCH The WiFi Manager screen will open, click on the Configure WiFI button. Select the SSID (Wifi network) that you will be connecting your Comb Switch to. Enter the password for the selected SSID (Wifi network). Ensure the Comb Server is set to “prod”...
  • Page 4 COMB SWITCH The Comb Switch device will automatically reset and use the selected Wifi credentials to connect to the network. The middle (Blue) LED will start to be active. The different Blue LED statuses are: Solid On: WiFi Connected and Comb Server Connected.
  • Page 5 COMB SWITCH COMB PORTAL CONFIGURATION. As the Comb Switch is a standalone device, the device requires its own license to be purchased. License Purchase SWITCH Log on to the Comb Portal and navigate to the “Comb Store” from the side menu (ADMINISTRATION -> Comb Store) Select the “HARDWARE SOLUTIONS”...
  • Page 6 COMB SWITCH Adding the Comb Switch device Select Access Setup. Add a new Access Point and enter the Access Point name and location followed by clicking “save”. Alternatively open an existing Access Point.
  • Page 7 Add a device by clicking “ADD” and selecting the Comb Switch from the drop-down box. Enter the Serial number, device name and click “save”. Add a new lane or open an existing lane and link the Comb Switch device to that lane.
  • Page 8 Add a Mobi trigger for the required relay. To add a device to an existing Access Point simply select the desired Access Point and add the “Comb Switch” to that Access Point MyComb Mobile App Configuration Download the MyComb application from Play store or the Apple store.
