Summary of Contents for VPixx Technologies VPX-TRK-9002

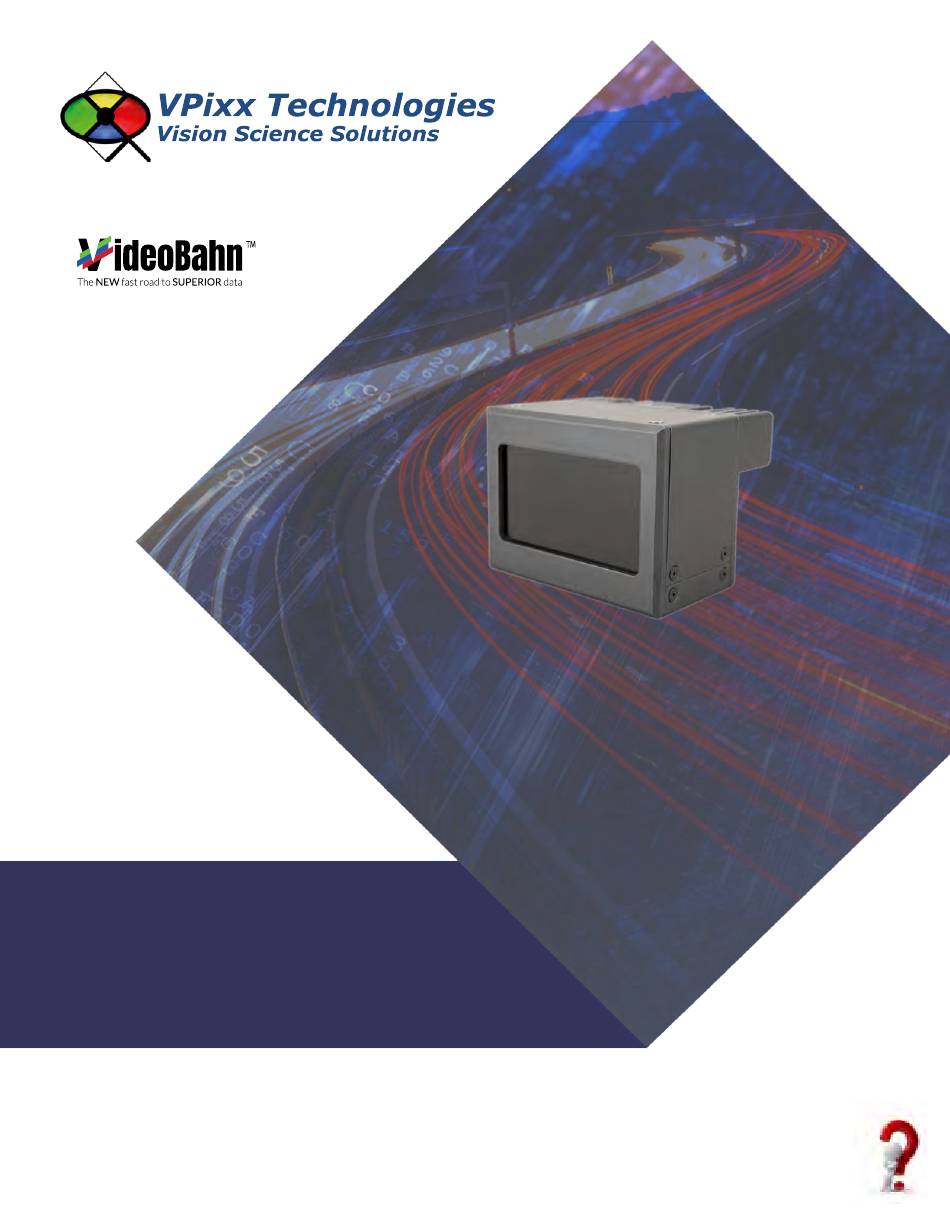

- Page 1 InfraRed Short-Range 940nm (VPX-TRK-9002) Hardware Manual Version 1.0 Phone : (514) 328-7499 1 (844) 488-7499 - Toll Free USA/Canada EMAIL: support@vpixx.com www.vpixx.com...
- Page 3 Hardware Manual IMPORTANT VPixx Technologies Inc. reserves the right to modify or otherwise update this document without notice as required by a constantly evolving marketplace, client requests or to adapt to new progress or constraints in engineering or manufacturing technology. The information contained in this document may change without prior notice.
-
Page 4: Table Of Contents
Connector description ..............................13 Interface cable description ............................... 14 Typical setup ..................................14 Maintenance and Calibration ............................... 15 Cleaning the InfraRed Short-Range 940nm illuminator ....................15 Specifications ..................................15 Warranty ....................................15 Copyright © 2020 VPixx Technologies Inc. All Rights Reserved... -
Page 5: Table Of Figures
InfraRed Short-Range 940nm illuminator Hardware Manual Table of Figures FIGURE 1 - INFRARED CONNECTOR ................................. 11 FIGURE 2 - CABLE CONNECTOR RED DOT AND NOTCH ........................... 11 FIGURE 3 - MOUNTING SCREW ................................12 FIGURE 4 - TRACKPIXX3 REAR VIEW ................................ 14 FIGURE 5 - TYPICAL SETUP .................................. -
Page 6: Compliance Information
This Class A digital apparatus complies with Canadian ICES-003. CISPR warning This is a Class A product. In domestic environments this product may cause radio interference in which case the user may be required to take adequate measures. Copyright © 2020 VPixx Technologies Inc. All Rights Reserved... -
Page 7: For European Countries
Supplementary Information: To remain CE compliant, only CE compliant parts should be used with this product. Maintaining CE compliance also requires proper cable and cabling techniques. VPixx Technologies will not retest systems or components that have been modified by customers. -
Page 8: Declaration Of Rohs Compliance
The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste. For support@vpixx.com more information call VPixx Technologies Inc. or email us at Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive). -
Page 9: Overview
For technical questions or product support information, do not hesitate to contact the VPixx support team by phone or by sending an E-mail to support@vpixx.com. By creating your MyVPixx account on the VPixx Technologies website, you will have access to additional product documentation, demos, source code examples and the latest firmware and software drivers. -
Page 10: Warnings, Safety Information & Usage Notes
If you use the InfraRed Short-Range 940nm illuminator in stand-alone mode (without a DATAPixx3 system), ensure that your power source limits current to a maximum of 2.5A on the 12V and 5V rails and each one have a Low Voltage Limited Energy. Copyright © 2020 VPixx Technologies Inc. All Rights Reserved... -
Page 11: Safety Information
Ensure that adequate air circulation surrounds the InfraRed Short-Range 940nm illuminator device. • In the event of failure, the InfraRed Short-Range 940nm illuminator device should be replaced. There are no user serviceable/adjustable parts inside. Contact VPixx Technologies Inc. for repair or replacement as required. -
Page 12: Included Equipment
After unpacking your InfraRed Short-Range 940nm illuminator device, verify that it contains the following components. Component Description Visual representation InfraRed Short-Range 940nm illuminator device Interface cable for using with a TRACKPixx3 camera Copyright © 2020 VPixx Technologies Inc. All Rights Reserved... -
Page 13: Infrared Short-Range Installation
InfraRed Short-Range 940nm illuminator Hardware Manual InfraRed Short-Range installation Connect the Infrared cable into the rear connector, as seen in the following picture. Interface cable connector Figure 1 - Infrared connector This connector possesses an alignment notch at the top. Ensure that when inserting the connector, the cable is properly aligned so that its red dot (see picture below) is in line with the female connector notch. -
Page 14: Mounting Apparatus
2. Once in its desired location along the mounting arm, tighten the mounting screw at the back of the InfraRed Short-Range 940nm illuminator device to secure it in place. Figure 3 - Mounting screw Copyright © 2020 VPixx Technologies Inc. All Rights Reserved... -
Page 15: Connector Description
InfraRed Short-Range 940nm illuminator Hardware Manual Connector description A LEMO connector is used for interfacing the InfraRed Short-Range 940nm illuminator device with other equipment. The following table lists the pin descriptions. Pin # Description Additional information +12 VDC power supply Connect the +12 VDC input to a stable power supply. -
Page 16: Interface Cable Description
The interface cable supplied with the InfraRed Short-Range 940nm illuminator has a straight connection. Pin1 to Pin1, Pin2 to Pin2, etc. One cable end has a 7 pin, which is floating. You can plug this cable directly to the VPixx Technologies TRACKPixx3 camera box (VPX-TRK-3410C) on the 7-pin LEMO connector. Interface cable connector for InfraRed... -
Page 17: Maintenance And Calibration
InfraRed Short-Range 940nm illuminator Hardware Manual Maintenance and Calibration The InfraRed Short-Range 940nm illuminator device does not require calibration. Cleaning the InfraRed Short-Range 940nm illuminator Clean your InfraRed Short-Range 940nm illuminator device if required, using an appropriate microfiber cleaning cloth. Do not use cleaners that contain any petroleum-based materials such as benzene, thinner, or any volatile substance Specifications... - Page 18 VPixx Technologies Inc. 630 Clairevue West suite 301 Saint-Bruno, Qc Canada, J3V 6B4 TEL/FAX: (514) 328-7499 TOLL FREE: (844) 488-7499 (USA/CANADA) EMAIL: sales@vpixx.com...
