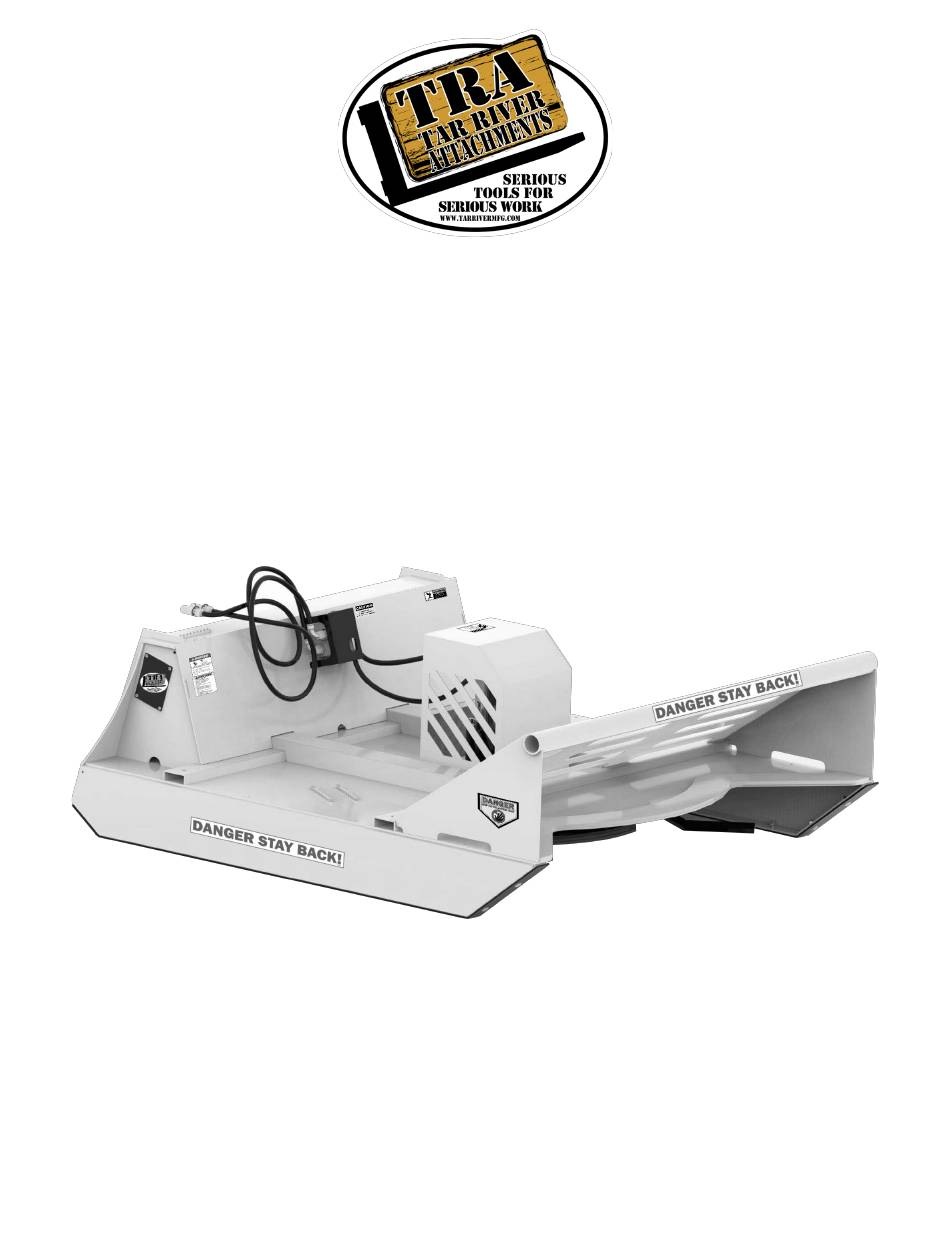

Page 1 Heavy Duty Brush Cutter TRBC60, TRBC72 Operator’s Manual 09/23...
Page 2 TRBC Heavy Duty Brush Cutter Page left blank intentionally...
Page 3 TRBC Heavy Duty Brush Cutter TO THE DEALER: Assembly and proper installation of this product is the responsibility of the Tar River dealer. Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.
Page 4: Table Of Contents
TRBC Heavy Duty Brush Cutter Table of Contents Introduction …………………………………………………………………………………………….. 5 Technical Specifications ……………………………………………………………………………….. 5 Safety …………………………………………………………………………………………………… 6 Safety Signal Words ……………………………………………………………………………………. 6 General Safety Guidelines ……………………………………………………………………………… 7 Safety Decal Care ………………………………………………………………………………………. 7 Before Operation ……………………………………………………………………………………….. 8 During Operation ……………………………………………………………………………………….. 9-12 Highway And Transport Operations ……………………………………………………………………...
Page 5: Introduction
Extreme blade pan that is extra large to maintain force & momentum • 3 cutting blades • Units come standard with flat faced couplers & hoses • Standard universal Skid Steer Mount • TRBC60 TRBC72 Weight 1,074 lbs. 1530 lbs. Mount Universal Skid Steer Universal Skid Steer Cutting width 60”...
Page 6: Safety
TRBC Heavy Duty Brush Cutter Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification.
Page 7: General Safety Guidelines
TRBC Heavy Duty Brush Cutter Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
Page 8: Before Operation
TRBC Heavy Duty Brush Cutter Important Safety Information How to install Safety Signs: Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper. •...
Page 9: During Operation
TRBC Heavy Duty Brush Cutter Important Safety Information During Operation Children should not be allowed on the machine. • Clear the area of small children and bystanders before moving the machine. • If using a towing unit, securely attach implement by using a hardened 3/4” pin, a metal retainer, and safety •...
Page 10 TRBC Heavy Duty Brush Cutter Important Safety Information Debris Discharge Warnings Your brush cutter discharges debris out the front of the machine. When cutting with the Brush Cutter, • NEVER discharge material toward bystanders. All bystanders must be AT LEAST 75 feet away when operating the cutter.
Page 11 TRBC Heavy Duty Brush Cutter Important Safety Information Rotating Parts Warnings ALWAYS disengage power to the Brush Cutter and shut the skid steer loader engine off prior to leaving • the operator's cab or performing any inspection or maintenance to either the brush cutter or the skid steer loader.
Page 12 TRBC Heavy Duty Brush Cutter Important Safety Information Use the oil recommended by the manufacturer, it is forbidden to use the brushcutter when there is a • different type of hydraulic oil in the vehicle than in the machine. Used oil should be stored in sealed containers and periodically delivered to points for their •...
Page 13: Highway And Transport Operations
TRBC Heavy Duty Brush Cutter Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of unit can result. Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an •...
Page 14 TRBC Heavy Duty Brush Cutter Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death. • Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement. •...
Page 15: Operating Instructions
TRBC Heavy Duty Brush Cutter Operating Instructions Attaching the Brush Cutter The installation of your Brush Cutter is the same for any other powered attachment for your skid steer loader: 1. Using the attached instructions, connect the Safety chain to skid steer prior to using Brush Cutter. 2.
Page 16 TRBC Heavy Duty Brush Cutter Operating Instructions Step 2: Using one end of safety chain, drop number of desired links into link hole. Once chain is in place check to ensure it is secure and cannot be pulled back through link hole. Step 3: Take the loose end of the chain and secure it to the Brush Cutter.
Page 17 TRBC Heavy Duty Brush Cutter Operating Instructions Cutting Operation The brush cutter is capable of, and in fact intended to be utilized for, mulching trees and other vegetation of varying heights and diameters of up to 5” - 6”. As a safety feature, when cutting large diameter vegetation, the Brush Cutter is equipped with a hydraulic motor cushion valve for shut down of the blade system.
Page 18: Maintenance
TRBC Heavy Duty Brush Cutter Maintenance Before each use and after 6 hours of operation of the brush cutter, check its technical condition, including • the condition of screw connections. It is forbidden for people to stay under the raised brush cutter, there is a risk of serious injury by being •...
Page 19: Knife Replacement
TRBC Heavy Duty Brush Cutter Knife Replacement The condition of the knives should be checked before each use of the machine, and after 6 hours of labour. Steps to follow when replacing knives: 1. Before replacing the blades, park the brush cutter on a level surface, turn off the engine in the vehicle, secure the vehicle and the machine against sliding, make sure that the power supply to the brush cutter is turned off, take care of your own safety when changing the blades.
Page 20: Technical Data And Operational Characterisics
TRBC Heavy Duty Brush Cutter Technical data and operational characteristics TRBC-60 Main dimensions Name Unit Parametre Type Rotary Cutting width [mm] 1500 Power demand [kW] Number of work units [pcs.] Number of knives [pcs.] Cutting height high [mm] Cutting unit rpm [RPM] 500±50 Max.
Page 21 TRBC Heavy Duty Brush Cutter Technical data and operational characteristics TRBC-72 Main dimensions Name Parametre Type Rotary Cutting width [mm] 1800 Number of work units [pcs.] Number of knives [pcs.] Cutting height high [mm] Cutting unit rpm [RPM] 500±50 Max. work speed [km/h] Transport speed [km/h]...
Page 22: Torque Specifications
TRBC Heavy Duty Brush Cutter Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for Metric hardware.
Page 23: Parts Breakdown
Heavy Duty Brush Cutter TRBC60, TRBC72 Parts Manual 09/23...
Page 24 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions TRBC60 Frame...
Page 25 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching to Tractor Attaching PTO Shaft Operating Instructions TBRC60 Frame Item Belco Part Number Description Qty. TRBC000740 Bolt M10x25-8.8 TRBC000450 Washer M10 TRBC000456 Standard washer M10 TRBC620004 Cover WKT TRBC002800 Ball head bolt M6x16 TRBC620042 Side cover WKT TRBC000292...
Page 26 TRBC Heavy Duty Brush Cutter Hopper Assembly Hopper Assembly Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions TBRC60 Drive Unit...
Page 27 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching to Tractor Attaching PTO Shaft Operating Instructions TBRC60 Drive Unit Item Belco Part Number Description Qty. TRBC003654 Flat-face coupler cpl. TRBC003653 Rubber metal bonded washer TRBC002478 Hose P51/P52 M22x1.5 2SC DN13 L-1650 TRBC000581 Straight coupler ZN-140 G3/4/M22x1.5 ED/15L TRBC000804...
Page 28 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions TBRC60 Cutting Unit...
Page 29 TBRC60 Cutting Unit Item Belco Part Number Description Qty. TRBC000462 Standard washer M20 TRBC003674 Self-wedge washer M20 TRBC000255 Self-lock nut M20 TRBC620026 Working disc WKT TRBC003384 Knife WKT TRBC620025 Knife bushing WKT TRBC000792 Bolt M20x70-8.8 TRBC620045 Blade set TRBC60 (Includes items 1,2,3,5,6,7)
Page 30 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions TRBC72 Frame...
Page 31 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching to Tractor Attaching PTO Shaft Operating Instructions TBRC72 Frame Item Belco Part Number Description Qty. TRBC002800 Ball head bolt M6x16 TRBC620042 Side cover plug TRBC610094 Hydraulic block cover TRBC000471 Standard washer M8 TRBC000455 Spring washer M8 TRBC000805...
Page 32 TRBC Heavy Duty Brush Cutter Hopper Assembly Hopper Assembly Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions TBRC72 Drive Unit...
Page 33 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching to Tractor Attaching PTO Shaft Operating Instructions TBRC72 Drive Unit Item Belco Part Number Description Qty. TRBC003654 Flat-face coupler cpl. TRBC003653 Rubber metal bonded washer TRBC001247 Hose C21P52/213/13-1800 TRBC000581 Straight coupler ZN-140 G3/4 /M22x1,5 ED/15L TRBC003323 Hydraulic block WKT TRBC000443...
Page 34 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions TBRC72 Cutting Unit...
Page 35 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching to Tractor Attaching PTO Shaft Operating Instructions TBRC72 Cutting Unit Item Belco Part Number Description Qty. TRBC620066 Cutting unit main disc TRBC000294 Self lock nut M16 TRBC000460 Standard washer M16 TRBC000290 Self-lock nut M24 TRBC003675...
Page 36 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions Decals...
Page 37 TRBC Heavy Duty Brush Cutter Hopper Assembly Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions Decals Item Part # Description Qty. D1317 Decal Danger To prevent serious injury 950-917B Decal Caution To avoid serious injury D1319 Decal Caution Moving Machinery 9270110 Decal Warning High Pressure D1003...
Page 38: Warranty
TRBC Heavy Duty Brush Cutter Warranty LIMITED WARRANTY Belco Resources Equipment warrants to the original purchaser of any new piece of machinery from Belco Re- sources Equipment, purchased from an authorized Belco Resources Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and mu- nicipalities’...
Page 39 TRBC Heavy Duty Brush Cutter Page left blank intentionally...
