HEX31WP-TX-US
Introduction
FEATURES:
• Features 2 x HDMI & 1 x USB-C inputs with manual / auto source selection
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Manual input selection via front panel and RS-232
• Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products*
• Magnetic faceplate surround and US Decora style backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device
Contact:
support@blustream.com.au
Quick Reference Guide

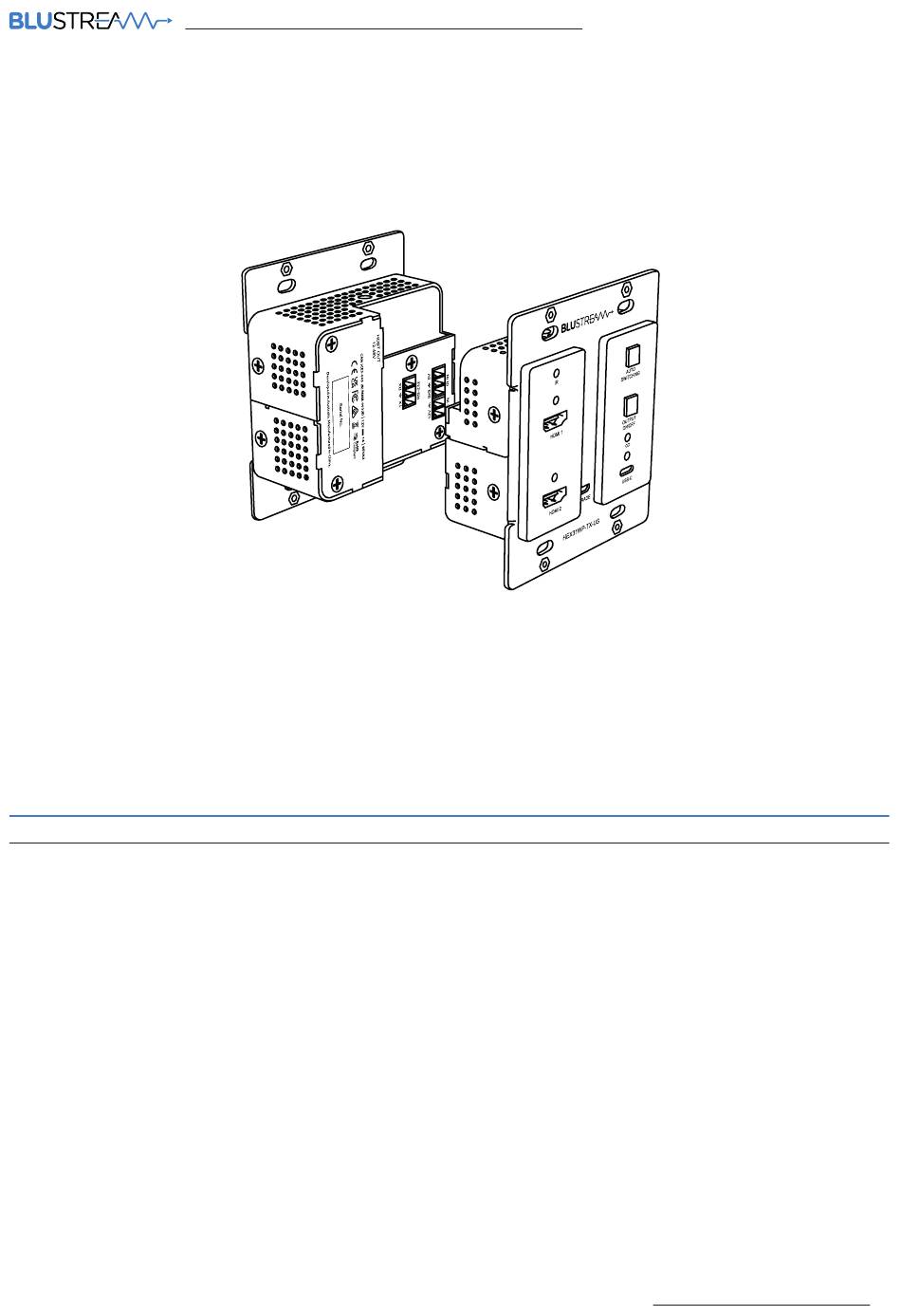

Our HEX31WP-TX-US HDMI / USB-C wall plate HDBaseT™ Transmitter is a multi-
format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m
at 1080p (40m at 4K 60Hz 4:2:0). The HEX31WP-TX-US features both manual or
automated source selection and includes display on / off control via CEC, RS-232
and IR (via compatible HDBaseT™ receiver / matrix). The HEX31WP-TX-US has been
designed to work with all Blustream HDBaseT™ receiver and matrix solutions,
be installed in US Decora style backboxes and can be powered locally or from
compatible Blustream HDBaseT™ products.
|
support@blustream-us.com
HEX31WP-TX-US
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
01
Advertisement
Table of Contents
Related Manuals for Bluestream HEX31WP-TX-US
Summary of Contents for Bluestream HEX31WP-TX-US
- Page 1 Our HEX31WP-TX-US HDMI / USB-C wall plate HDBaseT™ Transmitter is a multi- format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX31WP-TX-US features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™...
- Page 2 HEX31WP-TX-US QUICK REFERENCE GUIDE Front Panel Description HDMI 1 AUTO SWITCHING HDMI 1 OUTPUT ON/OFF HDMI 2 HDMI 2 USB-C IN UPGRADE HEX31WP-TX-US HDMI Input 1 - Type A HDMI port to connect HDMI source device HDBaseT™ Link Status Indicator - Illuminates when the Transmitter is connected to the Receiver / Matrix successfully...
- Page 3 Stop Bit: Parity Bit: none For a complete RS-232 command list please see the HEX31WP-TX-US User Manual - available to download from the Blustream website. EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display.
- Page 4 Infrared Receiver The HEX31WP-TX-US features 2 x options for receiving of IR signals. The HEX31PW-TX-US has an in-built IR receiver on the front panel that will receive IR commands from line of sight IR remote controls, and a 3-pin Phoenix connection on the rear panel.
