MANUAL
FOR
PARAMETERS
PROGRAMMER
G914
compatible with
controllers:
G201, G202, G207
Program version 00
USER MANUAL
We request that users carefully study applicable Instructions before connecting and starting up
any of our products.
Should any doubts arise, please contact our Company between 8 a.m. and 4 p.m.
Attention !!! At the bottom of each page you will find last document's update date. Please,
always use the most recent version of the Instructions, which is available free of charge and will
be mailed to you if ordered.
Advertisement
Table of Contents
Summary of Contents for Geco G914
- Page 1 MANUAL PARAMETERS PROGRAMMER G914 compatible with controllers: G201, G202, G207 Program version 00 USER MANUAL We request that users carefully study applicable Instructions before connecting and starting up any of our products. Should any doubts arise, please contact our Company between 8 a.m. and 4 p.m.
- Page 2 USER MANUAL G914 PAGE 2 TABLE OF CONTENTS INTRODUCTION ........................3 1.1. G ......................... 3 RAPHIC SYMBOLS GENERAL CHARACTERISTICS ..................3 PROGRAMMING PARAMETER PROGRAMMER ............4 PROGRAMMING THE TARGET CONTROLLER ............. 4 INFORMATION SIGNALIZED BY LED CONTROL ............5 INFORMATION ON LABELLING AND COLLECTION OF WORN OUT ELECTRICAL AND ELECTRONIC EQUIPMENT ..............

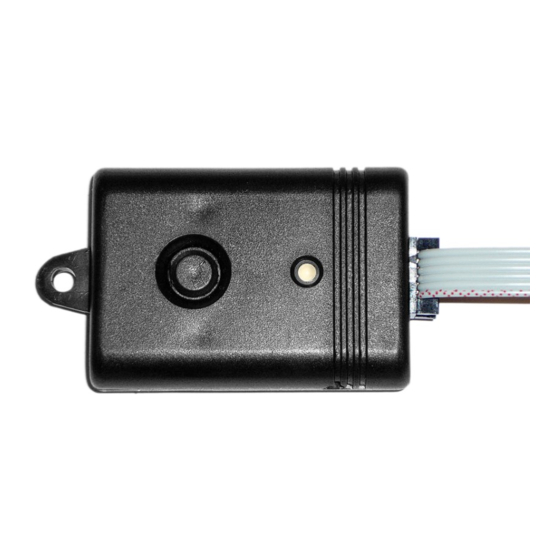

- Page 3 This symbol indicates occurrence of additional information in a chapter. GENERAL CHARACTERISTICS The G914 device has been designed in microprocessor technology, using automatic surface assembly. The purpose of this device is copying the parameters from configured controller to the other controllers of the same type, that have not been configured yet.
- Page 4 USER MANUAL G914 PAGE 4 Programming parameter programmer The programmer must be connected to the data source controller, and then press the button on the side of the programmer (S2, page 3). Data collection process is signalized by blinking of the red LED control.
- Page 5 USER MANUAL G914 PAGE 5 Information signalized by LED control LED control colors Information Both red and green are lighted The device is ready to work Both red and green are blinking Incorrect controller identifier simultaneously Red and green are blinking by turns...
- Page 6 USER MANUAL G914 PAGE 6 NOTES ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… Issue I MARCH 2010...
- Page 7 USER MANUAL G914 PAGE 7 Issue I MARCH 2010...
- Page 8 P.P.U.H. „Geco” Sp. z o. o. Cholerzyn 376, 32-060 Liszki POLAND phone +48 126369811, 126361290 fax. +48 126362002 http://www.geco.pl e-mail: geco@geco.pl...
