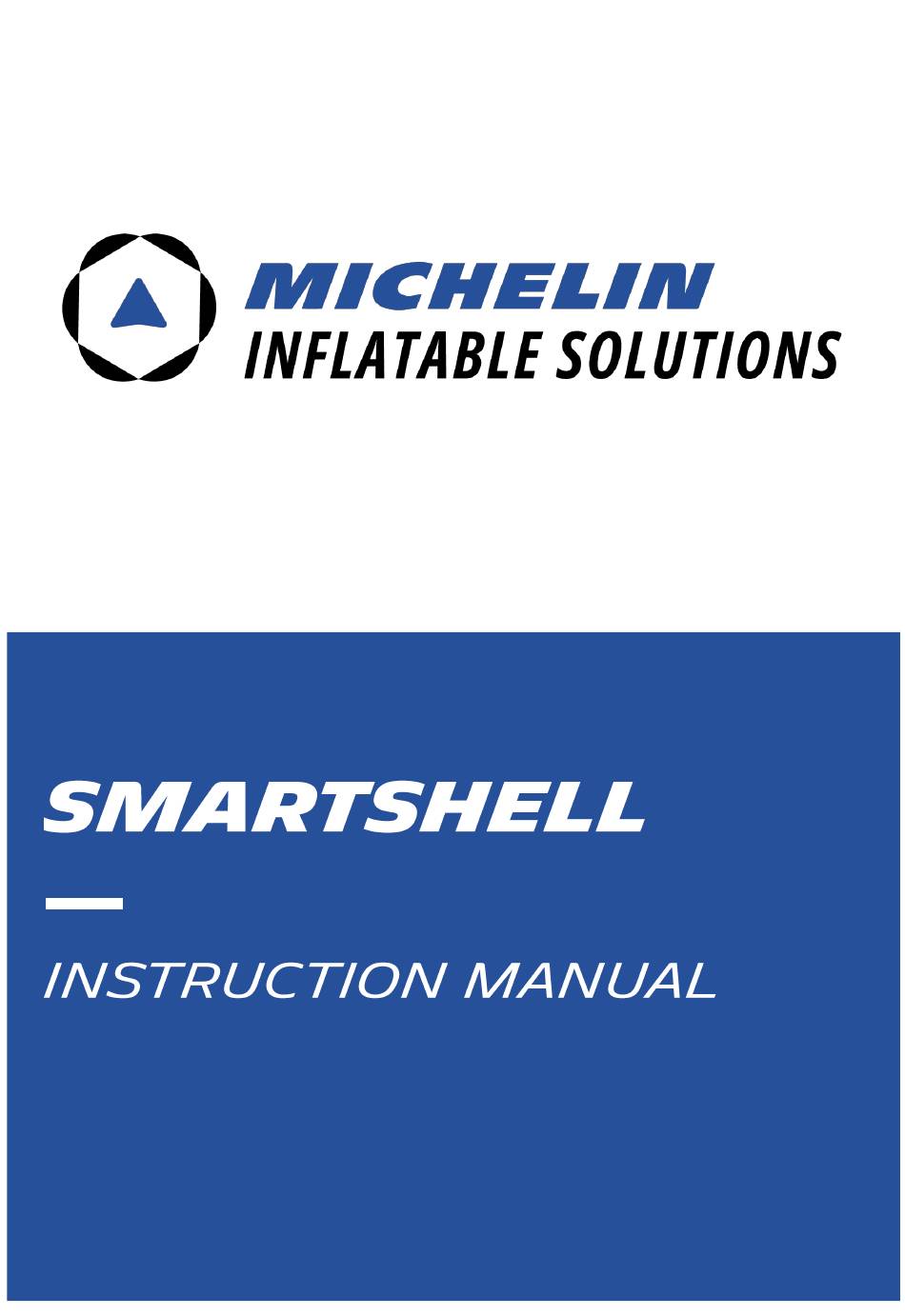

Summary of Contents for Michelin SMARTSHELL
- Page 2 This file contains all our recommendations to guide you in the use of your new MICHELIN Inflatable Solutions product. We recommend that you read it carefully before using your product for the first time, and refer to it if you have any doubts.
- Page 3 CONTENTS Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
- Page 4 1x inflatable structure (B) 2 x pediments + 2 x doors (C) 1x high flow pump (D) 1x repair kit (E) 6 x guy ropes (F) OPTIONAL elements : Ballast bags (G) Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
- Page 5 Upper crown, plug with non-return valve for inflation "Clamp open: allows air to pass through (position when inflating/deflating) "Clamp closed: does not allow air to pass through (position when structure is inflated) Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
- Page 6 III - CHARACTERISTICS Module 4m Inside length Inside width Maximum height 3,7m Weight 60kg Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
-
Page 7: Installation
IV - INSTALLATION Installation takes around 20 minutes, and only two operators are needed to assemble and dismantle the SmartShell shelter. Remove the shelter from its carry bag Laying out the inflatable on the ground Laying out the inflatable on the ground. - Page 8 (when the clamps are closed). "Clamp” closed: does not let air "Clamp" open : allows air to through (position when the pass through (inflate/deflate structure is inflated) position) Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
- Page 9 Before inflating the structure, make sure that all the ZIPs on the pediment doors are open to remove any stress from the curve of the structure and avoid tearing. Zips to leave open Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
- Page 10 Lift the structure to give it its curved shape. ✓ The structure is inflated when it is rigid. You can then turn off the pump and close the plugs. ✓ Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
- Page 11 Secure the structure using the guy ropes. ✓ You can now switch on your structure's LEDs. ✓ Secure the cover with the Velcro fasteners. Make sure the cover is taut. ✓ Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
- Page 12 : Do not attempt to deflate the structure with the inflation pump! You risk damaging the plastic inner tube that is slipped inside each flange. Remove the cover by unzipping it. ✓ Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
- Page 13 Once the structures are spread out on the ground, separate the structures, ✓ then dismantle and fold back the covers. Fold the structure in on itself. ✓ Roll up the structure and slide it, folded, into its carry bag. ✓ Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
-
Page 14: Maintenance
Do not bring the shelter into contact with ✓ flammable or corrosive products, as this may damage the structure. Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA... - Page 15 To ensure that the repair is complete, perform an initial inflation by isolating the freshly repaired bladder from the rest of the structure. Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
-
Page 16: Warranty Conditions
In the event of a return, the following information must appear on the packaging: Name and address of the sender Name and address of the user Number of our delivery note, invoice, quotation, dimensions of the shelter, reasons for the return. Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA... - Page 17 He shall also be liable for any lack of conformity resulting from the packaging, the assembly instructions or the installation when the latter was made his responsibility under the contract or was carried out under his responsibility". Réf/document : Michelin Inflatable Solutions Classification: D3 Conservation : WA...
