Summary of Contents for ATEMPOWER AP3BAS

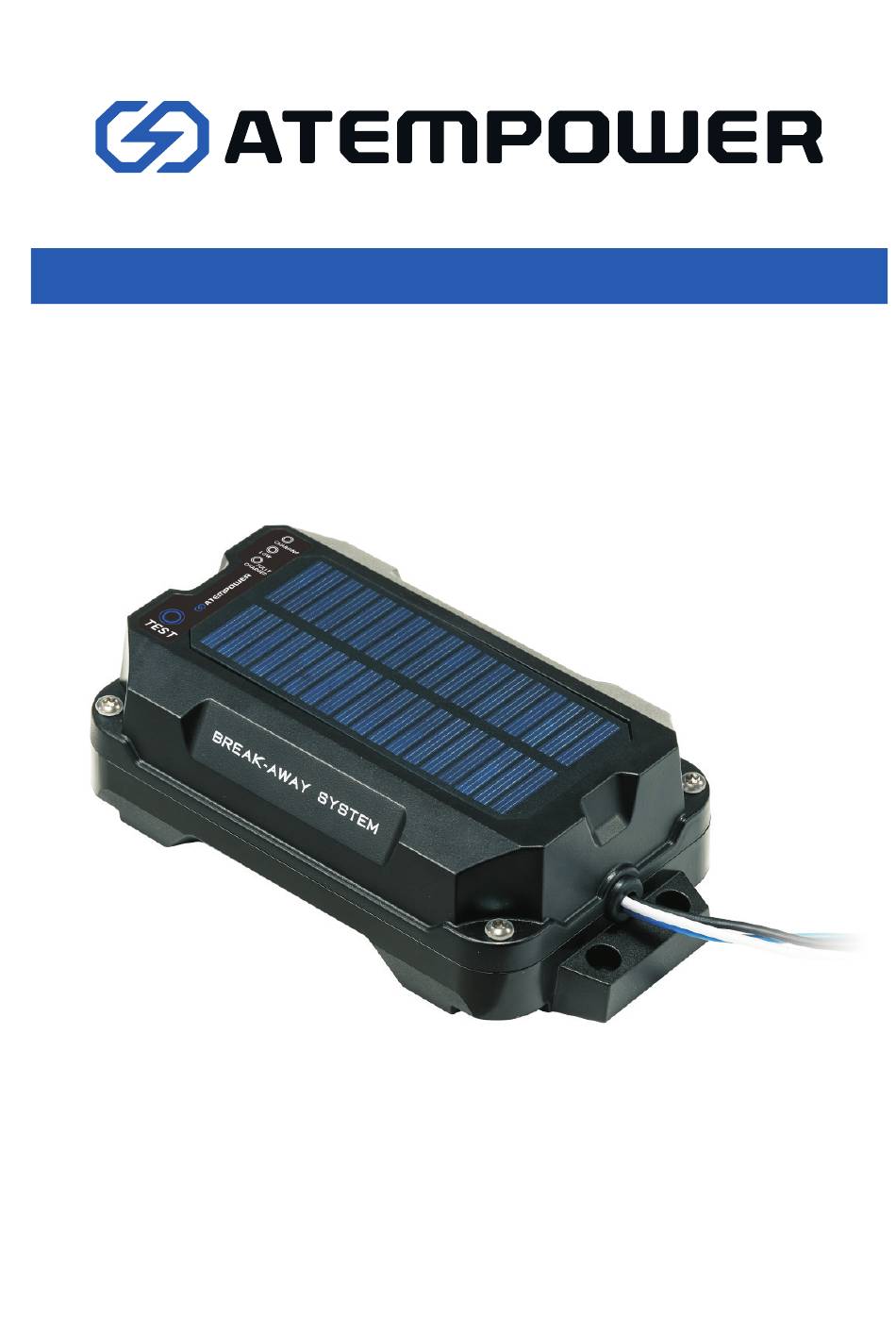

- Page 1 SOLAR TRAILER BREAKAWAY SYSTEM AP3BAS USER MANUAL Please read this manual carefully before installation, and retain it for future reference. V1.0...
- Page 2 ABOUT US ATEM POWER, born in June 2017, as a synonym for exciting outdoor experience, is an Australian company with dedication and passion for the R&D of high quality products in the field of renewable energy products, batteries and related accessories. Since the company was founded, we have committed to innovation that aims to make your life infinitely more convenient.

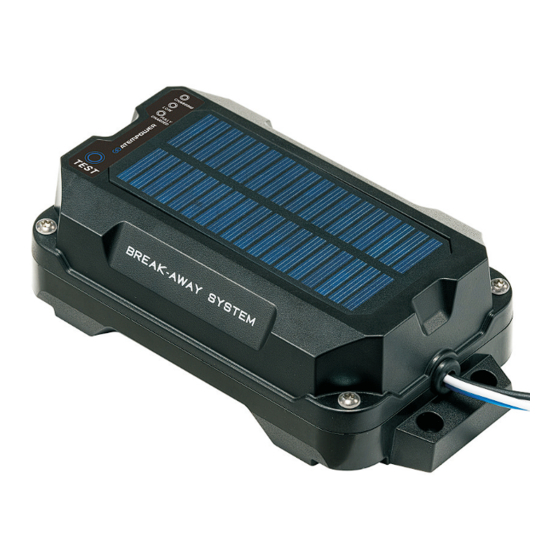

- Page 3 KIT CONTENTS 1 PC(s) ATEM POWER Solar Trailer Brake Controller 1 PC(s) Switch 1 PC(s) User Manual DIMENSIONS SPECIFICATIONS Product Weight: 572g Output Voltage: 10V~14.6V Output Current: Max.10A Input Voltage: Max.20V Operating Temperature: -20~60℃ Solar Panel Wattage: 0.63W Battery Type: LiFePO4 Battery Capacity: 3Ah Waterproof: IP-65 Wire Gauge: 16AWG...
- Page 4 INSTALLATION INSTRUCTIONS ① Mounting the breakaway controller Decide the best location for mounting the unit – it should be a solid surface, usually on drawbar. And ensure that the solar panel face upward. This gives the panel the maximum possible time to collect sunlight and convert it into energy.
- Page 5 OPERATION LED indicators: Fully Charged LED: Illuminates Green when the internal battery has enough charge. ''Charging'' LED: Illuminates Yellow when the internal battery is being charged by the tow vehicle or auxiliary battery at the caravan/trailer. ''Low'' LED: Illuminates Red when the internal battery needs charging before use. Push the ''Test'' button on the front of the unit to check the internal battery condition.
- Page 6 FREQUENTLY ASKED QUESTIONS Q: When there is sunlight but the charging LED on the front panel does not turn on? A: The charging LED only turns on when the internal battery is charged by the towing vehicle or the auxiliary battery. Q: When the test button is pressed the brakes do not lock.
- Page 7 (e. g. a screenshot of the order) and a picture of the damaged goods in their entirety to service@atempower.com or the seller you purchased from for evaluation. In no event shall Manufacturer be liable for any loss or damages of any other kind, whether direct, incidental, consequential including lost profits, exemplary, special or otherwise, including any lost profits or removal, shipping, or installation expenses.
