web browser. IP address assignment can be accomplished either by DHCP or by man-
ually assigning a static IP address. The ATA-100 can be used with or without SIP regis-
tration. If unregistered, the ATA-100 can perform basic tasks like sending voice data to
an IP-PBX or to another device on a LAN. SIP registration opens up an impressive list
of calling features and also enables internet telephone calling.
• Supports SIP 2.0(RFC 3261), TCP/UDP/IP,
RTP/RTCP, HTTP, ICMP, ARP, DNS, DHCP,
NTP, PPPoE, STUN, TFTP, etc.
• Powerful digital signal processing (DSP) to
ensure superb audio quality.
• Supports various codecs including G.711 (a-law
and u-law), G.723.1 (5.3K/6.3K), and
G.729A/B
• Supports out-of-band DTMF via RTP
(RFC2833) or SIP INFO.
• Supports Caller ID/Name display.
• Supports Call Hold, Call Waiting/Flash, Call
Transfer, and Call Forward.
• Supports automated NAT traversal without
manual manipulation of firewall/NAT
• Supports QoS
• Supports device configuration via built-in IVR
or Web browser
• Supports firmware upgrade via FTP
P
P
For Technical Support: Please contact
Cortelco at (800) 288-3132 Ext. 298
• Link between an analog phone or doorbox and
• Voice communication on analog phones
• VoIP internet calling
• Internet enabled kiosks
Power: 100-240V AC, 50-60 Hz 0.3A, power cord supplied
WAN Interface: 1xRJ45 100Base-T
LAN Interface: 1xRJ45 100Base-T
FXS Telephone Port: 1xRJ11
PSTN Port: 1xRJ11
LED: VoIP/PSTN, POWER (The POWER LED is green. The
VoIP/PSTN LED is bicolor yellow/green.)
Dimensions: 118mm (W) x 74mm (D) x 28mm (H)
Shipping Weight: 0.45 kg (1 lb)
Temperature: 0°C to 40°C
Humidity: 10% to 95% (noncondensing)
r
a
c
t
i
c
e
r
a
c
t
i
c
e

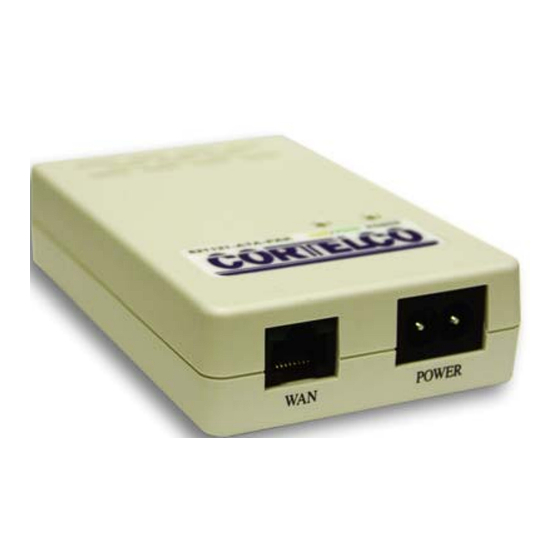

The ATA-100 is an analog telephone adapter
that connects an analog telephone device to
an IP network, enabling SIP-supported VoIP
communication in applications where con-
necting to an existing FXS port is not possible
or practical. In addition, the ATA-100 has an
RJ-11 port for switching to the PSTN analog
phone network via touch tone commands.
Device programming is handled by a built-in
an IP-PBX
between two networked locations (requires
two ATA-100's)
ATA-100
ATA-100
