Instructions
Temperature Controller
Diaphragm-Jet
Replacement temperature controller P/N 60-2257 for the Advanjet HV-2000C,
HV-2100C, and HM-2600C Jet Controller.
For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual and all related
manuals before using this equipment. Save these instructions.
™
Technology
PROVEN QUALITY. LEADING TECHNOLOGY.
3A5912A
EN
Advertisement
Table of Contents
Summary of Contents for Advanjet Diaphragm-Jet 60-2257

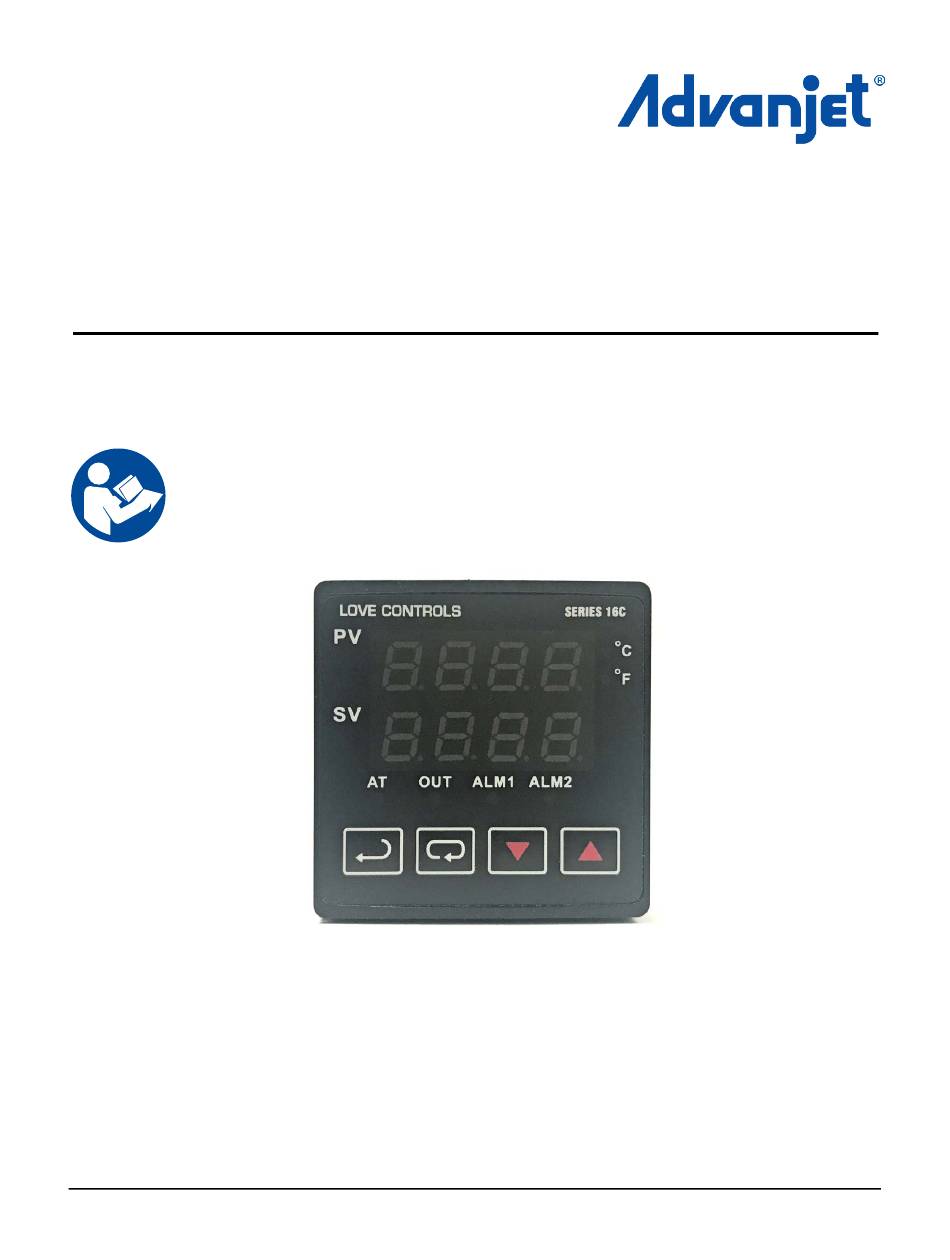

- Page 1 Temperature Controller 3A5912A ™ Diaphragm-Jet Technology Replacement temperature controller P/N 60-2257 for the Advanjet HV-2000C, HV-2100C, and HM-2600C Jet Controller. For professional use only. Important Safety Instructions Read all warnings and instructions in this manual and all related manuals before using this equipment. Save these instructions.
-
Page 2: Table Of Contents
Manuals are available at www.graco.com. Component manuals below are in English: 3A5856 HV-2000C Jet Controller Setup and Operation 3A6226 HV-2100C Jet Controller Setup and Operation 3A6166 HM-2600C Hotmelt Jet Controller Setup and Operation Page 2 of 10 Advanjet Temperature Controller Repair 3A5912A... -
Page 3: Repair Procedure
ELECTRIC SHOCK HAZARD Improper setup, usage, or grounding of the system can cause electric shock. • Turn off power and disconnect power cord before removing the Advanjet controller cover. • Be sure that all power is off when disconnecting and reconnecting wires. -
Page 4: Hv-2000C
ELECTRIC SHOCK HAZARD Improper setup, usage, or grounding of the system can cause electric shock. • Turn off power and disconnect power cord before removing the Advanjet controller cover. • Be sure that all power is off when disconnecting and reconnecting wires. -
Page 5: Hv-2000C Jet Temperature Controller Settings
HV-2000C Jet Temperature Controller Settings After installing the new temperature controller, the manufacturer’s default settings must be changed to the following settings. These are the values required to use the Advanjet HV-2000C controller and the HV-2000 Jet nozzle plate for the majority of applications. -
Page 6: Hv-2100C
ELECTRIC SHOCK HAZARD Improper setup, usage, or grounding of the system can cause electric shock. • Turn off power and disconnect power cord before removing the Advanjet controller cover. • Be sure that all power is off when disconnecting and reconnecting wires. -
Page 7: Hv-2100C Jet Temperature Controller Settings
HV-2100C Jet Temperature Controller Settings After installing the new temperature controller, the manufacturer’s default settings must be changed to the following settings. These are the values required to use the Advanjet HV-2100C controller and the HV-2100 Jet nozzle plate for the majority of applications. -
Page 8: Hm-2600C
ELECTRIC SHOCK HAZARD Improper setup, usage, or grounding of the system can cause electric shock. • Turn off power and disconnect power cord before removing the Advanjet controller cover. • Be sure that all power is off when disconnecting and reconnecting wires. -
Page 9: Hm-2600C Jet And Fluid Temperature Controller Settings
After installing the new temperature controller, the manufacturer’s default settings must be changed to the following settings. These are the values required to use the Advanjet HM-2600C controller and the HM-2600 Hotmelt Jet nozzle plate and fluid heater for the majority of applications. -
Page 10: Graco Standard Warranty
Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées. Graco Information For the latest information about Advanjet products, visit www.advanjet.com. For patent information, see www.graco.com/patents.
